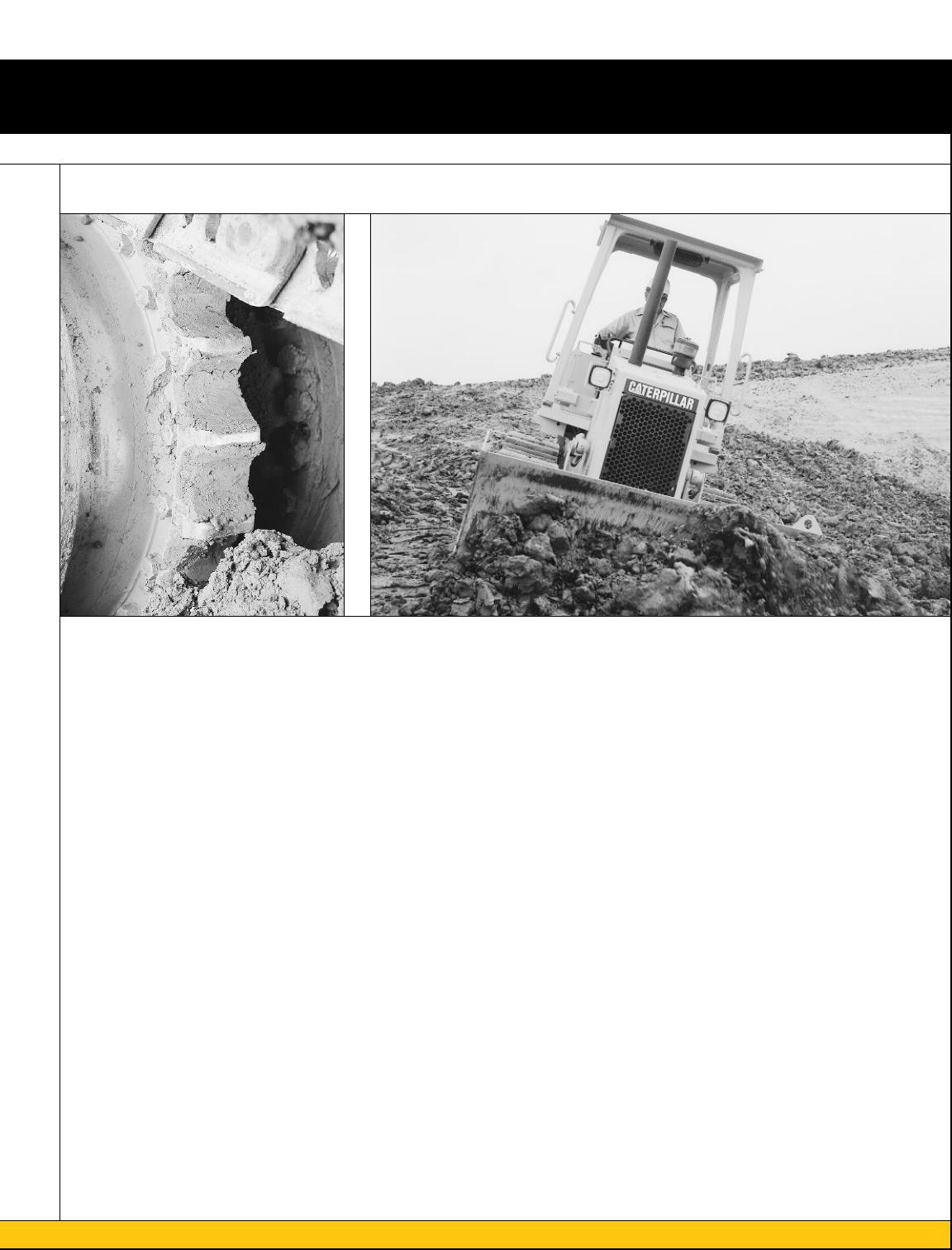

Packing

During operation, materials can

stick to and pack between mating

components such as rollers, links,

sprocket teeth, and bushings. Packing

prevents parts from engaging

correctly. This can cause higher loads

and increased wear rates. Packing is

inevitable in many applications;

however, there are things you can

do to reduce the effects of packing.

• Use center punched shoes in certain

situations to help relieve extrudable

materials such as wet sand, clay,

or snow.

• Clean out your undercarriage as

often as possible. Garbage, twigs,

stones, and demolition debris

cannot be extruded through the

center punched shoes.

• Use roller guards only when

necessary because they may trap

debris and increase the effects of

packing. They are designed

primarily for use in high-impact

underfoot conditions.

Terrain

Most of the time you can’t control the

terrain you are working in. However,

it is important to understand how

contours and slopes affect

undercarriage wear.

Working uphill shifts the weight and

load balance to the rear, causing

higher wear on rear rollers and

increasing forward drive side sprocket

and bushing wear.

Working downhill shifts weight and

load balance forward causing a

relatively higher wear rate on front

track rollers and idlers.

Working on a side hill shifts the

weight and load balance to the

downhill side of the machine. This

increases the wear rate on the

components and parts on the sides

that are on the upper side of the hill.

Working on a crown shifts the load

to the inboard components, increasing

wear on inner links, inner roller, idler

treads, and grouser ends.

Working in a depression shifts the

load to the outboard components,

increasing wear on outer links, outer

roller, idler treads, and grouser ends.
