Track Adjustment Procedures
8
Incorrectly adjusted track can cost
you money both in accelerated
undercarriage wear and downtime.
If the track is too tight, damaging
non-productive loads are placed on
the undercarriage and its manual
components.
Tight track accelerates track wear
and reduces tractor drawbar
horsepower. Adjustment procedures
take only a few minutes and require
only one person.
When adjusting your track on any
Caterpillar machine:
1. Always adjust the track in the
working area.
2. Do not try to squeeze any packing
material from in between the track.
3. Never loosen the relief valve
more than one turn. Grease and oil
are under extreme pressure and can
penetrate the body, causing serious
injury.

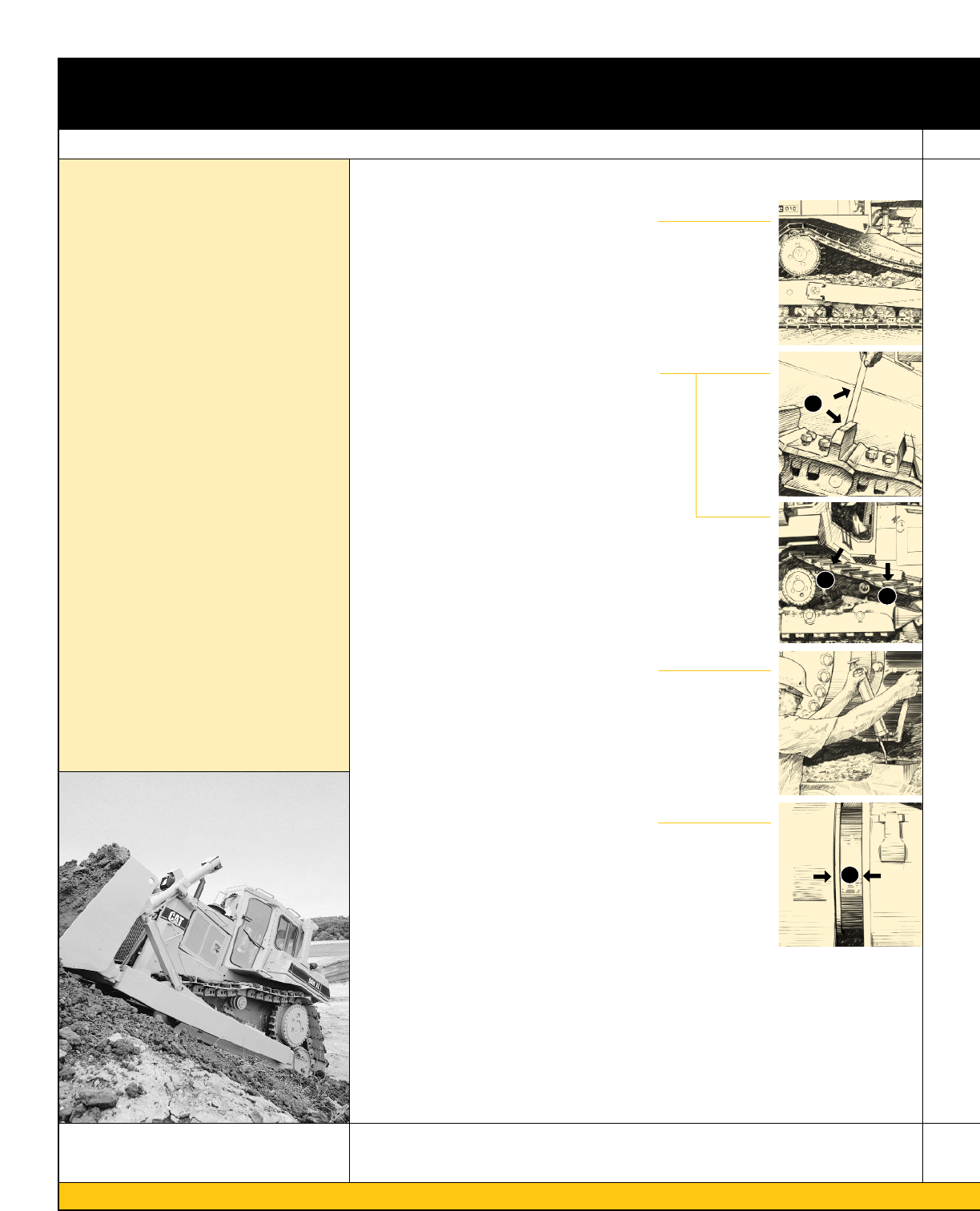

Elevated Sprocket Tractors
1.
Move the tractor forward and let it
coast to a stop without applying the
brakes. Make sure slack is between
the sprocket and front idler. Then park
the machine and turn off the engine.
Place a tight line over the grouser tips
from the sprocket to the front idler.
2.
For machines without carrier rollers,
measure the distance “A” from the
line to the grouser tip at the lowest
point of sag. Refer to Chart 1 (page 9)
to determine the correct sag for each
model.
For machines with carrier rollers,
measure the distance from the line to
the grouser tips in two places: at the
lowest point of sag between the front
idler and carrier roller “A” and
between the carrier roller and
sprocket “B.” Then average the
two measurements.
Refer to Chart 2 to determine the
correct sag for your model.
3.
If your track requires adjustment,
locate the hydraulic fill and relief
valve in the rear roller frame, and
remove the inspection cover.
Using a manual grease gun, add
grease at the adjustment mechanism to
tighten the track. To loosen the track,
open the relief valve and allow grease
to escape. Then close the relief valve.
4.
Operate the machine in forward and
reverse, then re-measure track tension.
To avoid damage to internal roller
frame components, do not allow the
length of the exposed tube “B” to
exceed the dimensions listed in
Chart 3.
