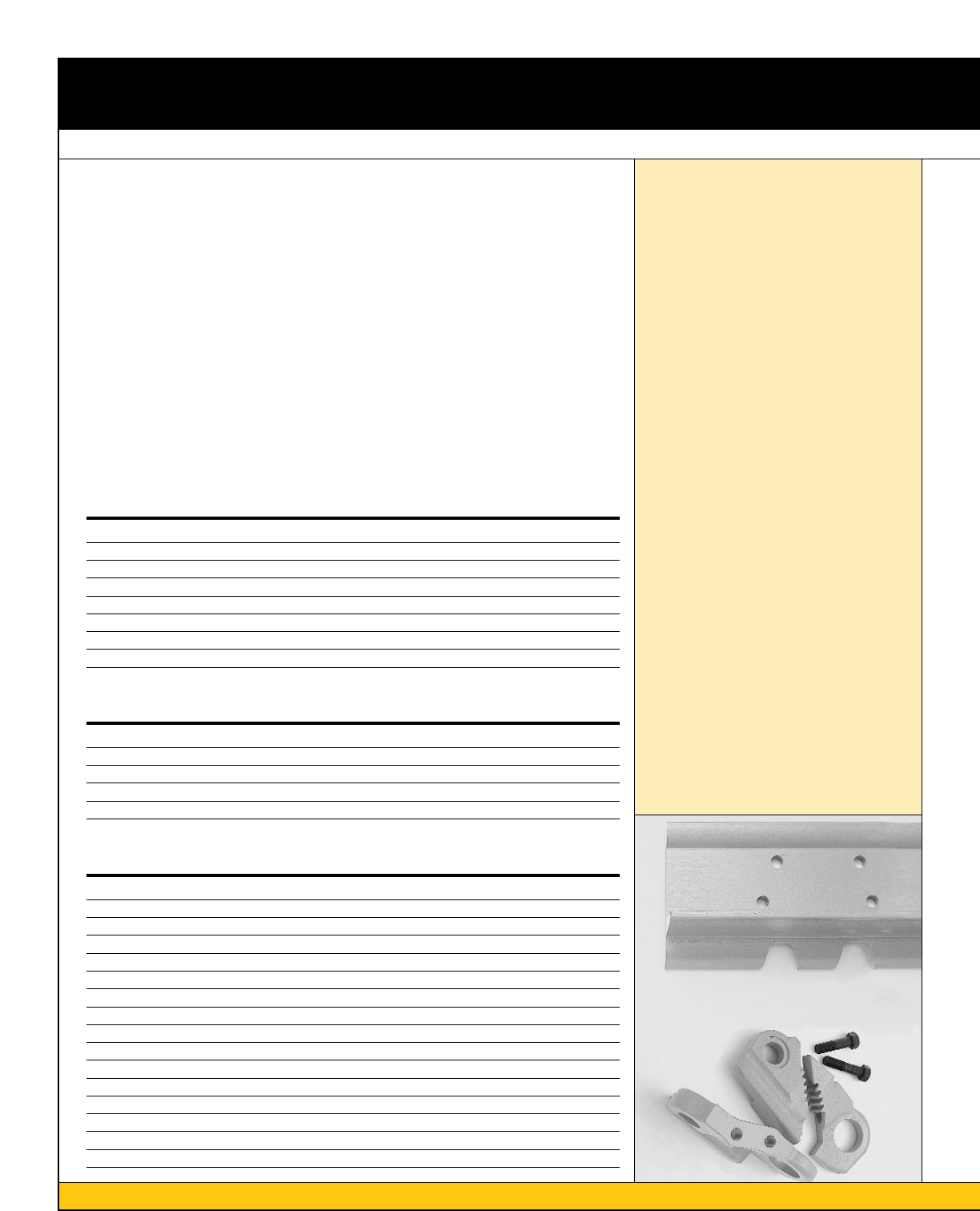

Cat Undercarriage Management Guide Page 14

Management Guide
Hardware Requirements
14
Elevated Sprocket Track – Initial Torque for fastening shoes and split master links
Track Size Bolt Size Initial Torque
D5N, D5M, D5H, D4H 5/8" 130 ± 30 lb ft (175 ± 40 N·m)
D7H, D6R, D6N, D6M, D6H, 527, 517 3/4" 300 ± 50 lb ft (400 ± 70 N·m)
D7R,D7H 7/8" 250 ± 50 lb ft (340 ± 70 N·m)
D8T, D8R, D8N, D8L 7/8" 480 ± 50 lb ft (650 ± 70 N·m)
D9T, D9R. D9N, D9L 1" 650 ± 50 lb ft (870 ± 70 N·m)
D9H 1" 300 ± 50 lb ft (400 ± 70 N·m)
D10T, D10R, D10N, D10 1-1/8" 650 ± 50 lb ft (870 ± 70 N·m)
D11R, D11N 1-3/8" 1100 ± 110 lb ft (1500 ± 150 N·m)
Low Sprocket Track – Initial Torque for fastening shoes and split master links
Model Bolt Size Initial Torque
D4G, D4C, D3G, D3C, D3, 931, 935 9/16" 65 ± 15 lb ft (90 ± 20 N·m)
D5G, D5C, D5, D4, 953, 943, 941, 939 5/8" 130 ± 30 lb ft (175 ± 40 N·m)
D6, D7, 977, 973, 963, 955 3/4" 220 ± 40 lb ft (300 ± 50 N·m)
D8, 983, 973 7/8" 250 ± 50 lb ft (340 ± 70 N·m)
D9 1" 400 ± 50 lb ft (540 ± 70 N·m)
Excavator/Front Shovel Track – Initial Torque for fastening shoes
Model Bolt Size Initial Torque
225, 215, 213, 211, 205 5/8" 130 ± 30 lb ft (175 ± 40 N·m)
235, 231, 229, 225, FB227 3/4" 220 ± 40 lb ft (300 ± 50 N·m)
235 7/8" 250 ± 50 lb ft (340 ± 70 N·m)
245 1" 400 ± 50 lb ft (540 ± 70 N·m)
307 1/2" 165 ± 15 lb ft (220 ± 20 N·m)
307, 308 14 mm 185 ± 18 lb ft (245 ± 25 N·m)
311, 312, 313, 314 16 mm 130 ± 30 lb ft (175 ± 40 N·m)
315, 317, 318, 319, 320, 320S, 321, 322, 325 20 mm 300 ± 50 lb ft (400 ± 70 N·m)
350 1" 370 ± 50 lb ft (500 ± 70 N·m)
330 22 mm 370 ± 50 lb ft (500 ± 70 N·m)
345 24 mm 370 ± 50 lb ft (500 ± 70 N·m)
365 27 mm 400 ± 50 lb ft (540 ± 70 N·m)
385. 5090 30 mm 675 ± 70 lb ft (990 ± 100 N·m)
5080, 375 27 mm 400 ± 50 lb ft (540 ± 70 N·m)
5130 1-3/8" 1100 ± 110 lb ft (1500 ± 150 N·m)
5110 1-1/8" 650 ± 50 lb ft (870 ± 70 N·m)
Shoe and Link
The number one cause of shoe
loosening is improperly tightened shoe
hardware. In general, track hardware
should be checked and tightened as
required after 50-100 hours of
operation following installation.
Use the following procedure to
tighten your track bolts.
1. Lubricate the bolt threads and bolt
washer faces with 5P3931 Anti-seize
Compound.
2. Install Self-Locking Track Nuts with
the rounded corners against the link.
3. Tighten the bolts to the specified
initial torque shown in the chart below.
4. Give each bolt an additional
1/3 turn.
Initial torque draws the parts together
tightly. An additional 1/3 turn gives the
bolt correct stretch for good retention.
Stretching stresses the bolt until a very
slight deformation occurs. This ensures
that the bolt's maximum clamping
force is used.
Split Master Link
The importance of correctly
assembling and torquing cannot
be overemphasized. Follow these
steps for both new and used split
master links.
1. Before installing the track,
the point of connection for the
master link must be clean and
undamaged. Remove all paint
from points of connection.
2. Use 4C5593 Thread Lubricant
or 5P3931 Anti-seize Compound
on master bolt threads.
3. Put master links together and
check alignment of holes for master
bolts. Install one master bolt in each
link. The bolts must turn easily, by
hand, in the threads.
4. Remove the bolts. Install the
master track shoe and all four
master bolts. Turn the master
bolts by hand.
5. Tighten the master bolts to the
specified initial torque shown in
the chart.
6. Give each bolt an additional 1/2
turn. Give a 1/3 turn for D6R, D6H,
D7H (S&L), D8L, D8T, D8R, D8N,
D9L, D9T, D9N, D9R, D10T, D10R,
D10N, 589, 578, 245, 235.
