Programming Cat Electronic Truck Engine Page 229

Programming
Page 228
Engine Totals
Description:
The ECM calculates and stores lifetime information.
This information includes:
• Total Engine Hours - Engine Running Hours
• Total PTO Time
• Total Idle Time
• Total Distance
• Total Fuel
• Total PTO Fuel
• Total Idle Fuel
• Total Maximum Fuel
• Average Load Factor
• Lifetime Total Engine Revolutions
• Total Time in Top Gear
• Total Time in Top Gear Minus One
• Total Fuel in Top Gear
• Total Fuel in Top Gear Minus One
• Total Distance in Top Gear
• Total Distance in Top Gear Minus One
• Fan Total Operating Hours
• Aftertreatment Regeneration Device Fan Operating
Hours
• A/C High Pressure Switch Fan Operating Hours
• Fan Override Switch Fan Operating Hours
This information is available through the service tools,
FIS and Cat Driver Information Display (Cat ID)/Cat
Messenger.
If an ECM needs to be replaced, the Current Totals can
be programmed into the replacement ECM.

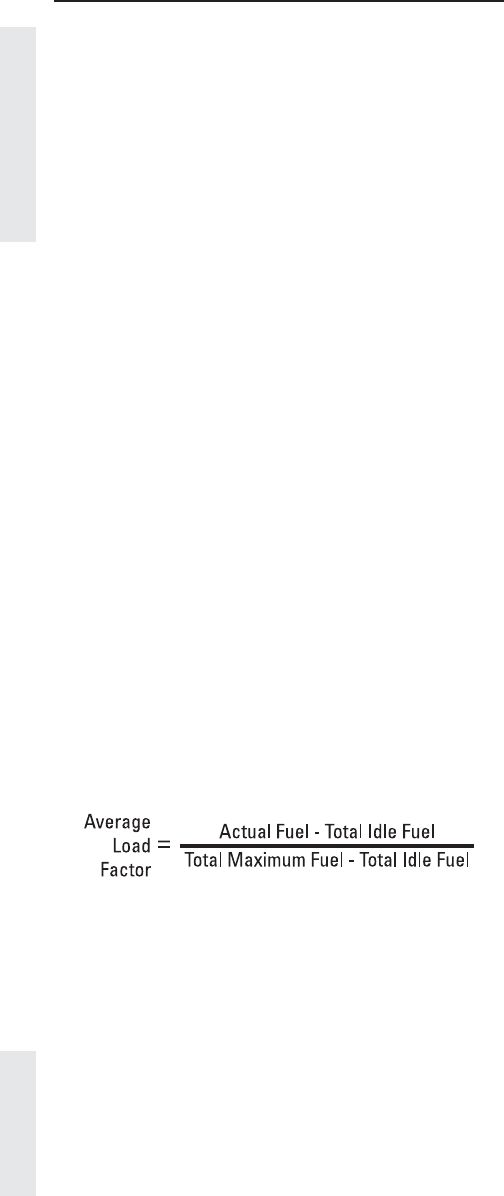

Average Load Factor is calculated using Actual Fuel
Used, Total Maximum Fuel and Total Idle Fuel.
Available:
All electronically controlled on-highway engines
covered in this handbook
