CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 116

Operation and Maintenance Manual

Page of 331

/ 331

meter should be used to determine service

hour maintenance intervals.

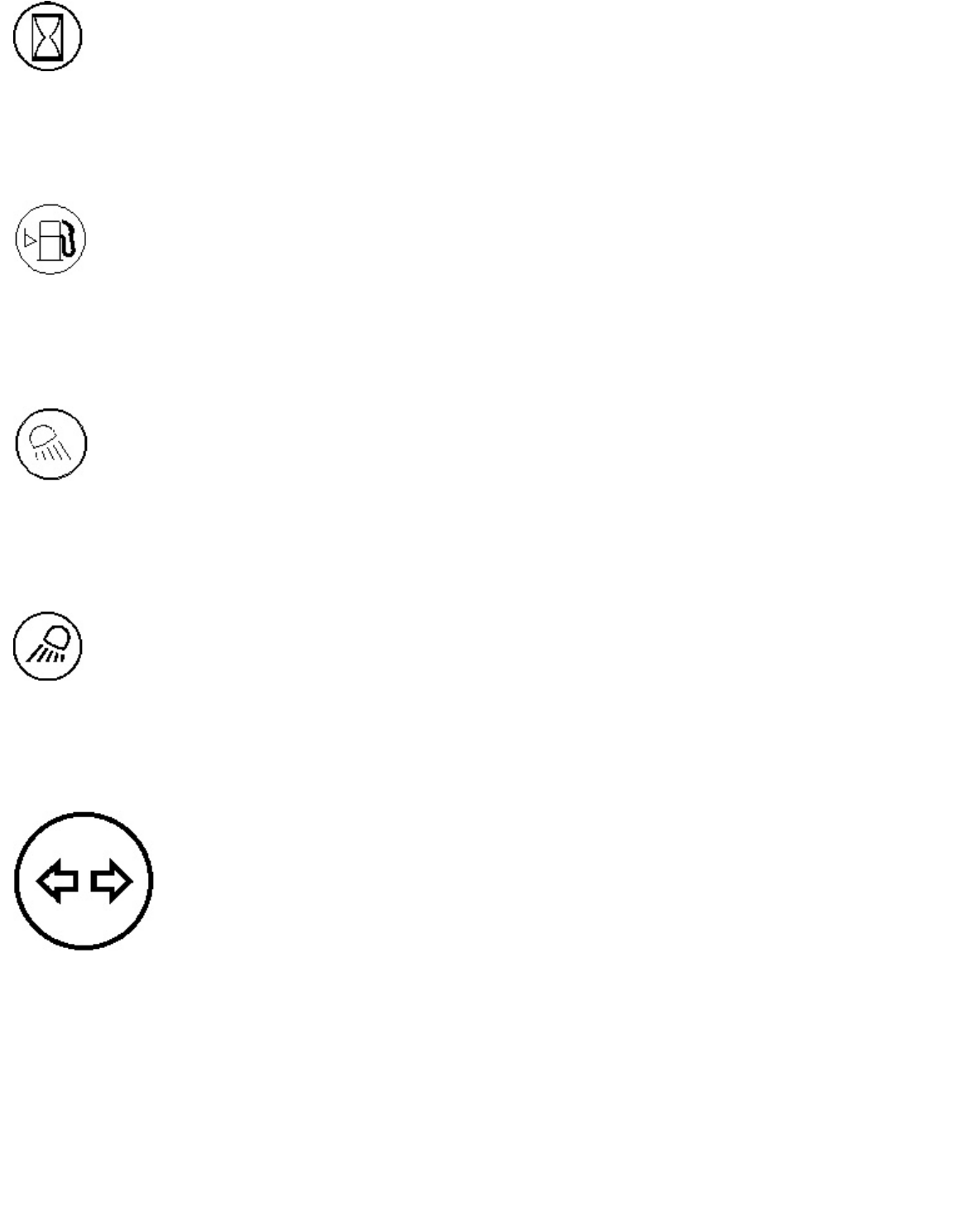

Fuel Level Gauge (14)

Fuel Level Gauge - The needle in the

yellow range indicates low fuel.

Rear Work Lights (15)

Rear Work Lights - Press the left side of

the switch in order to turn on the lights.

Press the right side of the switch in order to

turn off the lights.

Front Work Lights (16)

Front Work Lights - Press the left side of

the switch in order to turn on the lights.

Press the right side of the switch in order to

turn off the lights.

Turn Signals (17)

Turn Signals - Press on the left

side of the switch in order to turn

on the left turn signals. Press on the

right side of the switch in order to

turn on the right turn signals. Move

the switch to the middle position in

order to turn off the turn signals.

Engine Start Switch (18)

OFF - Insert the engine start switch key

only from the OFF position and remove the

engine start switch key only from the OFF

position. Turn the engine start switch key to

the OFF position in order to stop the engine.

In the OFF position, there is no power to

most electrical circuits on the machine. The

115
