CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 74

Operation and Maintenance Manual

Page of 331

/ 331

236B, 246B and 248B (A)

2312 mm (7.6 ft) 2312 mm (7.6 ft)

252B, 262B and 268B (A)

2399 mm (7.9 ft) 2399 mm (7.9 ft)

( 1 )

The rated capacity is calculated with a full bucket of dirt. Grasping objects with the grapple will lower the rated capacity.

( 2 )

Machines that are equipped with High Flow Hydraulics

Rated Loads for Forks

Failure to comply to the rated load can cause possible

personal injury or property damage. Review the rated load

of a particular work tool before performing any operation.

Make adjustments to the rated load as necessary for non-

standard configurations.

Note: Rated loads should be used as a guide. Attachments, uneven ground conditions, soft ground

conditions, or poor ground conditions have effects on rated loads. The operator is responsible for being

aware of these effects.

The rated operating capacity is defined by SAE J1197 FEB 91 and EN474. The rated operating capacity is

the least amount of weight of the following conditions:

50% of the full static tipping load on a hard, smooth, level surface

The minimum lifting capacity

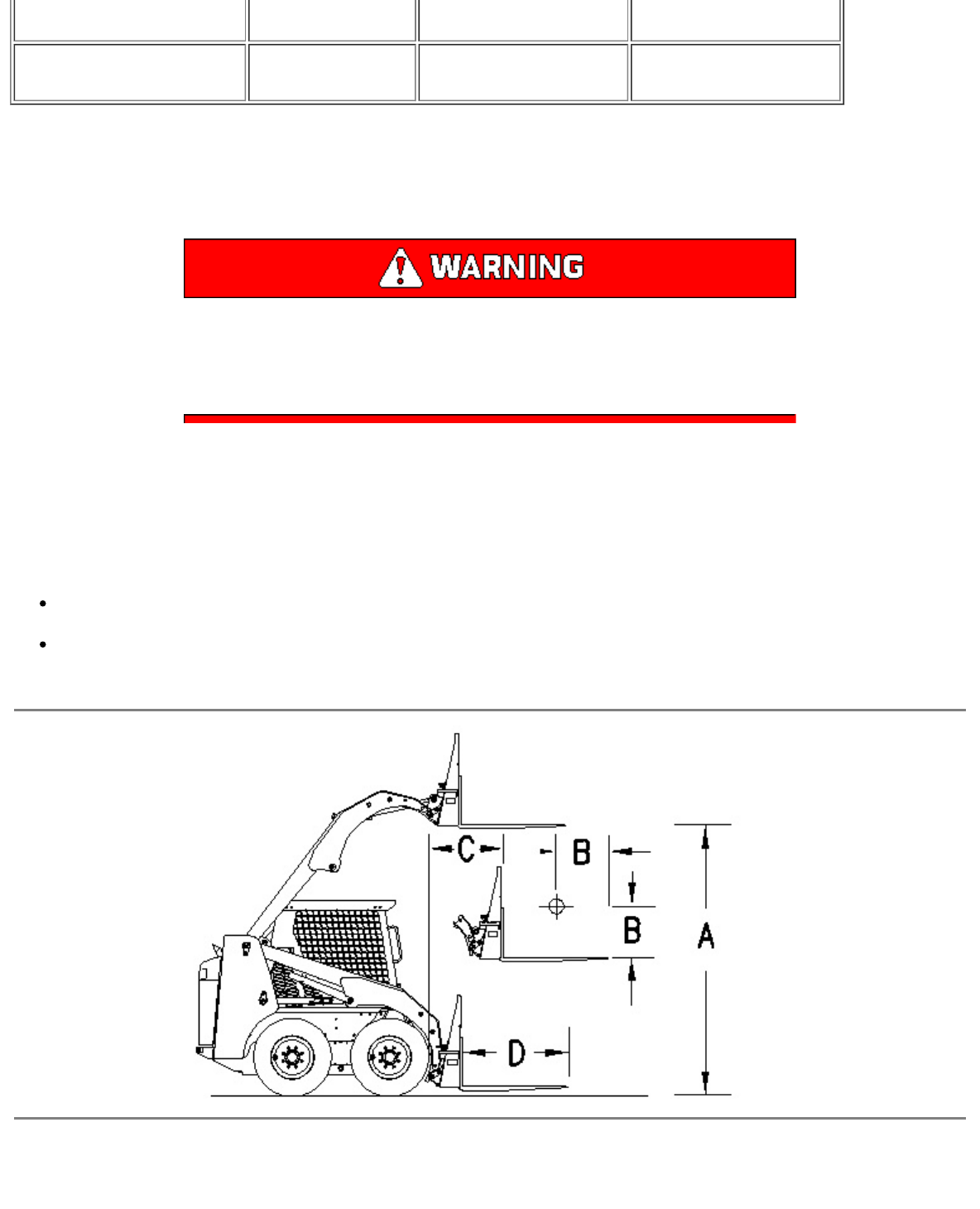

Illustration 2 g00656802

Dimension (A) represents the maximum fork height. Dimension (B) represents the load center. Dimension (C) represents the reach.

Dimension (D) represents the fork tine length.
