CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 145

Operation and Maintenance Manual

Page of 331

/ 331

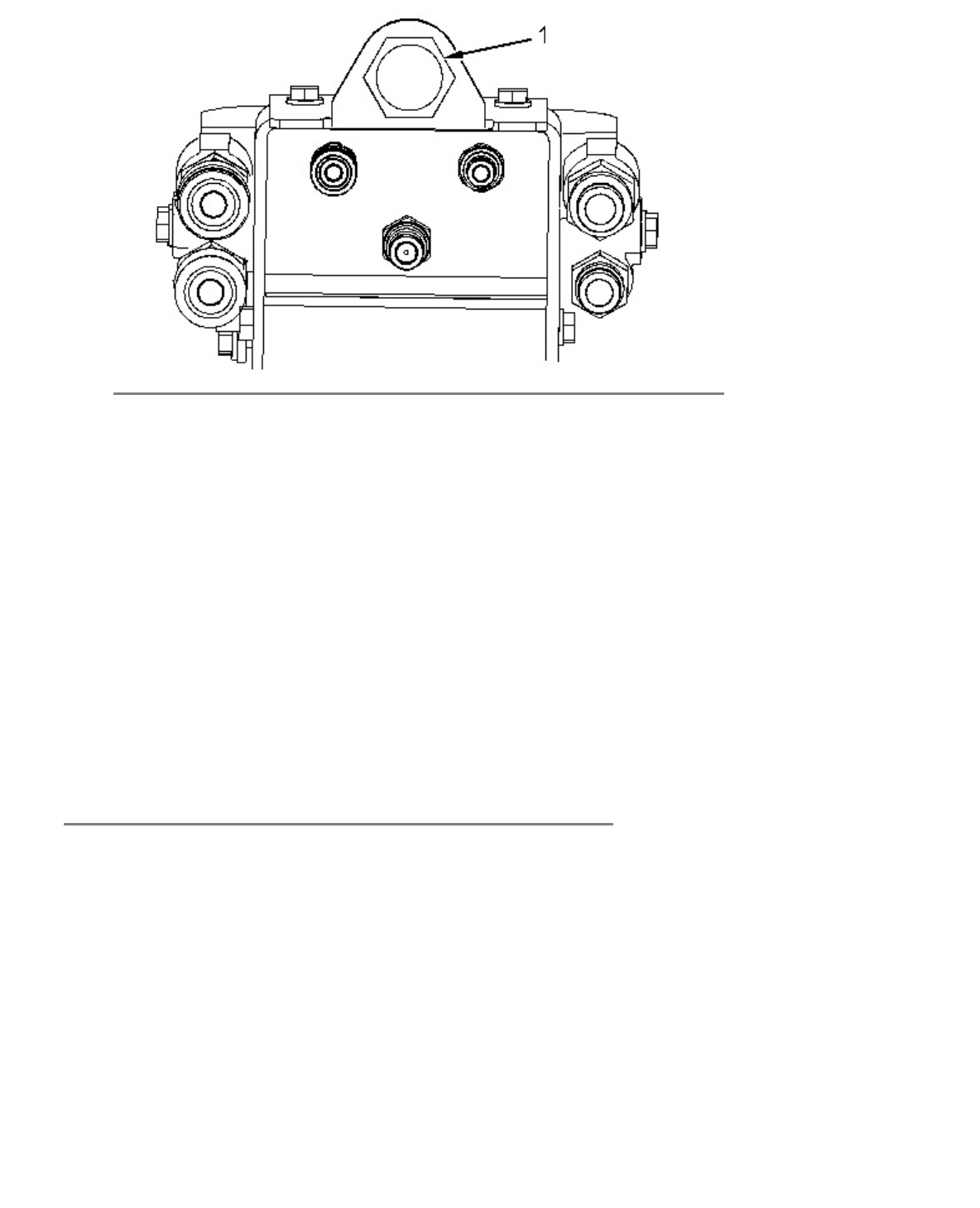

Illustration 7 g01109580

248B, 268B, and 287B with High Flow option

d. If the work tool is equipped with electrical lines, then route the electrical lines with the hydraulic

hoses and connect the wire harness to the electrical connector (1) on the host machine. Check

the connections in order to ensure that the connections are properly secured. Check the

connections on the work tool in order to ensure that the connections are in the correct

receptacle.

Note: If your High Flow work tool does not have a wiring harness, a Jumper Plug needs to be

installed on the electrical plug (1) for the work tool control. Without this Jumper Plug, the

machine will not provide high flow to the work tool. Please refer to your Parts Manual for the

current part number for the Jumper Plug.

e. If the work tool is equipped with a water line, then connect the water line from the work tool to

the connector on the machine. Move the water line to a position that is away from the work tool

mounting bracket.

144
