CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 273

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i02509334

Fuel System Priming Pump - Operate

SMCS - 1258-548

3024 Engine

The fuel priming pump is located on top of the fuel filter/water separator.

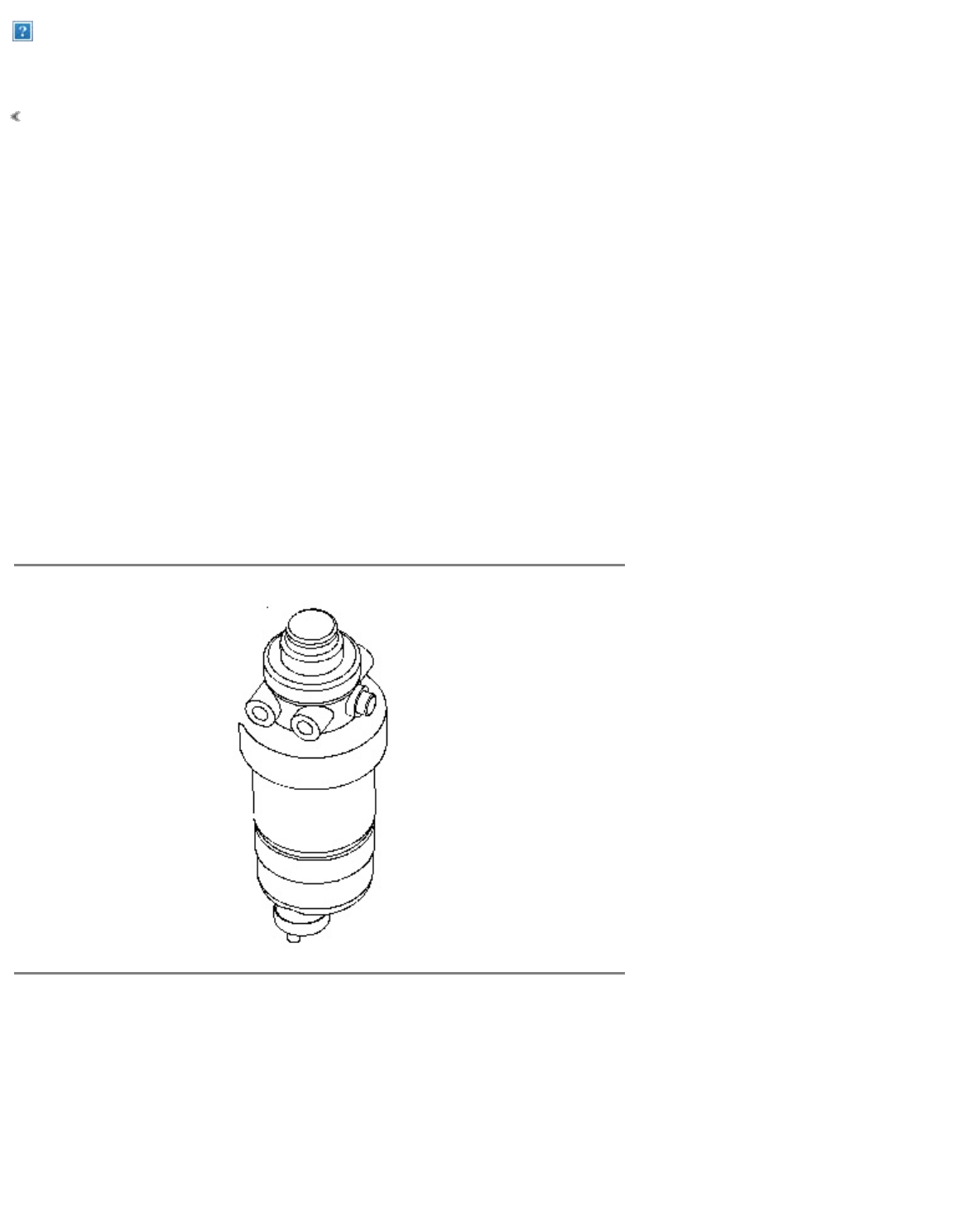

Illustration 1 g01019689

1. Open the engine access door. Refer to Operation and Maintenance Manual, "Access Doors and

Covers".

2. Push down on the top of the fuel priming pump plunger and release the fuel priming pump plunger in

order to operate the fuel priming pump. Operate the fuel priming pump plunger in order to fill the

new filter element with fuel. Continue to pump until increased resistance is felt. This resistance will

indicate that the filter element is full of fuel.

Shutdown SIS

Previous Screen

272
