CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 39

Operation and Maintenance Manual

Page of 331

/ 331

Keep wiring and electrical connections free of debris.

Lines, Tubes and Hoses

Do not bend high pressure lines. Do not strike high pressure lines. Do not install any lines that are bent or

damaged. Use the appropriate backup wrenches in order to tighten all connections to the recommended

torque.

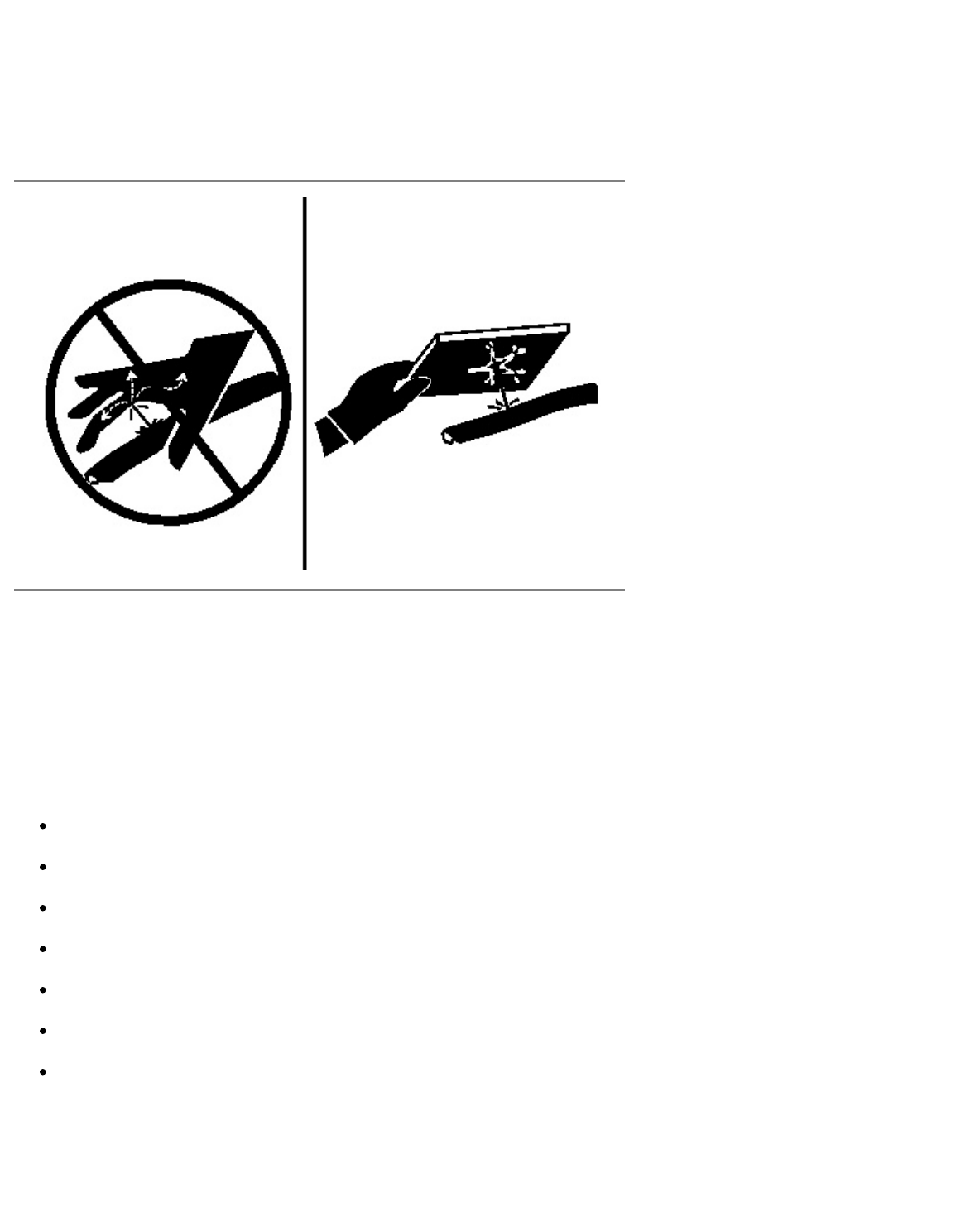

Illustration 4 g00687600

Check lines, tubes and hoses carefully. Wear Personal Protection Equipment (PPE) in order to check for

leaks. Always use a board or cardboard when you check for a leak. Leaking fluid that is under pressure can

penetrate body tissue. Fluid penetration can cause serious injury and possible death. A pin hole leak can

cause severe injury. If fluid is injected into your skin, you must get treatment immediately. Seek treatment

from a doctor that is familiar with this type of injury.

Replace the affected parts if any of the following conditions are present:

End fittings are damaged or leaking.

Outer coverings are chafed or cut.

Wires are exposed.

Outer coverings are swelling or ballooning.

Flexible parts of the hoses are kinked.

Outer covers have exposed embedded armoring.

End fittings are displaced.

Make sure that all clamps, guards, and heat shields are installed correctly. During machine operation, this

will help to prevent vibration, rubbing against other parts, excessive heat, and failure of lines, tubes and

hoses.

Do not operate a machine when a fire hazard exists. Repair any lines that are corroded, loose or damaged.
