CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 151

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01964204

Material Handling Arm Operation

SMCS - 6542; 6700; 7000

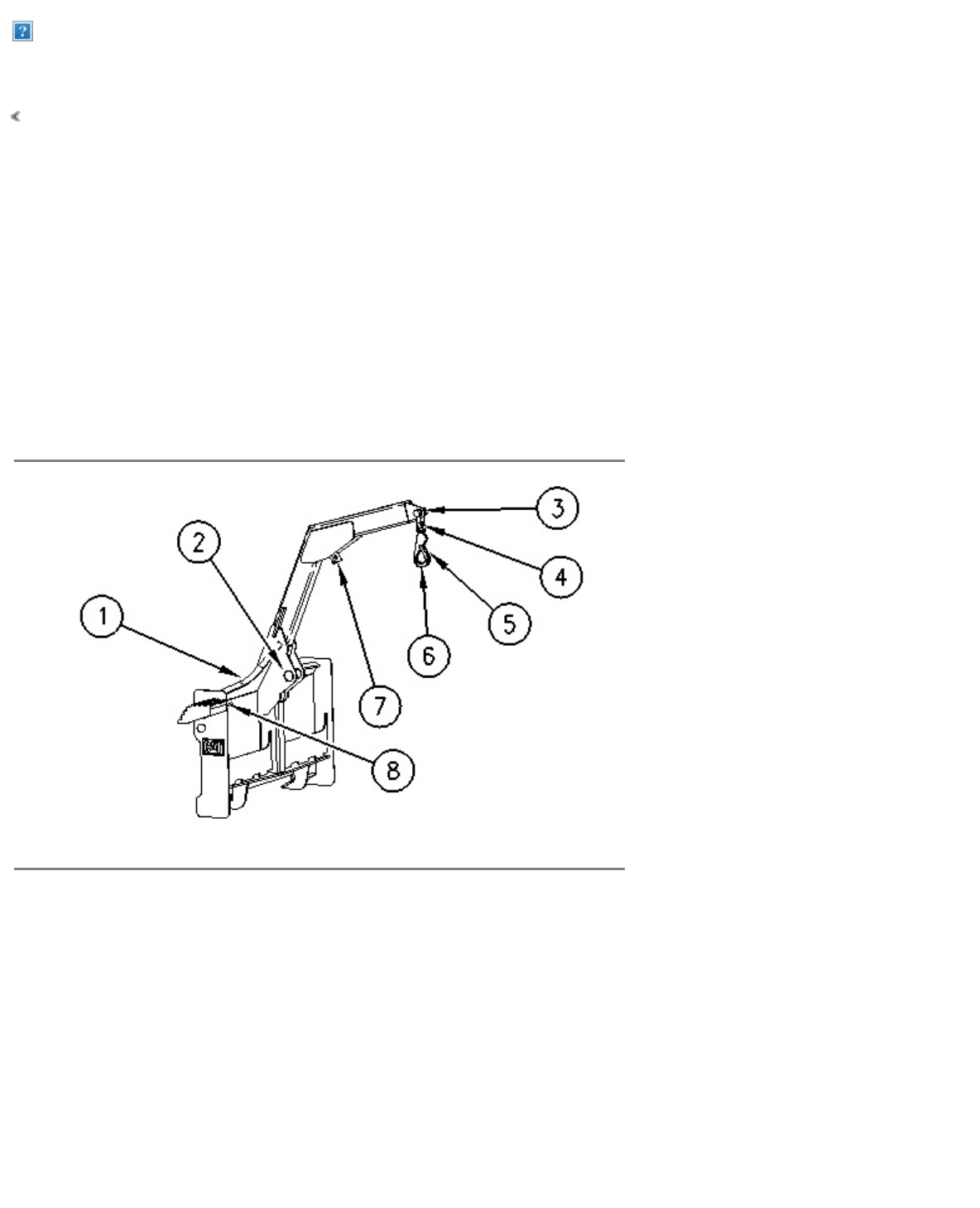

Illustration 1 g00674640

(1) Location of Optional Center Step

(2) Tie-Down Point

(3) Lifting Point 2

(4) Shackle

(5) Hook Clasp

(6) Hook

(7) Lifting Point 1

(8) Stored location of Position Lock Pin

Shutdown SIS
