Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 150

OPERATORS MANUAL
TM 5-3805-261-10

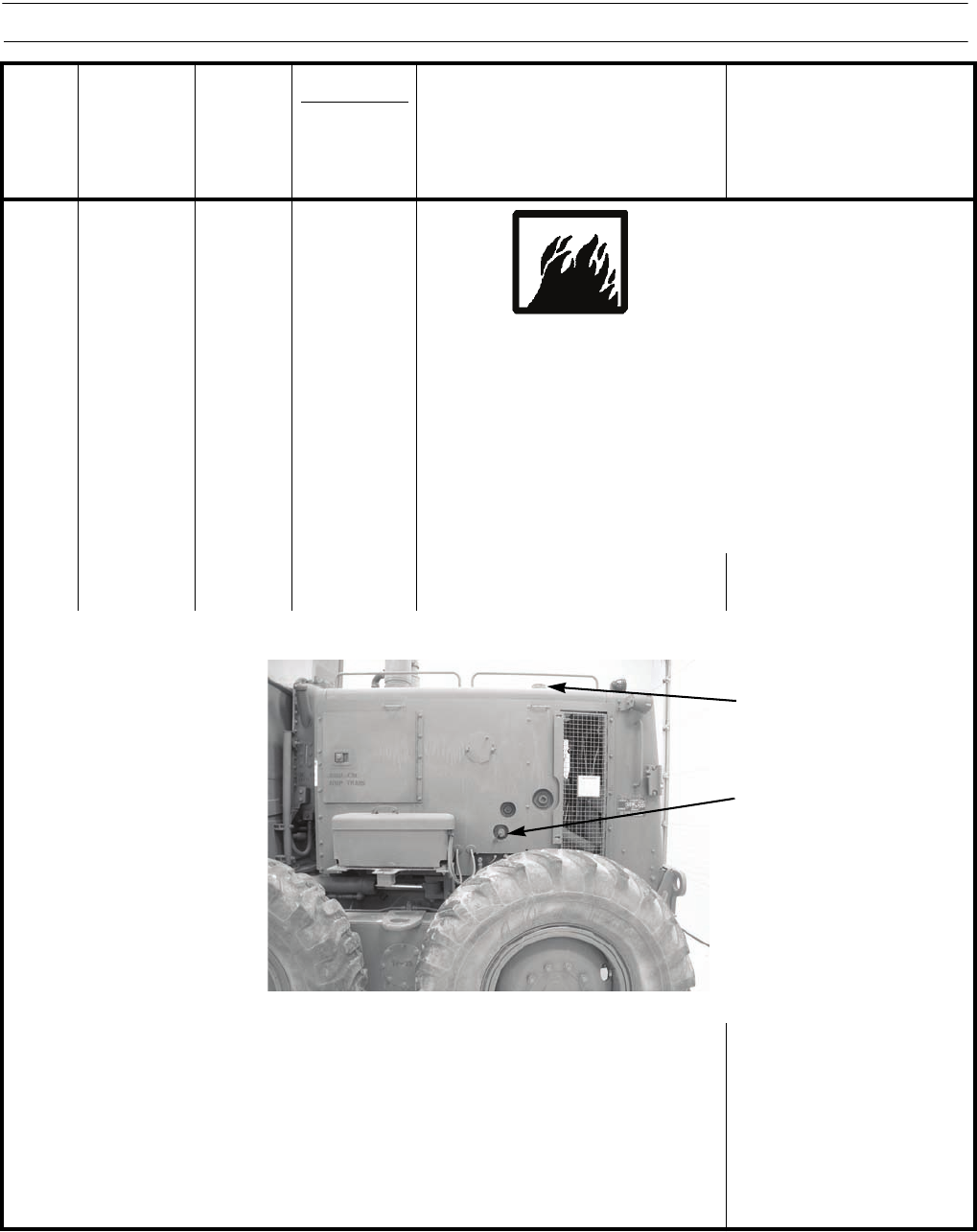

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-6
11 Before Fuel Tank
Filler Cap
WARNING
• DO NOT smoke or permit any open flame in area of machine
while you are servicing fuel system. Be sure hose nozzle is
grounded against filler tube during refueling to prevent static
electricity. Failure to follow this warning may cause injury to
personnel or equipment damage.
• Operating personnel must wear fuel-resistant gloves when
handling fuels. If exposed to fuel, promptly wash exposed
skin and change fuel-soaked clothing.
Ensure fuel level dipstick, screen and
filler cap are present and secure.
Missing fuel tank filler cap.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
SLAVE
397-1034
FUEL TANK
FILLER CAP
RECEPTACLE
