Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 195

OPERATORS MANUAL
TM 5-3805-261-10
0015 00-1

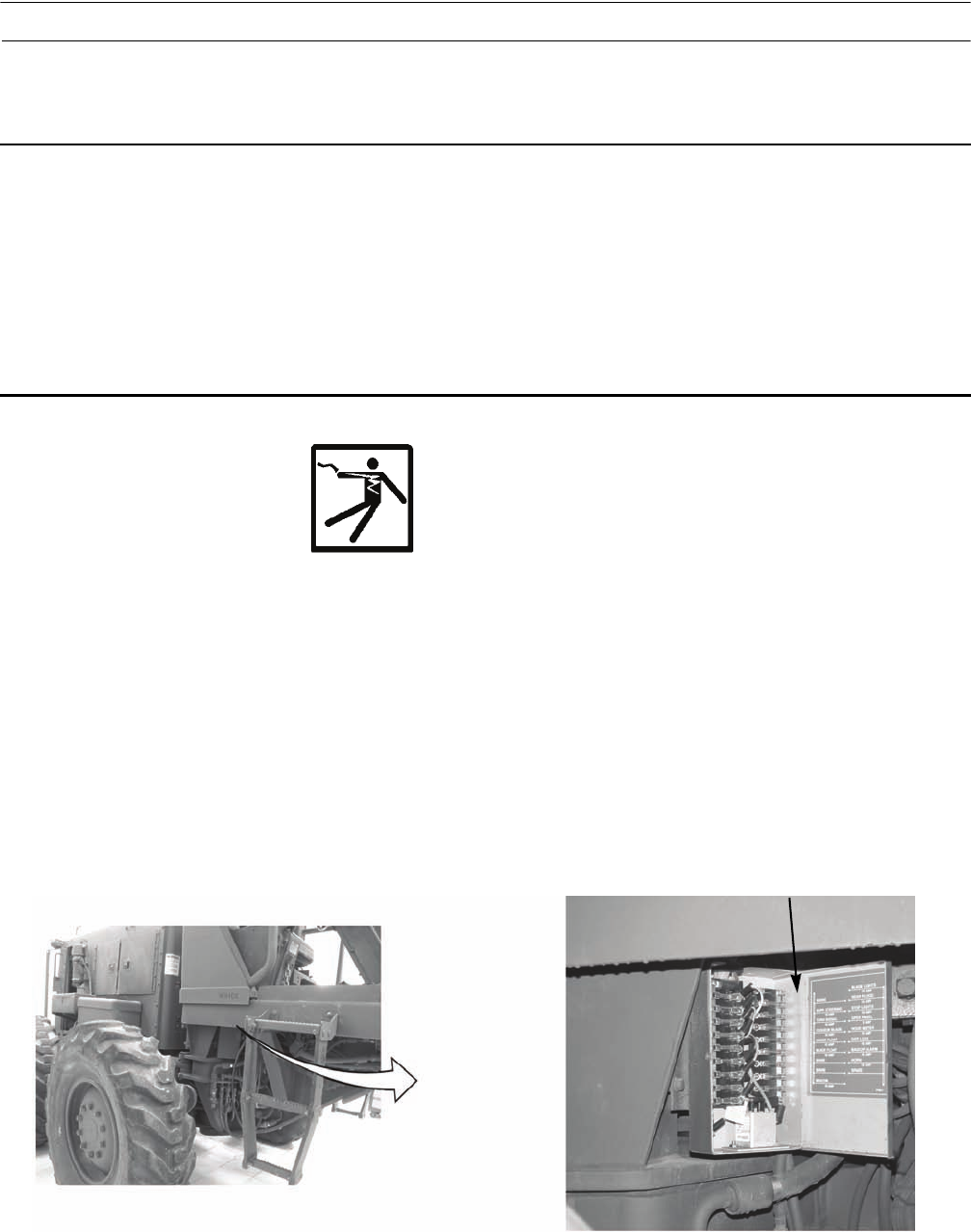

FUSE REPLACEMENT 0015 00
THIS WORK PACKAGE COVERS
Removal, Installation
INITIAL SETUP
Materials/Parts
Fuse
Equipment Conditions
Machine parked on level ground
Equipment Conditions - Continued
Machine parked on level ground
Parking/emergency brake applied (WP 0004 00)
Implements lowered to ground (WP 0004 00)
Battery disconnect switch in OFF position (WP
0004 00)
WARNING
Ensure battery disconnect switch is in the OFF position before working in fuse panel. Failure to follow this
warning may result in injury.
REMOVAL
1. Open fuse panel cover.
NOTE
Visually check all fuses. Replace fuse if it has any of the following:
a. Discolored glass tube
b. Broken filament
c. Broken or cracked glass tube
2. Remove fuse from fuse box.
3. Contact Unit Maintenance for replacement fuse.
FUSE BOX
397-1063
