Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 37

OPERATORS MANUAL
TM 5-3805-261-10
0004 00-1
DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS 0004 00
GENERAL
Do not attempt to operate the grader until becoming familiar with the location and use of all controls and indicators.
This work package describes all operator controls and indicators.

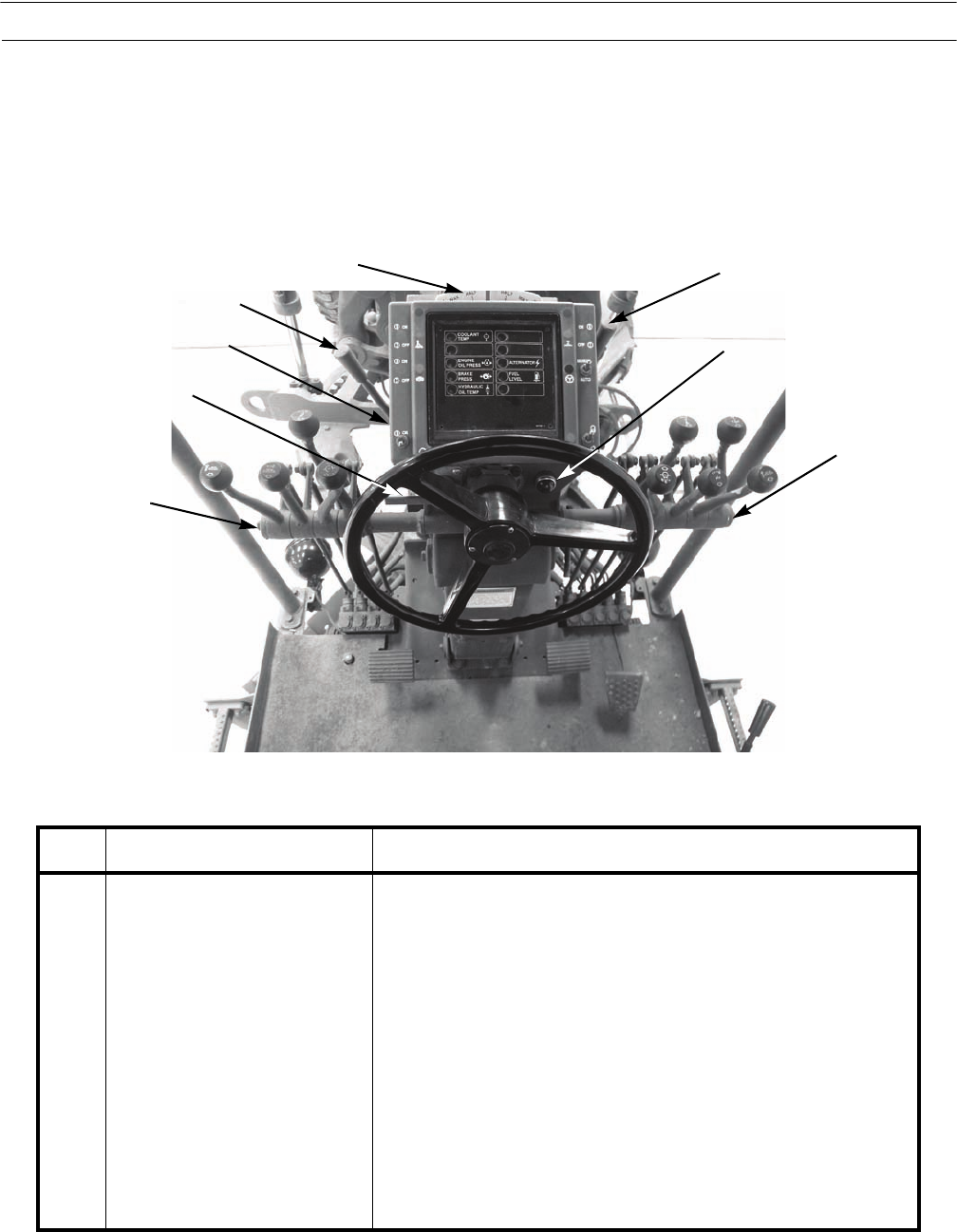

OPERATOR CONTROLS AND INDICATORS 0004 00
KEY CONTROL OR INDICATOR FUNCTION
1 Left Side Earth Moving Controls Set of controls for earth moving equipment.
2 Turn Signal/Hazard Lever Raise lever for right turn signal. Lower lever for left turn signal. Place
lever in center position to turn off. Pull lever to turn on hazard flashers.
3 Electronic Monitoring System
(EMS) Panel
Contains malfunction warning indicators for systems on the machine.
4 Steering Console Adjustment
Lever
Pull lever to release steering console to allow adjustment.
5 Articulation Indicator Indicates articulation angle.
6 EMS Fault Light Flashes when an EMS fault is present.
7 Right Side Earth Moving
Controls
Set of controls for earth moving equipment.
4
6
5
4
3
2
1
7
397-929
