Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 169

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-25
RIGHT
SIDE AND
FRONT
69 After Right Rear
Wheels and
Tires
a. Visually check tire for cuts or
bulges in tread or sidewall area.
Check for uneven wear or underin-
flation. Look for foreign material
embedded in tread or sidewall area.
Remove foreign material if found.
Tire has cuts or bulges in tread
or sidewall area or other dam-
age that would impair opera-
tion.
b. Check for loose or missing lug
nuts, and valve stem with cap.
Damaged valve stem or miss-
ing two or more lug nuts.
70 After Right
Tande m
Housing
Check for damage and leaks from
right side tandem housing.
Class III oil leak or damage is
evident.
71 After Air Dryer
(if Equipped)
Check air dryer for damage or signs of
leakage.
Damage that would impair
operation is evident.
72 After Drain Fuel
Water
Separator
(if Equipped)
NOTE
Notify Unit Maintenance if fuel does not turn clear.
Open fuel water separator valve
behind right side engine access door.
Drain fuel into approved container to
remove water and foreign particles.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
397-1120

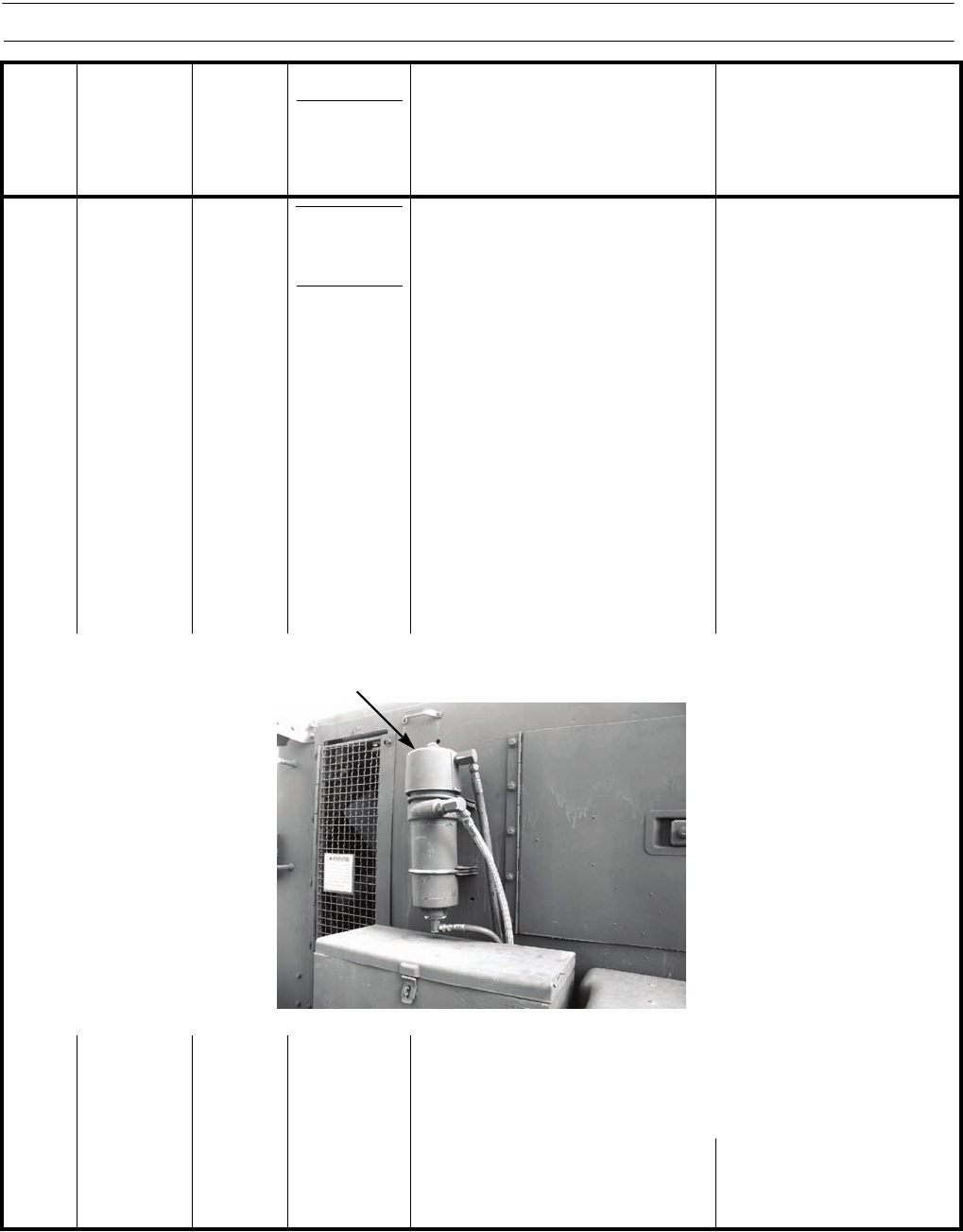

AIR DRYER (IF EQUIPPED)
