Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 43

OPERATORS MANUAL
TM 5-3805-261-10
DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS - CONTINUED 0004 00
0004 00-7

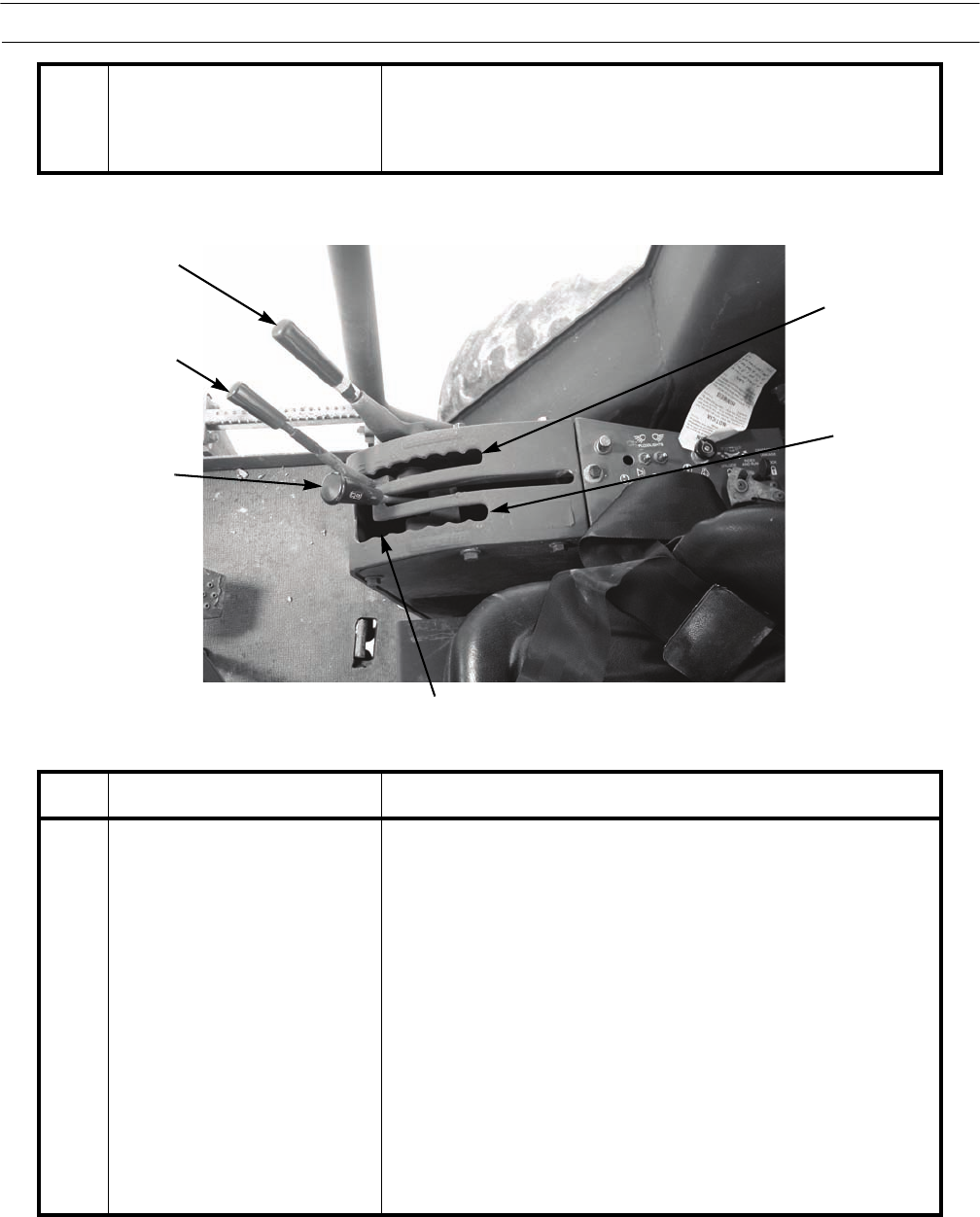

TRANSMISSION CONTROLS 0004 00
39 Right Side Blade Control Right side blade height control has three positions:
Raise: Pull lever back to raise right side of blade.
Hold: Center position holds blade in set position.
Lower: Move lever forward to lower right side of blade.
KEY CONTROL OR INDICATOR FUNCTION
40 Transmission Shift Lever Allows operator to select transmission operation.
(a) N (Neutral) Position lever in N (Neutral) when starting engine and when parking
machine.
(b) Reverse Speeds
(1, 2, 3, 4, 5, 6)
Select desired reverse speed by placing lever in position 1 through 6
in the REVERSE (right) side of the shift control box.
(c) Forward Speeds
(1, 2, 3, 4, 5, 6)
Select desired forward speed by placing lever in position 1 through 6
in the FORWARD (left) side of the shift control box.
41 Governor Control Lever to set engine speed. Move forward to increase engine speed.
Move rearward to decrease engine speed. Do not use as a cruise
control.
42 Parking/Emergency Brake
Lever
Move lever forward to set the parking/emergency brake and lock the
transmission shift lever in Neutral. Move lever rearward to release
parking/emergency brake and release the gear selection lever.
41
40
42
397-932
b
c
a
