Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 184

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-40
104 Monthly Drive Belts a. Remove two bolts and open left
rear engine compartment access
door.
b. Check belts for 1/2 in. deflection
at mid-point of longest segment of
belt.
Drive belt has more than 1/2
in. deflection.
c. Check for missing, frayed, or
cracked drive belts.
Drive belt is missing or dam-
aged.
d. Check for loose or damaged drive
pulleys.
e. Close left rear engine compart-
ment access door and install two
bolts.
Pulley is loose or damaged.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:

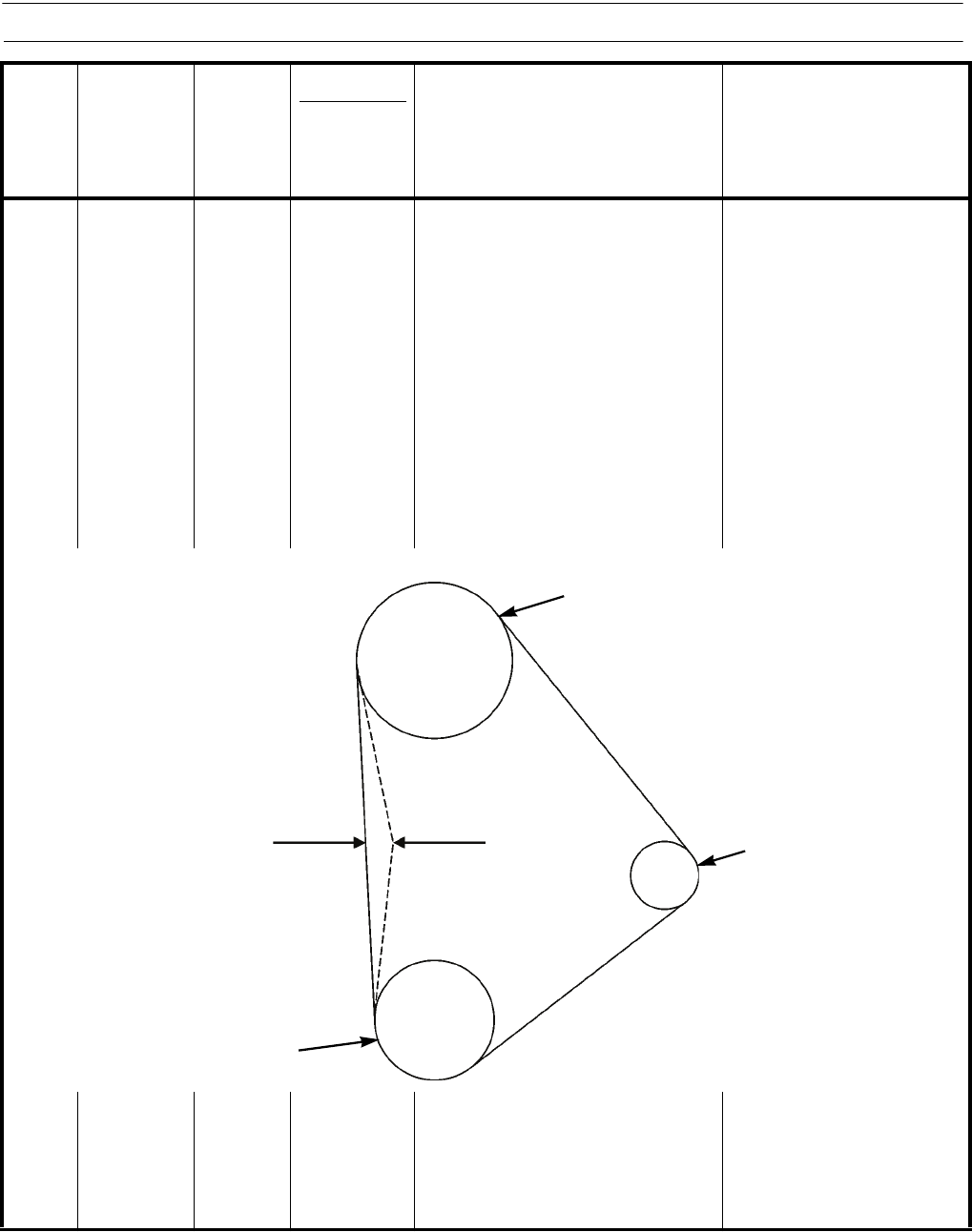

FAN PULLEY
ALTERNATOR PULLEY
TRANSMISSION PUMP PULLEY
0.5 IN. MAXIMUM
397-1098
