Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 220

OPERATORS MANUAL
TM 5-3805-261-10
SECTIONALIZATION FOR AIR TRANSPORT - CONTINUED 0019 00
0019 00-16
DISASSEMBLY - CONTINUED
WARNING
Use extreme caution when handling heavy
parts. Provide adequate support and use
assistance during procedure. Failure to fol-
low this warning may result in injury to
personnel.
NOTE
Remote control box weighs 68 lb (31 kg).

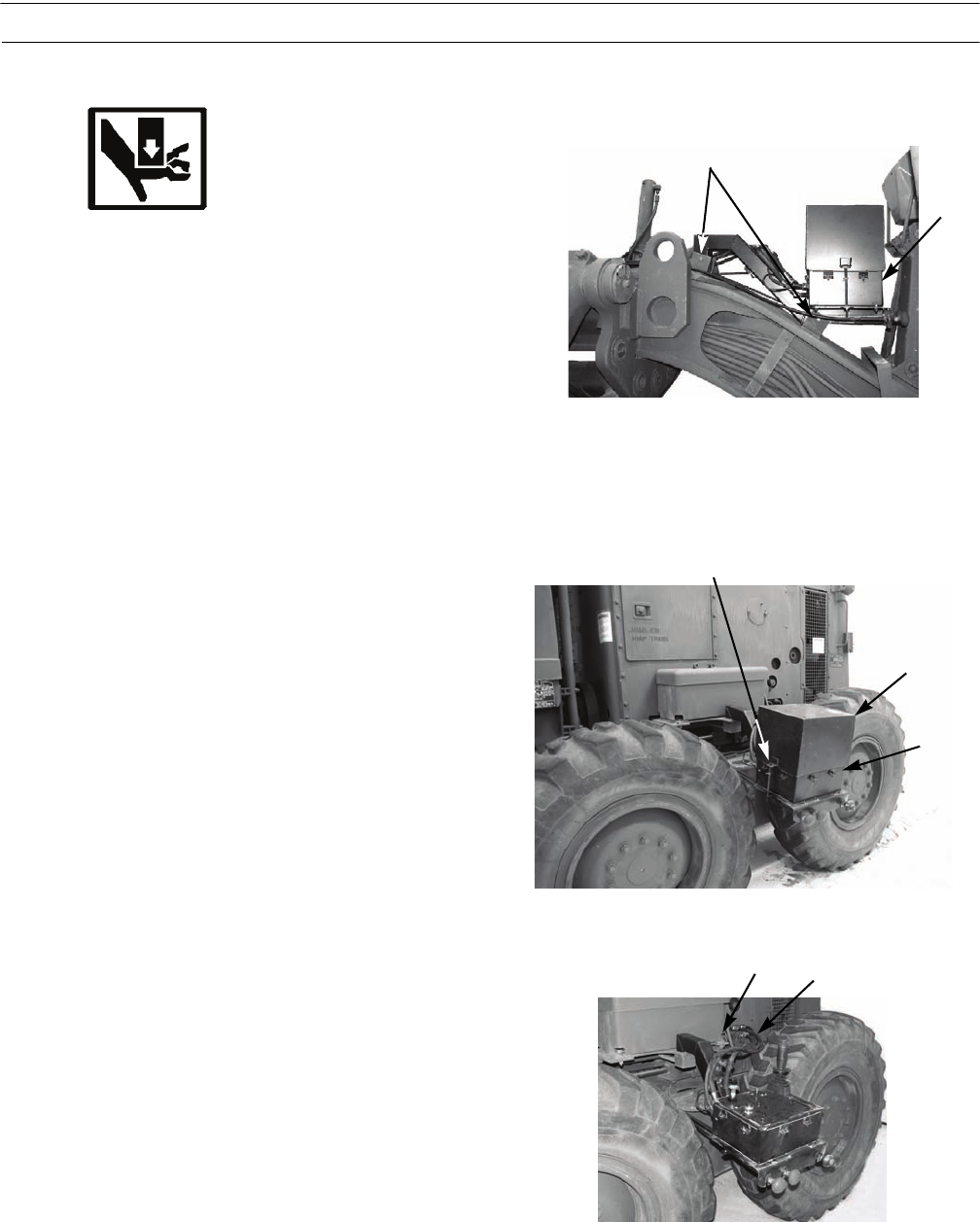

53. Remove two nuts (70) and bolts (71) from remote con-
trol box (72).
54. With assistance, remove remote control box (72) from
machine.
55. With assistance, install remote control box (72) in
bracket near left-hand battery box.
56. Remove two bolts (73) and cover (74) from remote
control box (72).
57. Remove dust covers from cables and hoses.
58. Connect remote control hoses (76) and wiring harness
(75) to machine.
70,71
72
397-1083
397-1084
73
74
72
75
76
397-1085
