Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 210

OPERATORS MANUAL
TM 5-3805-261-10
SECTIONALIZATION FOR AIR TRANSPORT - CONTINUED 0019 00
0019 00-6
DISASSEMBLY - CONTINUED
• DO NOT disconnect or remove any hydraulic system hose or fitting unless engine is shut down and
hydraulic system pressure has been relieved. Tighten all connections before applying pressure. Escap-
ing hydraulic fluid under pressure can penetrate the skin, causing injury to personnel.
• At operating temperature, hydraulic oil is hot. Allow hydraulic oil to cool before disconnecting any
hydraulic hoses. Failure to follow this warning may cause injury to personnel.
CAUTION
Keep hydraulic and air hose connectors clean. Do not allow dirt or other contamination to enter fittings.
NOTE
Tag hose assemblies before disconnecting to aid in installation.

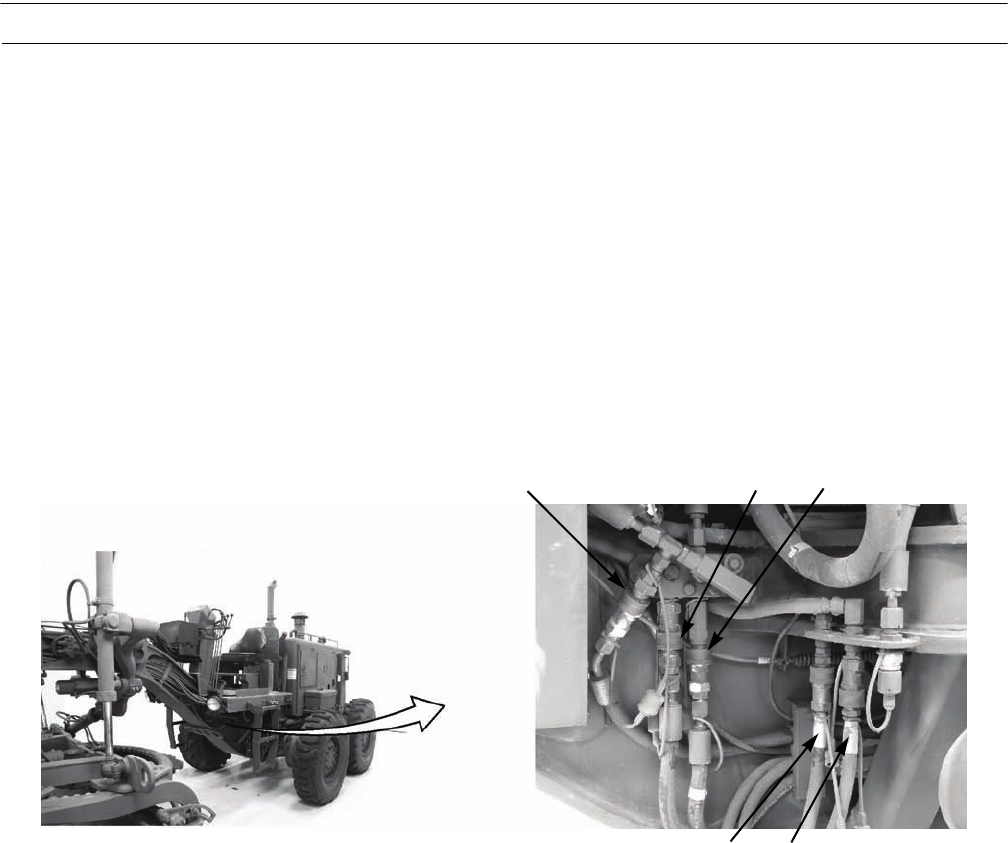

17. Disconnect three hydraulic hoses (27, 28, and 29) and two air hoses (30 and 31) on left side of machine.
18. Remove dirt from dust covers and install on connectors.
397-1070
31
30
27
28
29
