C27 and C32 Generator Sets Operation and Maintenance Manual Page 25

Operation and Maintenance Manual
SEBU8088-06 25
Product Information Section
Product Identification Information
Product Identification
Information
i02456200
Plate Locations and Film
Locations
SMCS Code: 1000; 4450
Caterpillar generator sets are identified by serial
numbers and by arrangement numbers. These
numbers are shown on the engine serial number
plate, on the engine identification plate and on the
generator identification plate. Caterpillar dealers need
these numbers in order to determine the components
that were included with the engine. This permits
accurate identification of replacement part numbers.

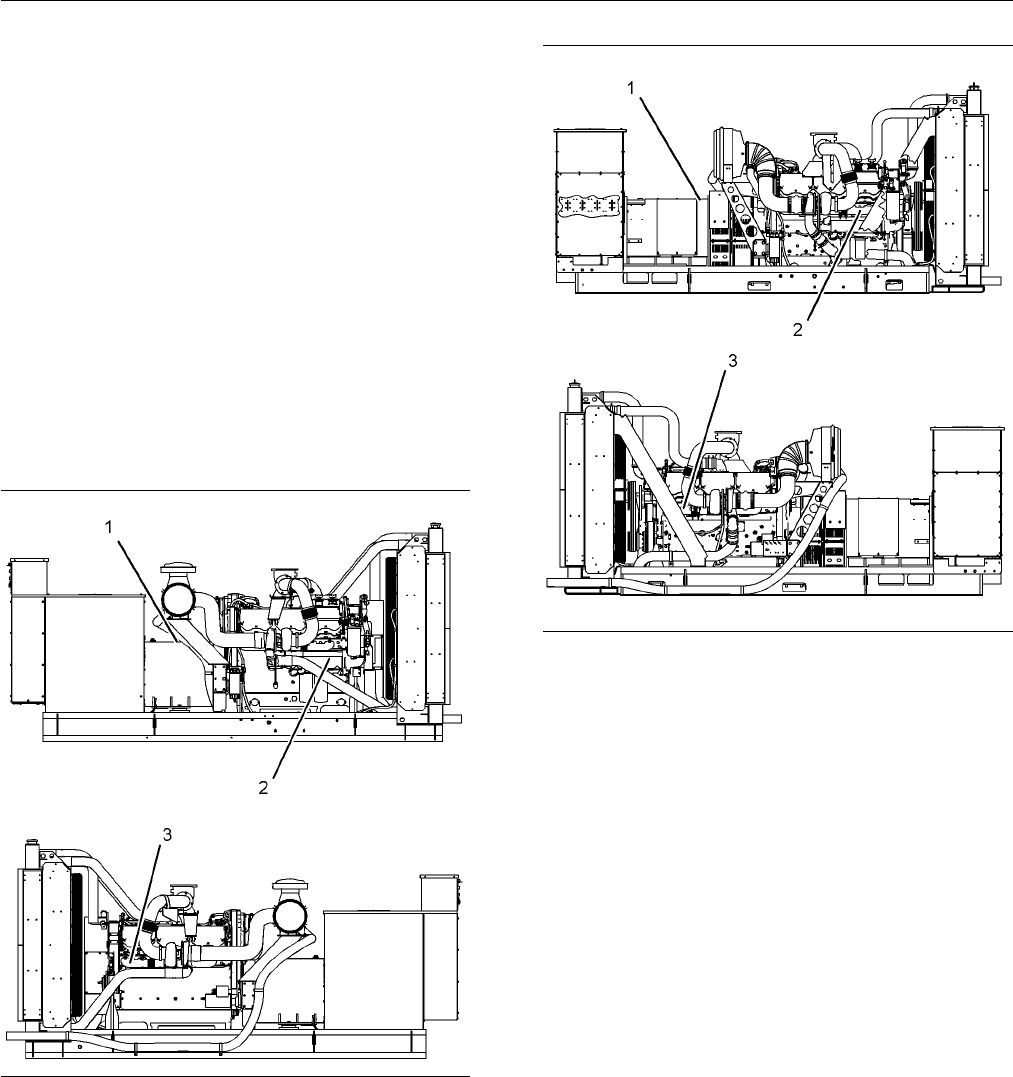

g01225493
Illust
ration 17
C27 gener ator set
g01225784
Illustration 18
C32 genera
tor set
Generato
r Identification Plate (1)
The generator identification plate is located on the
top of the
barrel of the generator.
Generator serial number
__________________________________
Generator model number_________________________________
Engine Identi fication P late (2)
The engin
e identification plate is located on the right
side of the engine on the oil cooler.
Setpoint
of the engine altitude derate
_________________
Horsepower ______ ___________________________________________
High idle ______ _______________________________________________
Full load
engine speed
___________________________________
Fuel settings ________________________________________________
The engine information plate also contains other
important information about the engine.
