C27 and C32 Generator Sets Operation and Maintenance Manual Page 29

Operation and Maintenance Manual
SEBU8088-06 29
Product Information Section
Product Identification Information

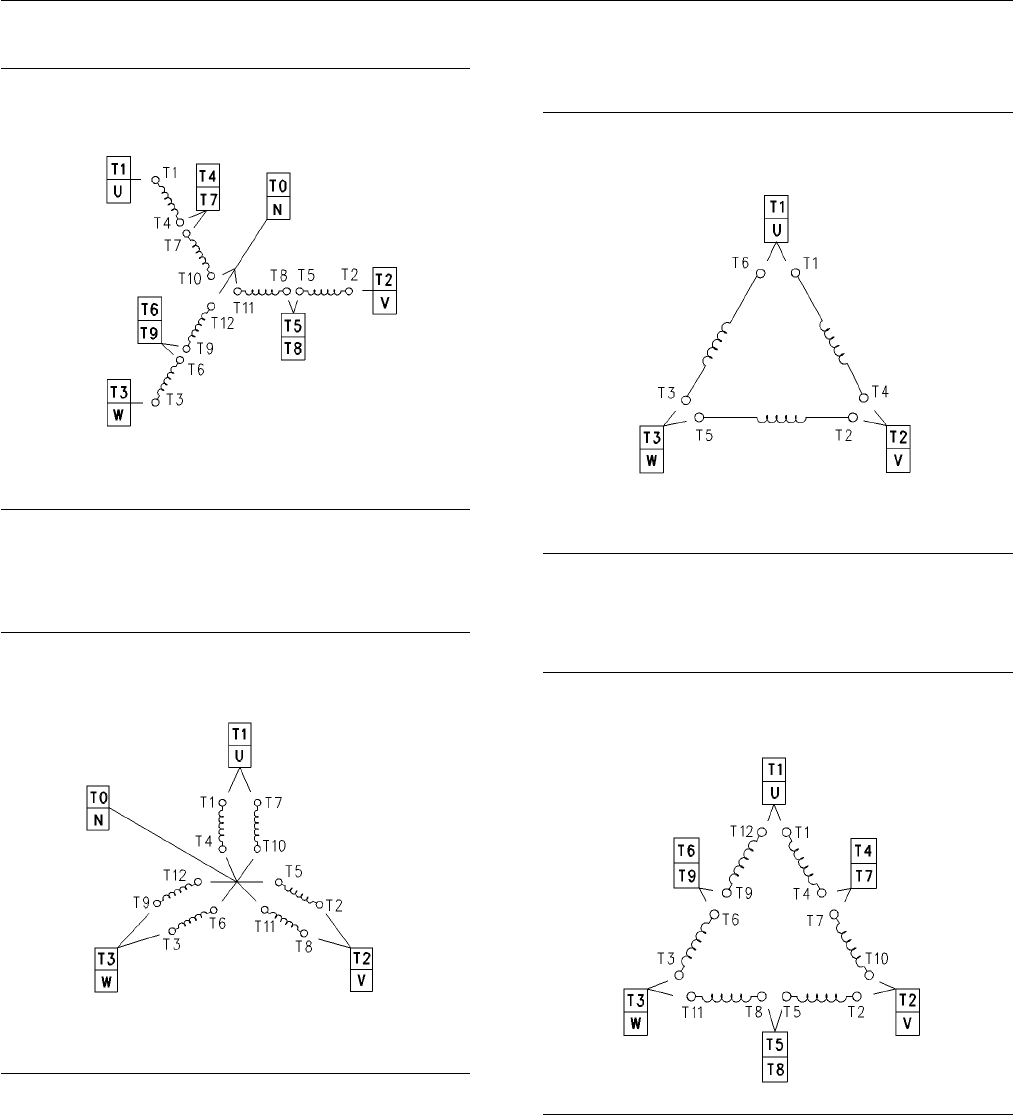

12 Lead
g00661863
Illustration 21
12 Lead Wye Configuration - High Voltage
Terminals T10, T11 and T12 become n eutral connection when
the terminals are tied together.
g00611608
Illustr
ation 22
12 Lead Wye Configuration - Low Voltage
Terminals T10, T11 and T12 become n eutral connection when
the terminals are tied together.
Delta Configu ra
tion Diagrams
6 Lead
g00669319
Illustration 23
6 Lead Delta Configuration
12 Lead
g00669312
Illustration 24
12 Lead Delta Configuration
Term inals T6 and T9 become the neutral connection when the
terminals are tied together and grounded. This reflects the terminal
T2 and T10 connection as the high phase.
