C27 and C32 Generator Sets Operation and Maintenance Manual Page 84

Operation and Maintenance Manual
84 SEBU8088-06
Maintenance Section
Control Panel - Inspect
Alternator Belt Adjustment
g00960176

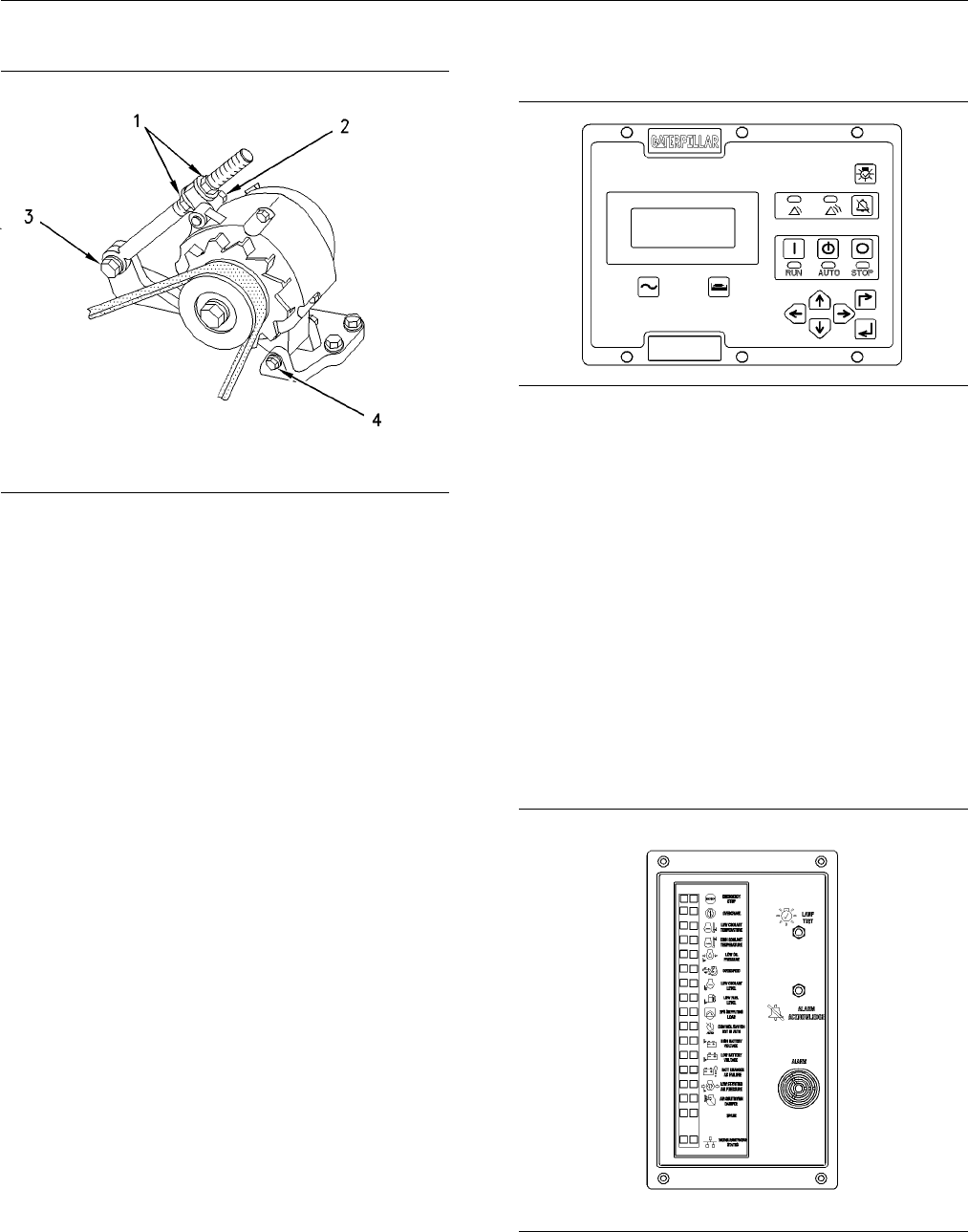

Illustration 53
(1) Adjusting nuts
(2) Mounting bolt
(3) Mounting bolt
(4) Mounting bolt
1. Remove the drive belt guard.
2. Loosen mounting bolts (2), (3), and (4). Loosen
adjusting nuts (1).
3. Turn adjusting nuts (1) in order to increase or
decrease the drive belt tension.
4. Tighten adjusting nuts (1). Tighten mounting bolts
(2), (3), and (4).
5. Reinstall the drive belt guard.
If new drive belts are installed, check the drive belt
tension again after 30 minutes of engine operation at
the rated rpm.
i02373355
Control Panel - In spect
SMCS Code: 4490-040; 7451-040
Inspect the condition of the panel. If a component is
damaged, ensure that the component is repaired or
that the component is replaced. If equipped, ensure
that the electronic displays are operating properly.
Inspect the wiring for good condition. Ensure that the
wiring connections are secure.
Electronic Modular Control Panel 3
(EMCP 3)
g01184041
Illustration 54
TheLampTes
t button is located on the top right side
of the electronic control module. Press and hold
the Lamp Test button in order to test all of the LED
lights and
the display screen. The LED lights and the
display screen should remain on until the button is
released. If any of the components do not pass this
test, repl
ace the faulty components before starting
the engine.
Switch Panel
The Panel
Lights switch should turn on the panel
lights. Toggle the switch in order to ensure that the
panel lights are working.
Annunciator Panel
g01101388
Illustration 55
