C27 and C32 Generator Sets Operation and Maintenance Manual Page 38

Operation and Maintenance Manual
38 SEBU8088-06
Operation Section
Features and Controls
Features and Controls
i02363871
Electron ic Modular Contr ol
Panel II+ with Paralleling
(EMCP II+P)
(If Equipped)
SMCS Code: 4490
g00639524

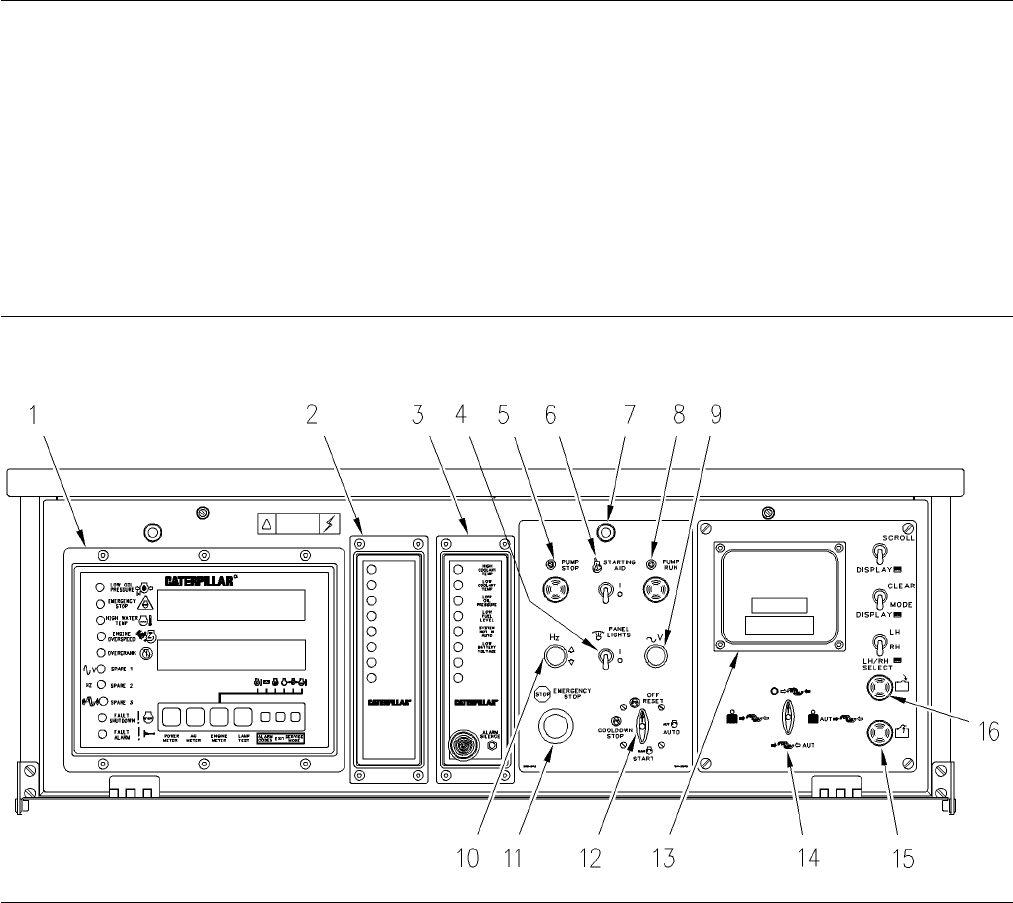

Illustr
ation 3 5
Electronic Modular Control Panel II+ W ith Paralleling (EMCP II+P)
(1) Generator set control + (GSC +)
(2) Alarm module (ALM) (optional)
(3) Custom alarm module (CAM)
(4) Panel light switch (PLS)
(5)Pumpstopswitch
(6) Start aid switch (SAS) (optional)
(7) Panel lights (PL)
(8) Pump run switch (optional)
(9) Voltage adjust rheostat (VAR)
(10) S peed potentiometer (SP) (optional) or
Governor switch (GS) (optional)
(11) Emergency stop push button (ESP B)
(12) Engine control switch (ECS)
(13) Caterpillar Monitoring Sy stem
(14) Synchronization mode switch
(15) B reaker open pushbutton/indicator
(16) B reaker close pushbutton/indicator
The elect
ronic modular control panel II+ with
paralleling (EMCP II+P) is located above the
generator distribution housing. The control panel
consist
s of a main panel with indicators, meters
and control switches. This control panel may be
equipped with optional modules in order to match the
custome
rs’ needs and requirements.
The left s
ide of the control panel contains the
generator set control + (GSC+). This is the main
component of the system. The GSC+ displays
generat
or output, fault conditions, and key engine
parameters. The center section of the control panel
may be blank, or contain one or two of the optional
alarm mo
dules. The right side of the control panel
may be blank, or contain the Caterpillar Monitoring
System.
