C27 and C32 Generator Sets Operation and Maintenance Manual Page 95

Operation and Maintenance Manual
SEBU8088-06 95
Maintenance Section
Engine Crankcase Breather - Clean
i02327200
Engine Crankc ase Breath er -
Clean
SMCS Code: 1317-070

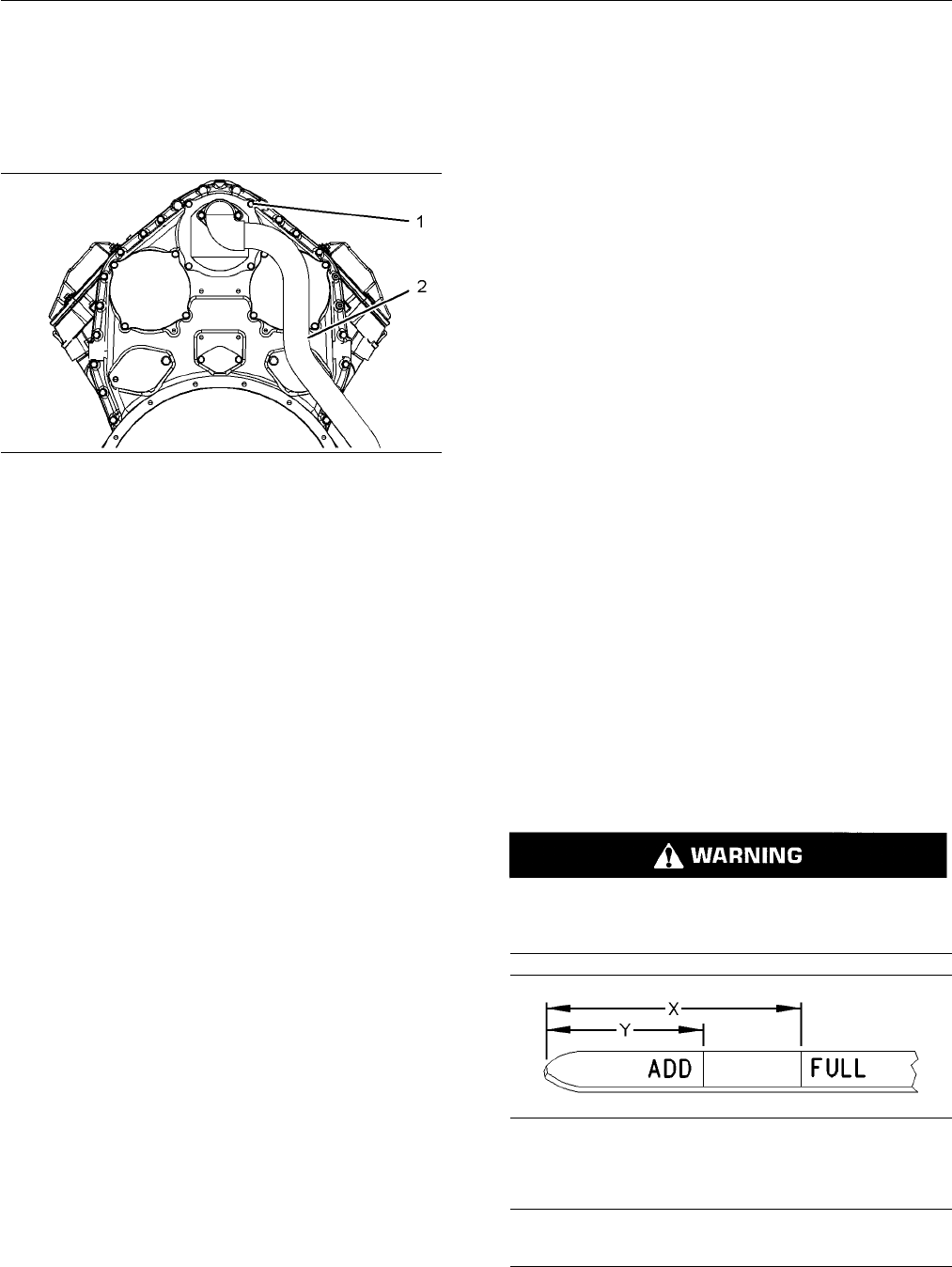

g01162493
Illustration 60
The crankcase breather is located on the back of
the engine.
1. Remove the tube (2) from the outlet of the breather
and loosen the clamp.
2. Remove the bolts (1) and remove the breather
from the engine.
3. Check the condition of the seal. Replace the seal
if the seal is damaged.
4. Remove the breather element. Wash the breather
element and wash the breather in a clean
nonflammable solvent.
5. Shake the breather element until the breather
element is dry. You may also use pressurized air
in order to dry the breather element.
6. Check the condition of the tube. Replace the tube
if the tube is damaged.
7. Install the element into the breather and install the
breather.
8. Install the tube onto the outlet of the breather
cover and tighten the clamp.
i01786814
Engine M ounts - Check
SMCS Code: 1152-535
Misalignment o
f the engine and the driven equipment
will cause extensive damage. Excessive vibration
can lead to misalignment. Excessive vibration of the
engine and the
driven equipment can be caused by
the following conditions:
•
Improper moun
ting
•
Loose bolts
•
Deterioration of the isolators
Ensure that th
e mounting bolts are tightened
to the proper torque. For standard torques, see
Specifications, SENR3130, “Torque Specifications”.
Ensure that the isolators are free of oil and
contamination. Inspect the isolators for deterioration.
Ensure that
the bolts for the isolators are tightened to
the proper torque.
Replace any
isolator that shows deterioration. For
more information, see the literature that is provided
by the OEM of the isolators. Also see the Application
and Install
ation Guide for the engine. Consult your
Caterpillar dealer for assistance.
i02108396
Engine Oil
Level - C heck
SMCS Code: 1348-535-FLV
Hot oil and hot components can cause personal
injury. D
o not allow hot oil or hot components to
contact the skin.
g00110310
Illustration 61
(Y) “ADD” mark
(X) “FULL” mark
NOTICE
Perform this maintenance with the engine stopped.
