C32 Power Module Operation and Maintenance Manual Page 30

Operation and Maintenance Manual
30 SEBU8219-01
Product Information Section
Model Views and Specifications
g01394563

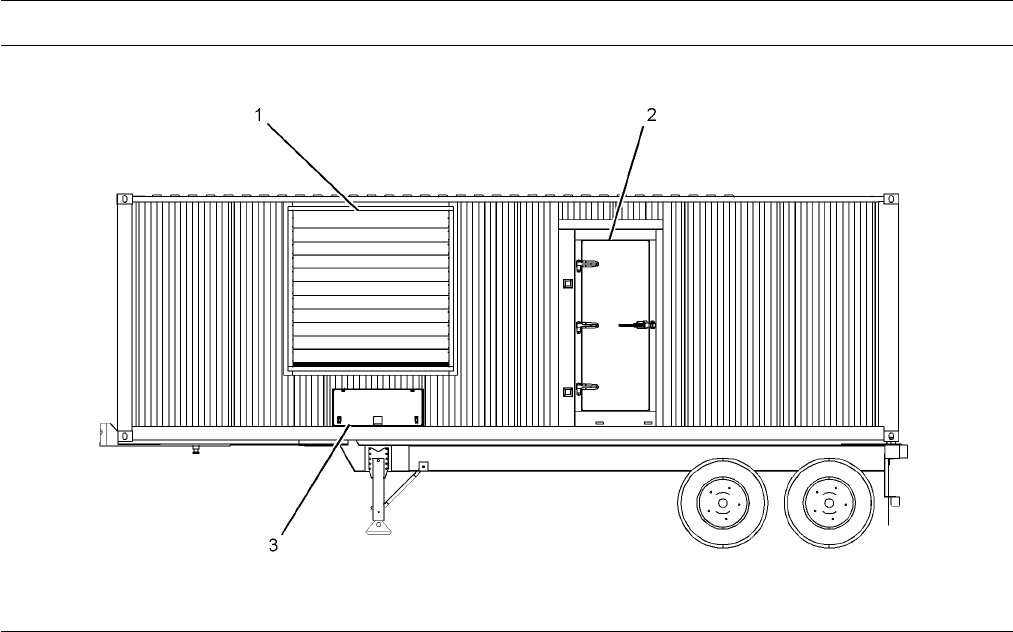

Illustration 27
Typical ex
ample of a C 32 powe r module
(1) Louver (2) Access door (3) Load cable access
i0279297
0
Product Description
SMCS Code: 1000; 4450
The power
module is a complete self-contained unit
for generating electrical power. The power module is
transportable. The power module can be towed to
any loca
tion for the generation of electrical power.
The power module can be utilized for prime power
generation or standby power generation.
The power module is equipped with the following
components: engine, generator, control systems, and
fuel tan
k.
Engine
Description
•
Four cycle
•
Direct fuel injection
•
Mechan
ical Electronic Unit Injector (MEUI)
•
Turbocharged
•
Air-To-Air Aftercooler (ATAAC)
Electronic E ngine Features
Caterpil
lar C32 engines are designed with electronic
controls. The integral on board computer controls
the operation of the engine. Current operating
conditi
ons are monitored. The Electronic Control
Module (ECM) controls the response of the engine to
these conditions and to the demands of the operator.
These co
nditions and operator demands determine
the precise control of fuel injection by the ECM.
The electronic engine control system provides the
follow
ing features:
•
Engine and auxiliary monitoring
•
Engine speed governing
•
Cold st
art strategy
•
Automatic air/fuel ratio control
•
Integrated ether start
•
Torqu e
rise shaping
•
Automatic altitude compensation
•
Injection timing control
