C32 Power Module Operation and Maintenance Manual Page 38

Operation and Maintenance Manual
38 SEBU8219-01
Product Information Section
Product Identification Information

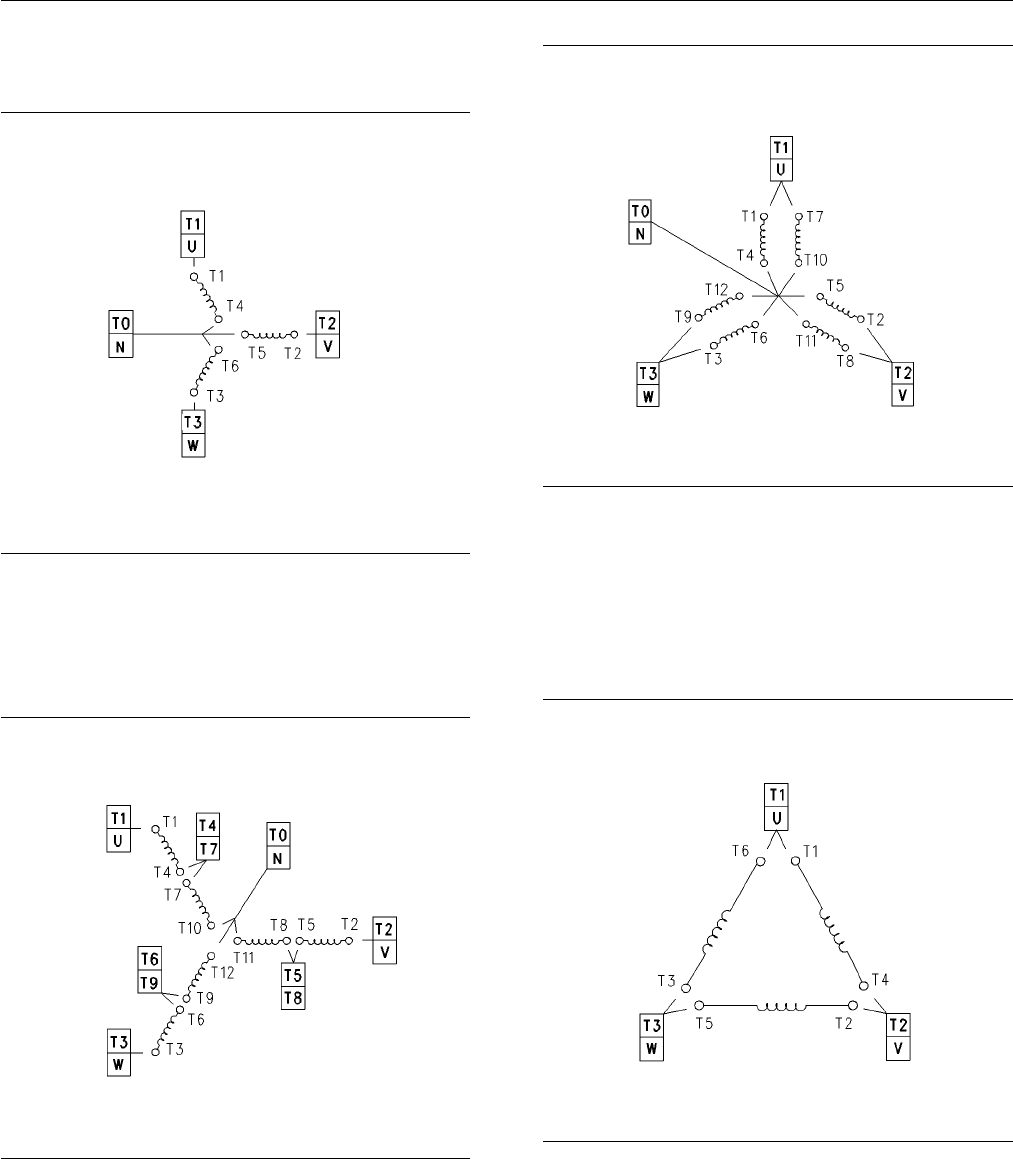

Wye Configurati
on Diagrams
6Lead
g00611486
Illustration 34
6 Lead Wye Configuration
Terminals T 4, T5 and T6 become a neutral co nnection when the
terminals are tied together.
12 Lead
g00661863
Illustration 35
12 Lead Wye Con figur ation - High Voltage
Terminals T10, T11 and T12 become n eutral connection when
the terminals are tied together.
g00611608
Illustration 36
12 Lead W ye Configuration - Low Volta ge
Term inals T10, T 11 and T12 become neutral connection when
the terminals ar e tied together.
Delta Configuration Diag rams
6 Lead
g00669319
Illustration 37
6 Lead Delta Configuration
