C32 Power Module Operation and Maintenance Manual Page 69

Operation and Maintenance Manual
SEBU8219-01 69
Operation Section
Setup Procedures
Setup Pro cedures
i02732002
Setup
SMCS Code: 1000; 7002
Level the Pow e r Module
Once the power module is on the site, the landing
gear should be lowered in order to support the trailer.
The truck should be removed from the trailer. Install
the jack stands underneath the front of the trailer.
Before you operate the power module, level the
power module. This will prevent a low coolant level
alarm from sounding. This will also prevent the
makeup oil supply (if equipped) from overfilling the
engine crankcase.
g00724852

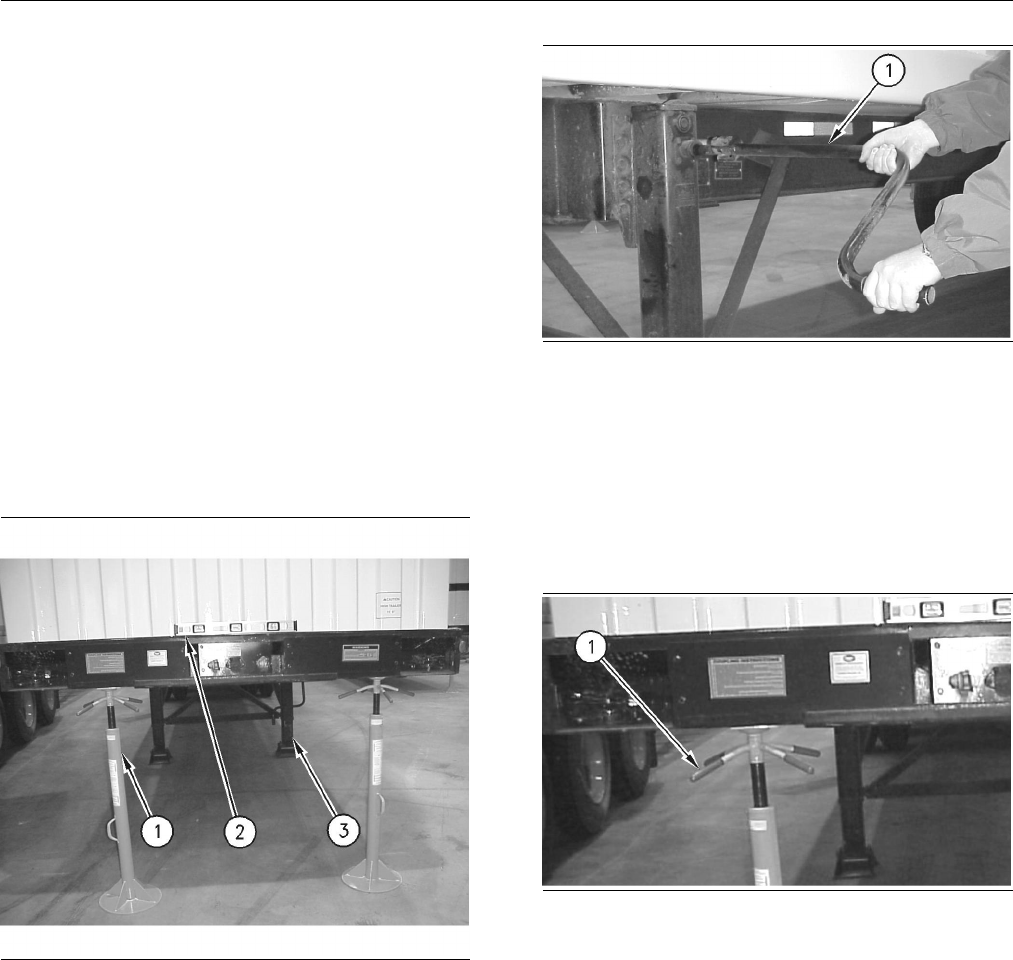

Illustration 59
(1) Jack stands
(2) Level
(3) Landing gear
g00728707
Illustration 60
(1) Adjustment for the landing gear
Use a level in order to verify if the power module is
level front to the rear. Position the level on the side of
the power module. Adjust the landing gear upward or
adjust the landing gear downward in order to make
the adjustment. The power module should be level
withina1/4ofabubbleonthelevelfromthefront
to the rear.
g00728710
Illustration 61
(1) Adju s
tment for a jack stand
Use a level in order to verify if the power module is
level fro
m one side to the other side. Position the
level on the front of the power module. Turn the jack
stands upward or turn the jack stands downward in
order to m
ake the adjustment. The power module
should be within 1/4 of a bubble on the level from
one side to the other side. The radiator filler cap must
be on the
high side of level if the power module can
not be completely level.
