System diagnos
tics
For more information on electronic engine features,
refer to the Op
eration and Maintenance Manual,
“Features and Controls” topic (Operation Section).
Engine Cooling and Lubrication
Thecoolingsy
stem consists of the following
components:
•
Gear-driven c
entrifugal water pump
•
Water temperature regulators which regulate the
engine coola
nt temperature
•
Gear-driven oil pump (gear type)
•
Oil cooler
The engine lu
bricating oil is also filtered. Bypass
valves provide unrestricted flow of lubrication oil
to the engine components during the following
conditions:
•
High oil viscosity
•
Plugged oil cooler or plugged oil filter elements
(paper cartridge)
Engine Service Life
Engine effic
iency and maximum utilization of engine
performance depend on the adherence to proper
operation and maintenance recommendations. In
addition, u
se recommended fuels, coolants and
lubricants. Use this Operation and Maintenance
Manual as a guide for required engine maintenance.
Expected engine life is generally predicted by the
average power that is demanded. The average power
that is dem
anded is based on fuel consumption of the
engine over a period of time. For more information,
refer to the Operation and Maintenance Manual,
“Overhau
l Considerations” topic (Maintenance
Section).
Engine Sp
ecifications
Note: The front end of the engine is opposite the
flywheel e
nd of the engine. The left and the right sides
of the engine are determined from the flywheel end.
The number 1 cylinder is the most forward cylinder.

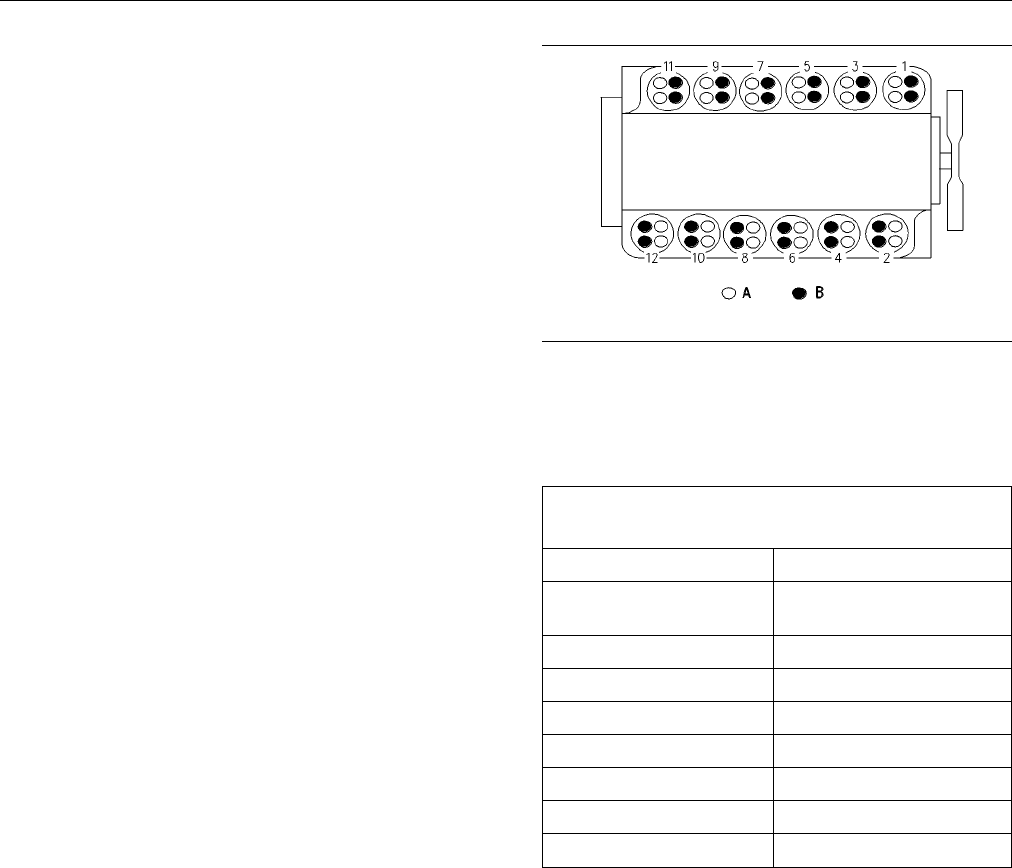

g00291566
Illustration 28
Cylinder and valve locations
(A) Inlet v alves
(B) E xhaus t valves
Table 1
C32 Generator Set Engine Specifications
C32
Cylinders and
Arrangement
12 cylinder vee block
Bore 145mm(5.7inch)
Stroke 162mm(6.4inch)
Compression Ratio 15:1
Aspiration TA
(1)
Displacement
32 L (1953 in
3
)
Firing Order 1-10-9-6-5-12-11-4-3-8-7-2
Rotation (flywheel end) Counterclockwise
(1)
Turbo charged Aftercooled
Generator Description
The SR4B brushless generator is used with the
following loads: mixed loads of motors and lights,
SCR-controlled equipment, computer centers,
installations of communications, and petroleum
drilling applications. The elimination of the brushes in
the field circuit reduces maintenance. The elimination
of the brushes in the field circuit increases reliability.
The elimination of brushes provides a higher degree
of protection in potentially hazardous atmospheres.
The generator set packages can be utilized for prime
power generation or standby power generation. The
generator set packages can be used in land-based
applications.
