C32 Power Module Operation and Maintenance Manual Page 32

Operation and Maintenance Manual
32 SEBU8219-01
Product Information Section
Model Views and Specifications
SR4B generator
s are utilized in three-phase full-wave
excitation and regulation. The generators are
four-pole generators with four, six, ten, or twelve lead
configuration
s that are dependent on frame size. The
generators are capable of producing electrical power
in either 50 Hz or 60 Hz applications.
Power Module Enclosure
Basic Container
The enclosur
e for the power module is a shipping
container that is mounted to an undercarriage
chassis. The container meets the following standards
and regulati
ons:
•
ISO/TC 104 Requirements for cargo containers
•
ANSI/MH5.1 Basic requirements for cargo
containers
•
ANSI/MH5.1.1 Requirements for closed van
containers
Vertical Discharge Panel

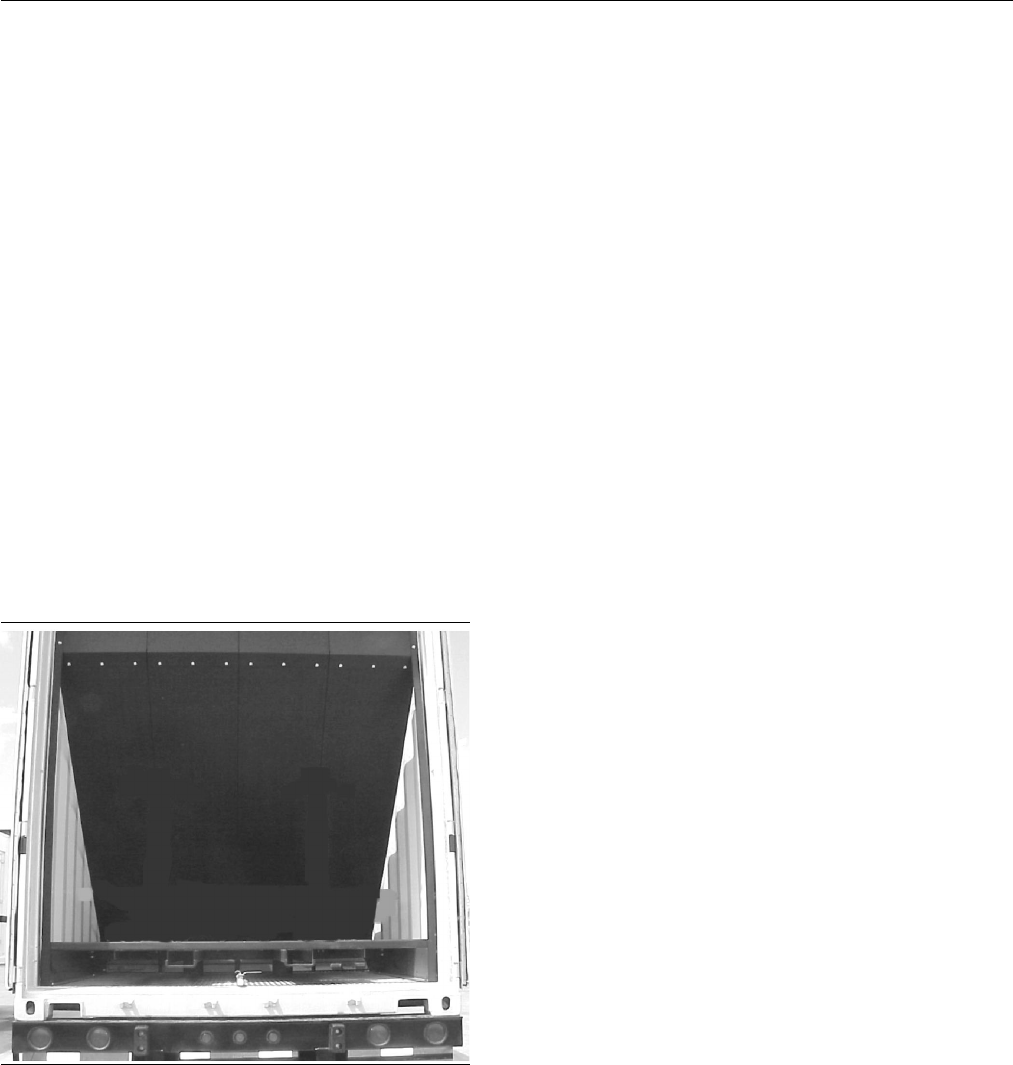

g01297394
Illustration 29
Vertical discharge pa nel
The vertical discharge panel is installed in power
modules that are equipped with vertical radiators.
The panel directs hot air from the radiator and engine
exhaust through an opening in the roof. This helps
direct the hot air away f rom the surrounding area of
the power module.
Fire Extinguishers
Fire extinguishers and fire suppression systems are
available as an option.
Louvers
Louvers are installed in the power module in order
to receive fre
sh air. The louvers are sized in order
to meet the inlet air supply that is required for the
power module. The louvers allow fresh air to enter
the power mod
ule that is needed for the engine air
inlet and for radiator cooling during full load.
There are lou
vers that can be opened and closed
manually. There are also louvers that c an be
opened or closed automatically. The louvers that are
operated man
ually require the operator to open the
louvers before the operation of the power module
and the louvers that are operated manually require
the operato
r to close the louvers after the operation
of the power module. Automatic louvers are opened
and closed by 24 volt electric actuators. The electric
actuators w
ill open the louvers when the engine is
started. The electric actuators will close the louvers
when the engine is stopped.
Fuel Storag e and Fuel Delivery
XQ1000 Fuel tank
A 4732 L (12
50 US gal) fuel tank is mounted in the
front of the power module. The fuel tank can supply
fuel for the engine for approximately 19 hours of
operatio
n at full continuous load.
PM1000 Fuel tank
A 1893 L (500 US gal) fuel tank is mounted in the
front of the power module. The fuel tank can supply
fuel for t
he engine for approximately 7.5 hours of
operation at prime rating.
Fuel Tran
sfer System
A fuel transfer system is available as an option for
the powe
r module. During the operation of the power
module, the fuel transfer system will automatically fill
the fuel tank from a fuel reservoir . The pump for the
fuel tra
nsfer system is driven by an electric motor.
Strainers are on the suction and the discharge in
order to protect the fuel transfer pump from debris.
The fue
l transfer system is equipped with safety
features to prevent the fuel tank from being overfilled.
Power m
odules that are equipped with the Onboard
Import/Export Fuel Transfer system require the
plumbing for the external fuel supply to be properly
plumbe
d for optimum performance. A positive head
is required to push the fuel through the suction piping
into the fuel transfer pump.
