C27 and C32 Generator Set Engines Systems Operation Testing and Adjusting Page 30

Systems Operation Testing and Adjusting
30 RENR9968-02
Testing and Adjusting Section

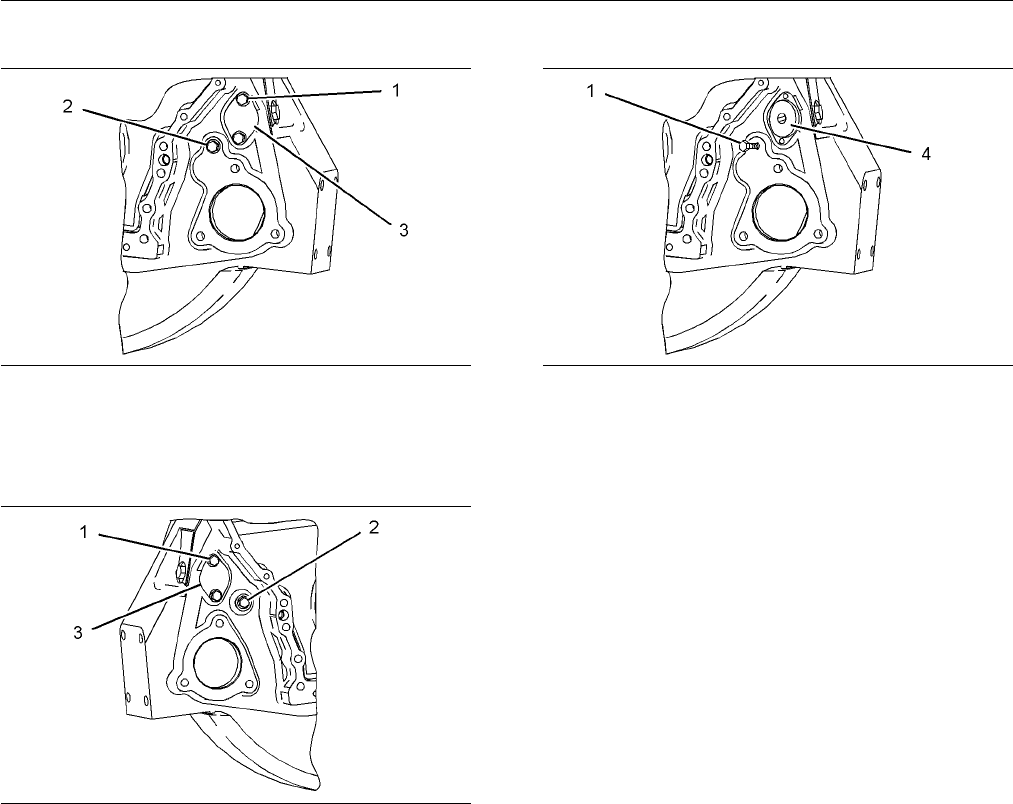

g01123281
Illustration 23
Locating Top Center on the left side of engine
(1) Timing bolt
(2) Timing b olt location
(3) Cover
g01123294
Illustration 24
Locating Top Center on the right side of engine
(1) Timing bolt
(2) Timing b olt location
(3) Cover
1. Timing bolt (1) is a cover bolt. The timing bolt can
be installed in either the left side of th e e ng ine at
location (2) or in the right side of the engine at
timing bolt location (2). Remove both bolts (1) and
cover (3) from the flywheel housing. Remove the
plug from the timing hole in the flywheel housing.
2. Put timing bolt (1) (long bolt that holds the cover
on the flywheel housing) through the timing hole
in the flywheel housing. The 9S-9082 Engine
Turning Tool and a 1/2 inch drive ratchet wrench
are used in order to turn the engine flywheel in
the direction of normal engine rotation. Normal
engine rotation is counterclockwise. Normal
engine rotation is viewed from the flywheel end
of the engine. Turn the engine flywheel until the
timing bolt engages with the threaded hole in the
flywheel.
g01123312
Illustration 25
Using 9S-9082 Engine Turning Tool
(1) Timin g bolt
(4) 9S-9082 Engine Turning Tool
Note: If the flywheel is turned beyond the point
of engagement, the flywheel must be turned in
the opposite direction of normal engine rotation
approximately 45 degrees. Then turn the flywheel in
the direction of normal rotation until the timing bolt
engages with the threaded hole. The procedure will
eliminate the backlash that will occur when the No. 1
piston is put on the top center.
3. Remove the front valve mechanism cover from
the engine.
4. The inlet and exhaust valves for the No. 1 cylinder
are fully closed if the No. 1 piston is on the
compressionstrokeandtherockerarmscanbe
moved by hand. If the rocker arms can not be
moved and the valves are slightly open the No. 1
piston is on the exhaust stroke.
Note: After the actual stroke position is identified,
and the other stroke position is needed, remove the
timing bolt from the flywheel. The flywheel is turned
360 degrees in a counterclockwise direction. The
timing bolt is reinstalled.
i02486888
Fuel Quality - Test
SMCS Code: 1280-081
This test checks for problems regarding fuel quality.
Refer to Diesel Fuels and Your Engine, SEBD0717
for additional details.
Use the following procedure to test for problems
regarding fuel quality:
