C27 and C32 Generator Set Engines Systems Operation Testing and Adjusting Page 64

Systems Operation Testing and Adjusting
64 RENR9968-02
Testing and Adjusting Section
237-5130 Digital M ultimeter Gp or
146-4080 Digital Multimeter Gp
g00283566

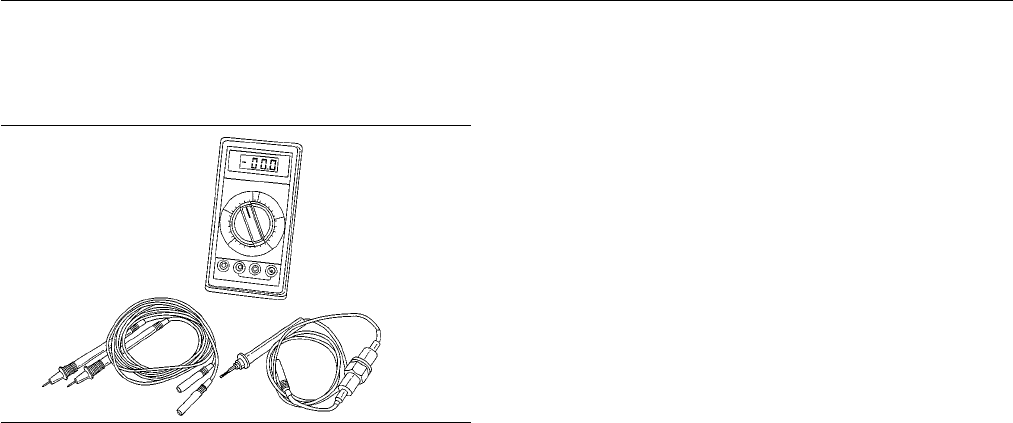

Illustration 61
237-5130 Digital M ultim e ter Gp or 146-4080 Digital Multimeter
Gp
The 2 37- 513 0 Digital Multimeter Gp and the
146-4080 Digital Multimeter Gp are portable
hand-held service tools with a digital display. These
multimeters are built with e xtra protection against
damage in field applications. Both multimeters
are equipped with 7 functions and 29 ranges. The
237-5130 Digital Multim eter Gp and the 146 -40 80
Digital Multimeter Gp have an instant ohms indicator.
This indicator permits checking continuity for a fast
inspection of the circuits. These multimeters can also
be used for troubleshooting capacitors that have
small values.
