RENR9968-02 63

Testing and Adjusting Section

Note: Refer to Operating Manual, SEHS9249, “Use

of 4C-4911 Battery Load Tester for 6, 8, and 12

Volt Lead Acid Batteries” for detailed instruction

on the u se of the 4C-4911 Battery Load Tester.

Refer to O perating Manual, NEHS0764, “Using the

177-2330 Battery Analyzer” for detailed instruction

on the use of the 177- 233 0 Battery Analyzer.

See Special Instruction, SEHS7633, “Battery Test

Procedure” for the correct procedures to use when

you test the battery. This publication also contains

the speciﬁcations to use when you tes t the battery.

i02482986

Charging System - Test

SMCS Code: 1406-081

The condition of charge in the battery at each

regular inspectio n will show if the charging system is

operating correctly. An adjustment is necessary when

the battery is constantly in a low condition of c harge

or a large amount of water is needed. A large amount

of water would be more than one ounce of water per

a cell per a week or per every 100 service hours.

When it is possible, make a test of the charging

unit and voltage regulator on the engine, and use

wiring and components that are a permanent part of

the system. Off-engine testing or bench testing will

give a test of the charging unit and voltage regulator

operation. This testing will give an indication of

needed repair. After repairs are made, perform a test

in order to prove that the units have been repaired to

the original condition of operation.

See Special Instruction, REHS 03 5 4, “Charging

System Troubleshooting” for the correct procedures

to use to test the charging system. This publication

also contains the speciﬁ cations to use when you test

the charging system.

Test Tools For The Charging

System

Table 22

Tools Needed

Part

Number

Part Name

Quantity

225-8266

Ammete

rToolGp 1

237-5130

146-4080

Digital Multimeter Gp

225-8266 Ammeter Tool Gp

g01012117

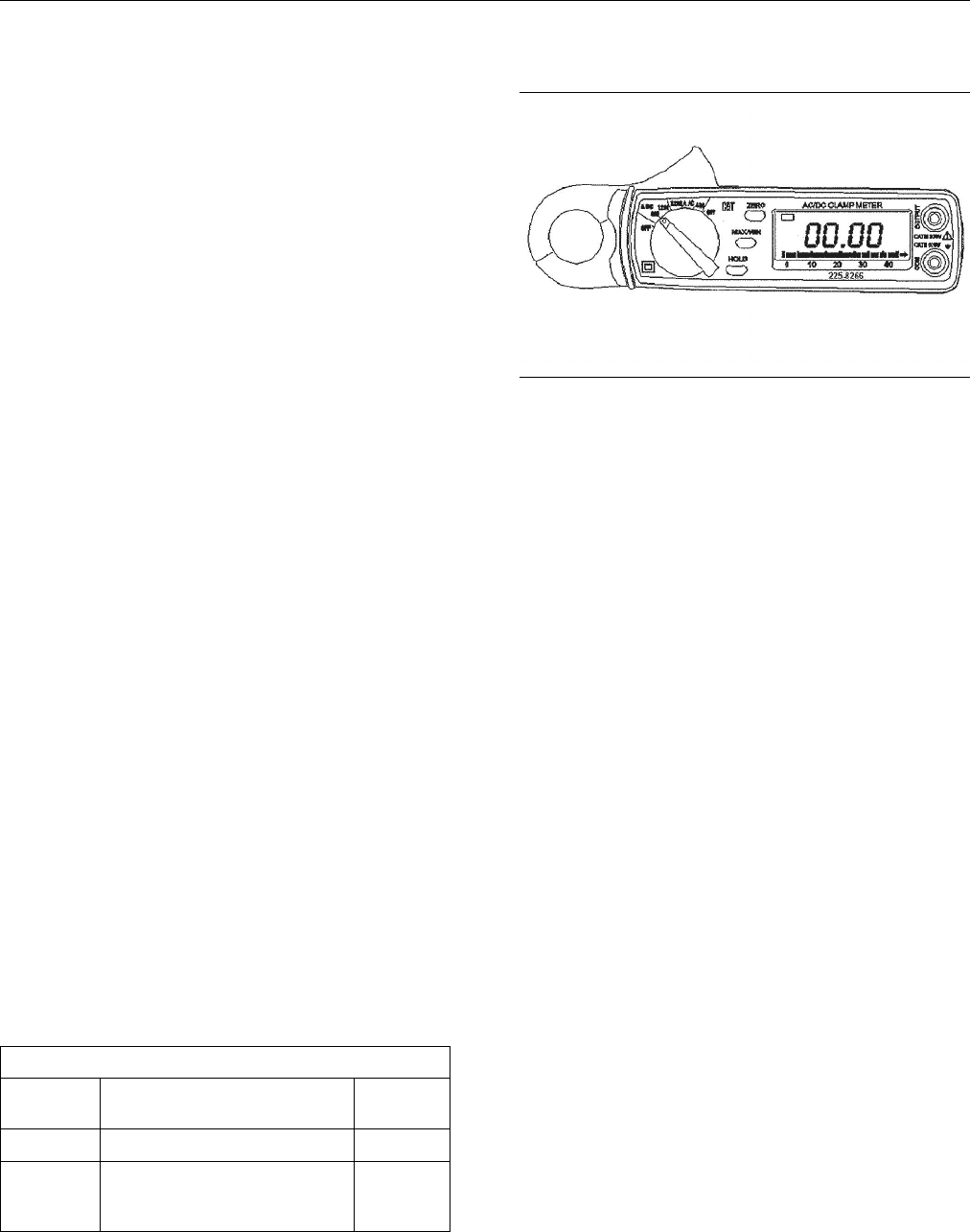

Illustration 60

225-8266 Ammeter Tool Gp

The 22 5-8 266 Ammeter Tool Gp is complete ly

portable. This ammeter is a self-contained instrument

that measures electrical currents without breaking

the circuit and w ith o ut disturbing the conduc to r’s

insulation.

The ammeter contains a digital display that is used

to monitor current directly within a range between 1

ampere and 1200 amperes. If an optional 6V- 6014

Cable is connected between this ammeter and a

digital multimeter, current readings can be viewed

directly from the display of the multimeter. The

multimeter should be used under only one condition:

•

the readings a re less than 1 ampere.

A lever opens the ammeter’s jaws over a conductor.

The conductor’s diameter can not be larger than

19 mm (0.75 inch).

The spring loaded jaws close around the conductor

for measuring the current. A trigger switch controls

theammeter.Thetriggerswitchcanbelockedinto

the ON position or into the OF F position.

After the trigger has been working and the trigger is

turned to th e OFF position, the reading appears in

the digital display for ﬁ ve seconds. This accurately

measures currents in areas with a limited access.

For example, these areas include areas that are

beyond the operator’s sight. For DC operation, an

ammeter contains a zero control, and batteries inside

the handle supply the power.
