C27 and C32 Generator Set Engines Systems Operation Testing and Adjusting Page 40

Systems Operation Testing and Adjusting
40 RENR9968-02
Testing and Adjusting Section
If the measurement is not within this range adjustment
is necessary. Refer to “Valve Lash Adjustment”.
Valve Lash Adjustment
g01386737

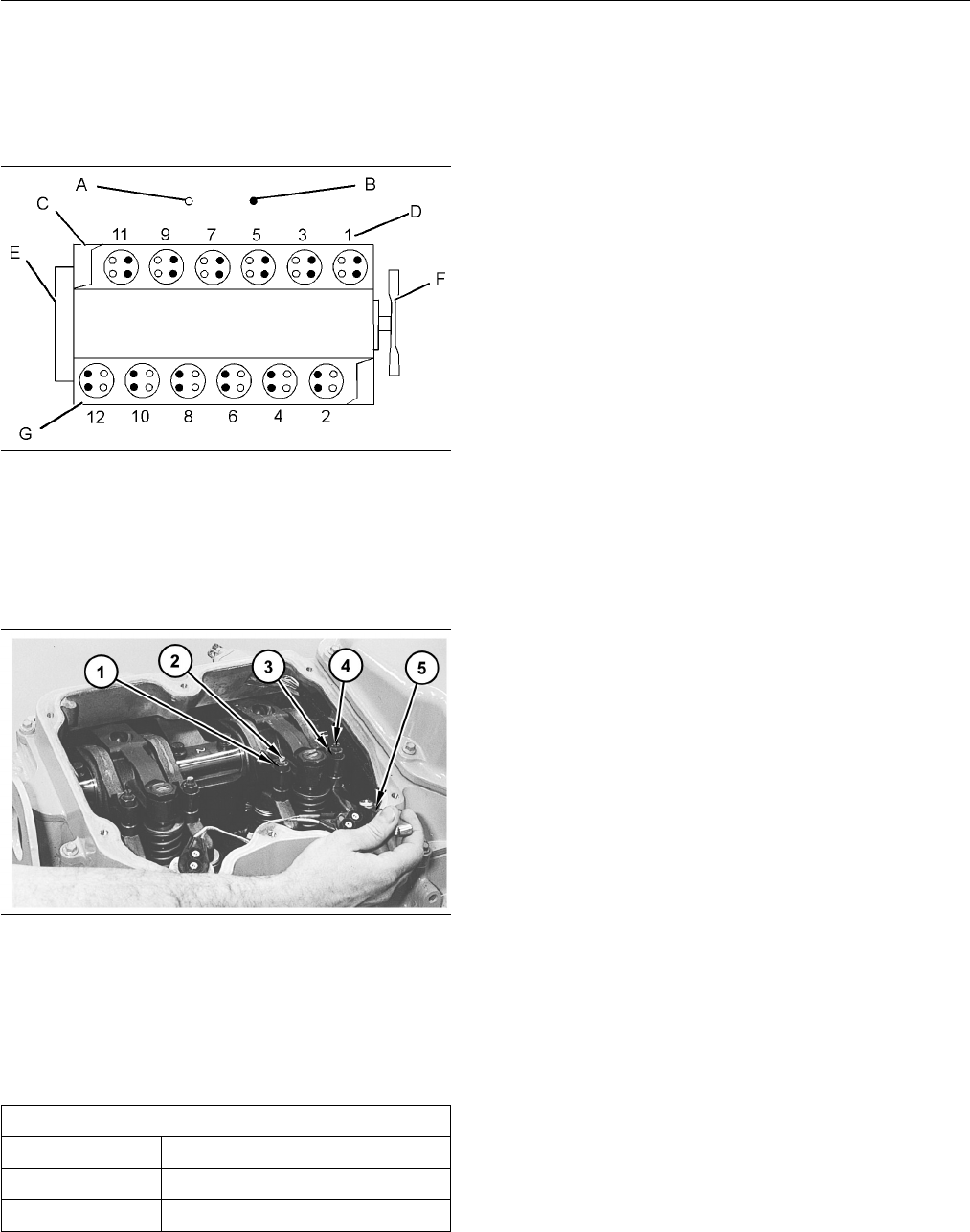

Illustration 32
(A) Inlet valves
(B) Exhaust valves
(C) Lef t side of the engine
(D) Cylinder number
(E) Flywheel end of the engine
(F) Front of the engine
(G) Right side of the engine
g01386742
Illustration 33
Typical example
(1) Valve adjustment locknut
(2) E xhau st adjustment screw
(3) Valve adjustment locknut
(4) Inlet adjustment screw
(5) Feeler gauge
Table 9
Valve Lash
Valves
Thickness of
Gauge
Inlet
0.38 mm (0.015 inch)
Exhaust
0.76 mm (0.030 inch)
Adjust the valve lash while the eng in e is stopped. Us e
the following procedure in order to adjust the valves:
1. Put the No. 1 piston at the top center position.
Note: See Testing and Adjusting, “Finding Top Center
Position for the No. 1 Piston” for further details.
2. With No. 1 piston at the top ce nter posit ion o f the
compression stroke, an adjustment can be made
to the valves.
Before any adjustments are made, lightly tap each
rocker arm at the top of the adjustment screw. Use
a soft mallet to ensure that the lifter roller seats
against the camshaft’s base circle.
3. Make an adjustment to the valve lash on the inlet
valves for cylinders 1, 2, 3, 7, 8, and 10.
a. Loosen valve adjustment locknut (3).
b. Place the appropriate feeler gauge (5) between
the inlet rocker arm and the inlet valve bridge.
Turn inlet adju stment screw (4) while valve
adjustment locknut (3) is being held from
turning. Adjust the valve lash until the correct
specification is achieved. Refer to Table 9.
c. After each adjustment, tighten valve adjustment
locknut (3) while valve adjustment screw (4)
is being held from turning. Tighten to a torque
of 30 ± 7 N·m (22 ± 5 lb ft). Recheck each
adjustment.
4. Make an adjustment to the valve lash on the
exhaust valves for cylinders 1, 2, 5, 6, 9, and 10.
a. Loosen valve adjustment locknut (1).
b. Place the appropriate feeler gauge (5) between
the exhaust rocker arm and the exhaust valve
bridge. Turn exhaust adjustment screw (2)
while valve adjustment locknut (1) is being
held from turning. Adjust the valve lash until
the corr ect specification is achiev ed. Refer to
Table 9.
c. After each adjustment, tighten valve adjustment
locknut (1) while valve adjustment screw (2)
is being held from turning. Tighten to a torque
of 30 ± 7 N·m (22 ± 5 lb ft). Recheck each
adjustment.
5. Removethetimingbolt,andturntheflywheel by
360 degrees in the direction of engine rotation.
This will position the No. 11 piston at th e top
center at the beginning of the compression stroke.
Install the timing bolt in the flywheel.
6. Make an adjustment to the valve lash on the inlet
valves for the following cylinders 4, 5, 6, 9, 11,
and 12.
a. Loosen valve adjustment locknut (3).
