C27 and C32 Generator Set Engines Systems Operation Testing and Adjusting Page 42

Systems Operation Testing and Adjusting
42 RENR9968-02
Testing and Adjusting Section
Lubrication System
i02414081
Engine Oil Pressure - Test
SMCS Code: 1304-081
Measuring Engine Oil Pressure
Work carefully around an engine that is running.
Engine parts that are hot, or parts that are m oving,
can cause personal injury.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Spe cia l Publication, NENG2500 , “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
Table 10
Tools Needed
Part Number Part Name
Quantity
1U-5470
Engine Pressure Group 1
g00296486

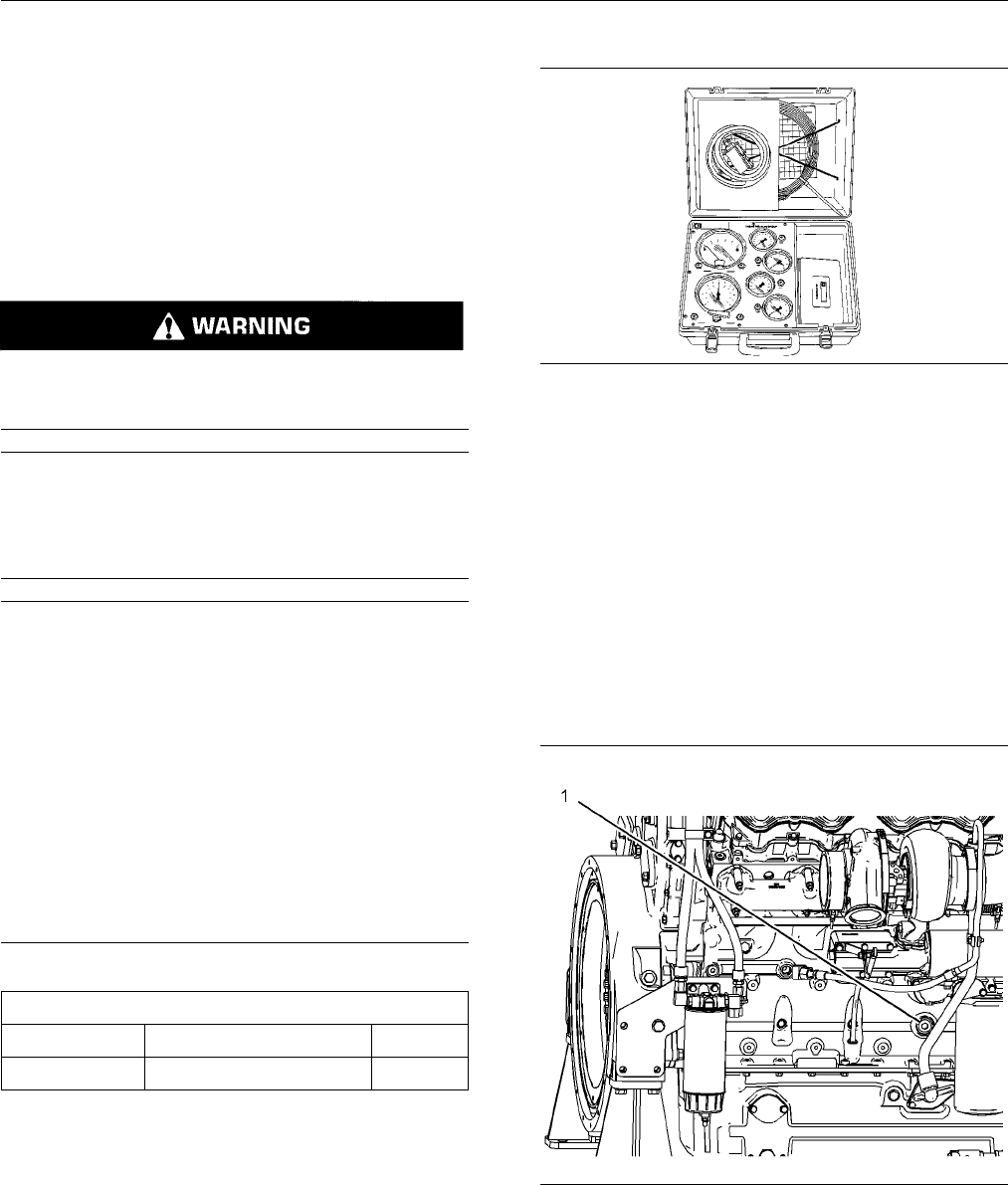

Illustration 34
1U-5470 Engine Pressure Group
The 1U-5470 Engine Pressu re Gro u p meas ures the
oil pressure in th e system. This engine to ol group can
read the o il pressure inside the oil manifold.
Note: Refer to Special Instruction, SEHS8907,
“Using the 1U-54 70 Engine Pressure Group” for
more inform ation on using the 1U-547 0 Engine
Pressure Group.
Note: Theengineoilpressurecanalsobemeasured
by using Caterpillar Electronic Techn icia n (ET). Refer
to Troubleshooting for information on the use of Cat
ET.
g01206665
Illustration 35
Oil gall
ery plug
1. Install the 1U-5470 Engine Pressure Group into
oil gall
ery plug (1).
