C27 and C32 Generator Set Engines Systems Operation Testing and Adjusting Page 35

Systems Operation Testing and Adjusting
RENR9968-02 35
Testing and Adjusting Section
Air Inlet and Exhaust
System
i02310859
Air Inlet and E xhaust System
- Inspect
SMCS Code: 1050-040
A general visual inspection should be made to the air
inlet and exhaust system. Make sure that there are
no signs of leaks in the system .
Table 4
Required Tools
Part
Number
Part Name
Quantity
1U-5470
or
198-4240
Engine Pressure Group
or
Digital Pressure Indicator
1

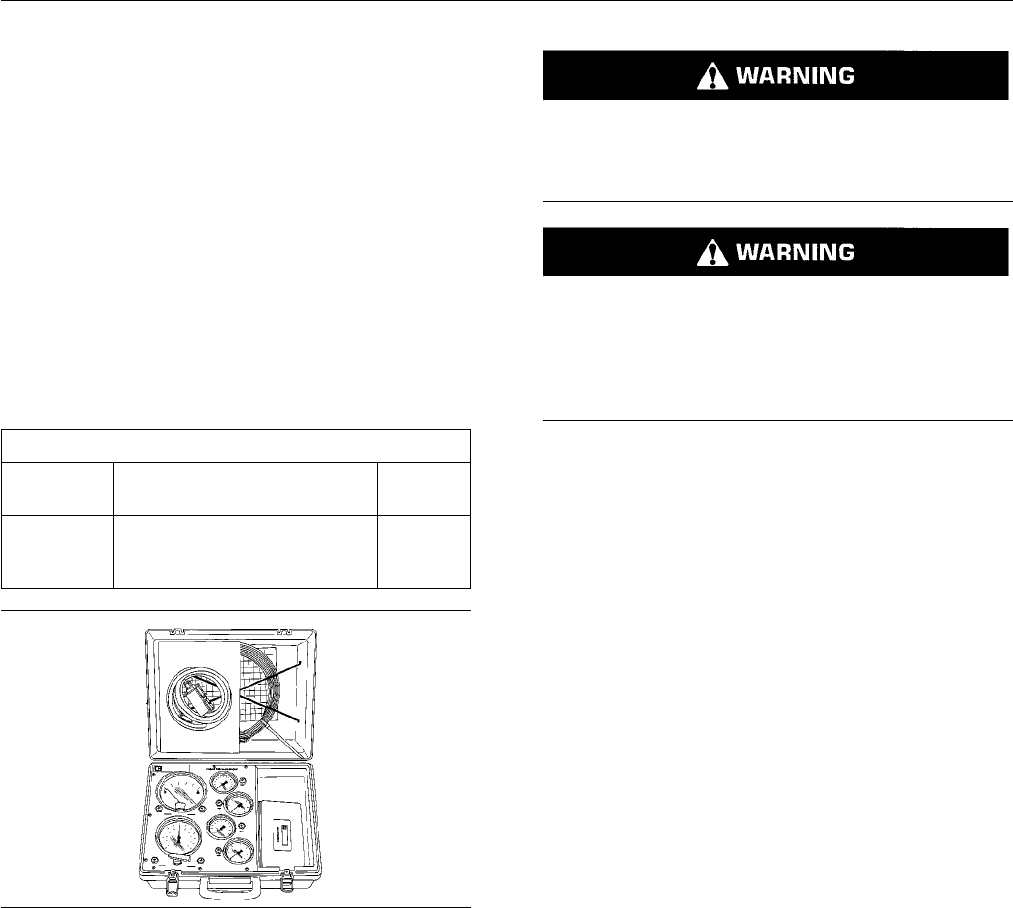

g00295554
Illustrati
on 29
1U-5470 Engine Pressure Group
Air Inlet Restriction
There will be a reduction in the performance of the
engine if there is a restriction in the air inlet system.
1. Inspect the engine air cleaner inlet and ducting
in order to ensure that the passageway is not
blocked or
collapsed.
2. Inspect the engine air cleaner element. Replace
a dirty eng
ine air cleaner element with a clean
engine air cleaner element.
3. Check for d
irt contamination on the clean side
of the engine air cleaner element. If any dirt
contamination is observed, contaminants are
flowing pas
t the engine air cleaner element and/or
the seal for the engine air cleaner element.
Hot engine components can cause injury from
burns. Before performing maintenance on the
engine, allow the engine and the components to
cool.
Making contact with a running engine can cause
burns f rom hot parts and can cause injury from
rotating parts.
When working on an engine that is running, avoid
contact with hot parts and rotating parts.
4. Use the differential pressure gauge of the
1U-5470 Engine Pressure Group.
a. Connect the vacuum port of the differential
pressure gauge to the test location. The test
location may be located anywhere along the
air inlet piping after the air cleaner but before
the turbocharger.
b. Leave the pressure port of the differential
pressure gauge open to the atmosphere.
c. Start the engine. R un the engine in the no-load
condition at high idle.
d. Record the v alue.
e. Multiply the value from Step 4.d by 1.8.
f. Compare the result from Step 4.e to the
appropriate values that follow.
The air flow through a used engine air cleaner
may have a restriction. The air flow through a
plugged engine air cleaner will be restricted to some
magnitude. In either case, the restriction must not be
more than the following amount:
Maximum restricti on ............................... 7.6 kPa
(30.54 inch of H
2
O)
The air flow through a new engine air cleaner element
must not have a restriction of more than the following
amount:
Maximum restricti on ............................... 3.7 kPa
(14.87 inch of H
2
O)
Exhaust Restriction
There will be a reduction in the performance of the
engine if there is a restriction in the exhaust system.
