C27 and C32 Generator Set Engines Systems Operation Testing and Adjusting Page 34

Systems Operation Testing and Adjusting
34 RENR9968-02
Testing and Adjusting Section
g01124671

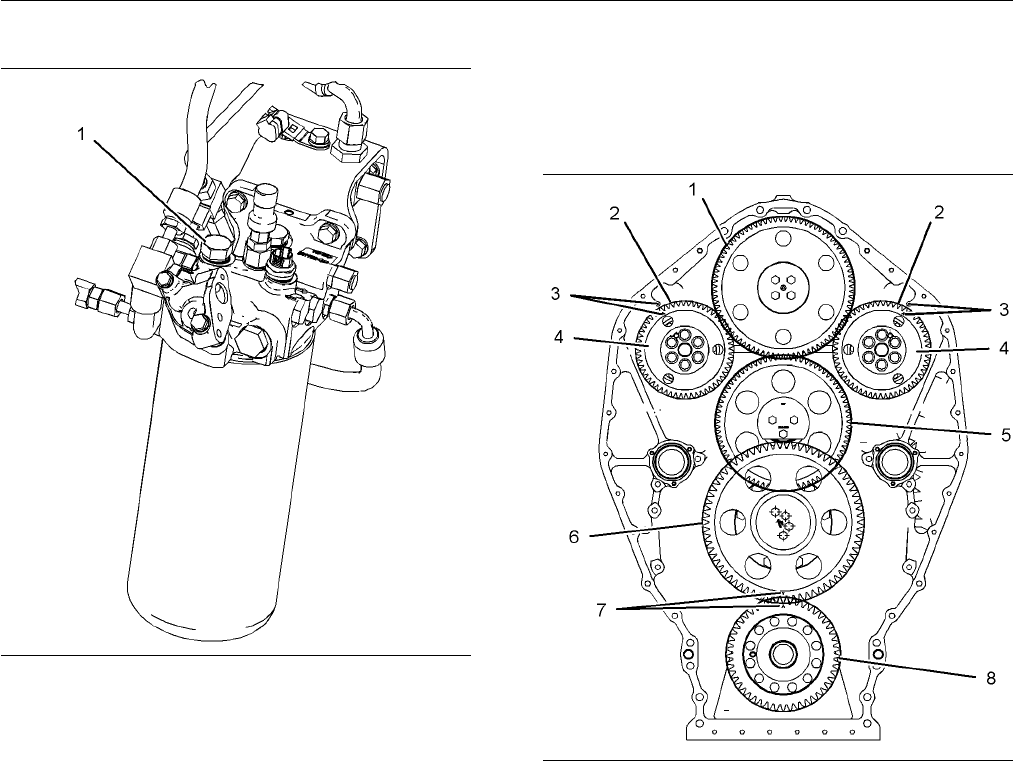

Illustration 27
Location of fuel pressure tap
To check the fuel transfer pump pressure, remove the
plug (1) from the fuel filter base. Install the pressure
gauge and appropriate fittings from the 1U-5470
Engine Pressure Group and start the engine.
Check the fuel pressure of the eng ine with the
1U-5470 Engine Pressure Group. The engine
pressure group includes Special Instruction,
SEHS8907, “Using the 1U-5470 Engine Pressure
Group”. This instruction provides information about
the usage of the group.
i02227448
Rear Gear Group - Time
SMCS Code: 1206-531
g01114567
Illustration 28
Rear gear gro up
(1) Idler gear
(2) Gear assembly for the camshaft
(3) Alignment marks
(4) Camshaft gear
(5) Idler gear assembly
(6) Idler gear assembly
(7) Alignment marks
(8) Crankshaft gear
Position the number one piston in the top center
position (TC). Align the “V” mark (3) on the camshaft
gear (4) with the mark in the flywheel housing.
Align the “V” marks (7) on idler gear (6) and the
crankshaft gear (8).
Note: If one or more of the gears need to be removed
for rep air, refer to Disassembly and Assemb ly, “Gear
Group (Rear) - R emove” in order to properly remove
the gears. Refer to Disassembly and Assembly,
“Gear Group (Rear) - Install” in order to properly
install the gears.
Inspect the gears for wear or for damage. If the gears
are worn or damaged, use new parts for replacement.
