Cab Air Filter - Clean/Replace
4. Clean the mount
ing surface.
5. Replace the bucket tips.
6. Install the bolts.
7. Remove the blo
cks that are under the bucket.
8. After a few hours of operation, check the bolts for
proper torque
.
i01962545
Cab Air Filter - Clean/Replace
(If Equipped)
SMCS Code : 7342-070; 7342-510
Fresh Air Filter

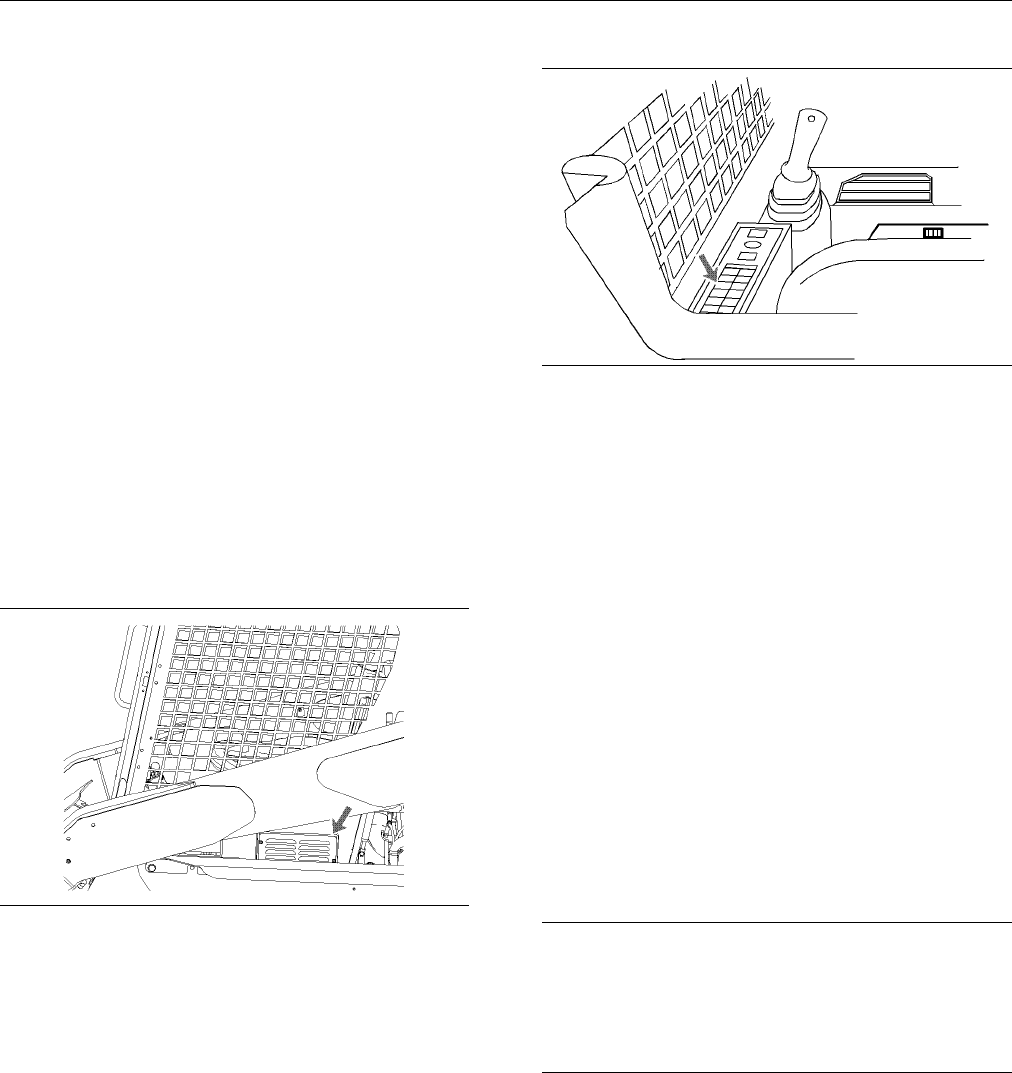

1. Raise the loader lift arms. Install the brace
for the loader lift arm. Refer to Operation and
Maintenance
Manual, “Loader Lift Arm Brace
Operation”.
g0101973
2
Illustration 101
2. Remove the filter cover.
3. Remove the
seal from the cover and inspect the
seal. If the seal is damaged replace the seal.
4. Remove the
air filter element from the cover and
clean the filter element with low pressure air.
Replace the element if the element is damaged.
5. Install the seal onto the filter cover and install the
filter element.
6. Install the filter cover on the machine.
7. Remove th
e brace for the loader lift arms and
return the brace to the stored position. Refer to
Operation and Maintenance Manual, “Loader Lift
Arm Brace
Operation”.
Recirculation Filter
g01024691
Illustration 102
1. Remove the cover in order to access the air filter
element.
2. Remove the air filter element and clean the
element with soap and water. Replace the element
if the element is damaged.
3. Install the element and replace the cover.
i01879977
Circuit Breakers and Fu ses -
Reset/Replace
SMCS Code: 1417-510; 1420-529
Fuses – Fuses protect the electrical system from
damage that is caused by overloaded circuits.
Replace the fuse if the element separates. If the
element of a new fuse separates, check the circuit.
Repair the circuit, if necessary.
NOTICE
Replace the fuses with the same type and size only.
Otherwise, electrical damage can result.
If it is necessary to replace fuses frequently, an electri-
cal problem may exist. Contact your Caterpillar dealer
