247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 145

Operation and Maintenance Manual
SEBU7494-06 145
Maintenance Section
Work Tool Mounting Bracket - Inspect
Apply lubrican
t to the grease fitting on the vertical
pivot point of the blade. Repeat for opposite side of
the blade.

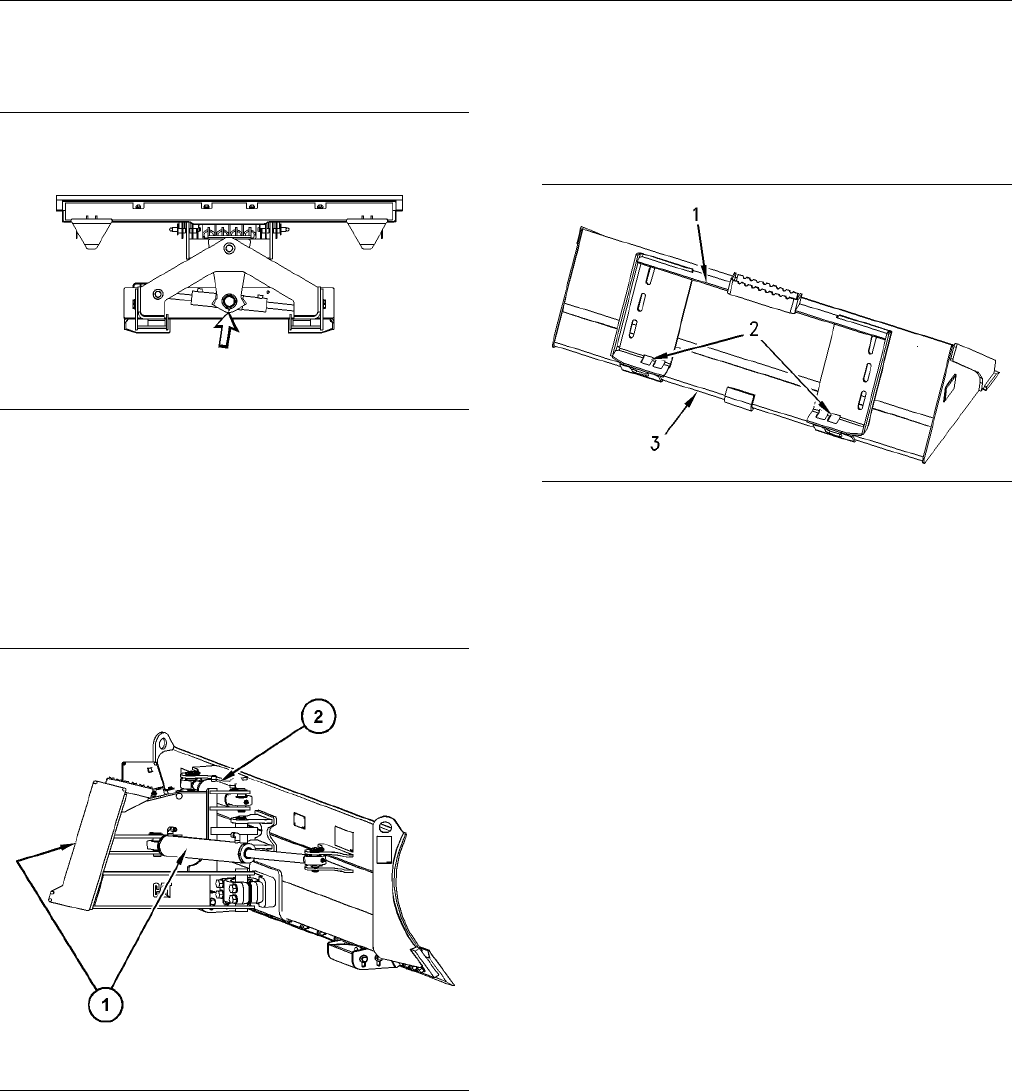

g00677570
Illustration 205
This is a bottom view of the angle blade.
Apply lubricant to the grease fitting on the pivot point
of the cylinder.
There are five grease fittings.
Dozer Blade
g01073259
Illustration 206
Apply lubricant to the grease fitting on both ends of
the right hand angle cylinder (1). Repeat for opposite
side of the blade.
Apply lubricant to the grease fitting on the pivot points
on each end of the tilt cylinder (2).
There are six grease fittings.
i01809997
Work Tool Mounting Bracket -
Inspect
SMCS Code: 6700-040-BK
g00925058
Illustration 207
Inspect upper angled plate (1) and ensure that the
plate is not bent or otherwise damaged. Inspect holes
(2) for wear and for damage. Inspect lower angled
plate (3) and ensure that the plate is not bent or
otherwise damaged. If any wear is suspected or any
damage is suspected, consult your Caterpillar dealer
before you use the work tool.
