247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 88

Operation and Maintenance Manual
88 SEBU7494-06
Maintenance Section
Maintenance Access
Maintenance Section
Maintenance Acces s
i01871110
Access Doors and Covers
SMCS Code : 7273-572; 7273-573

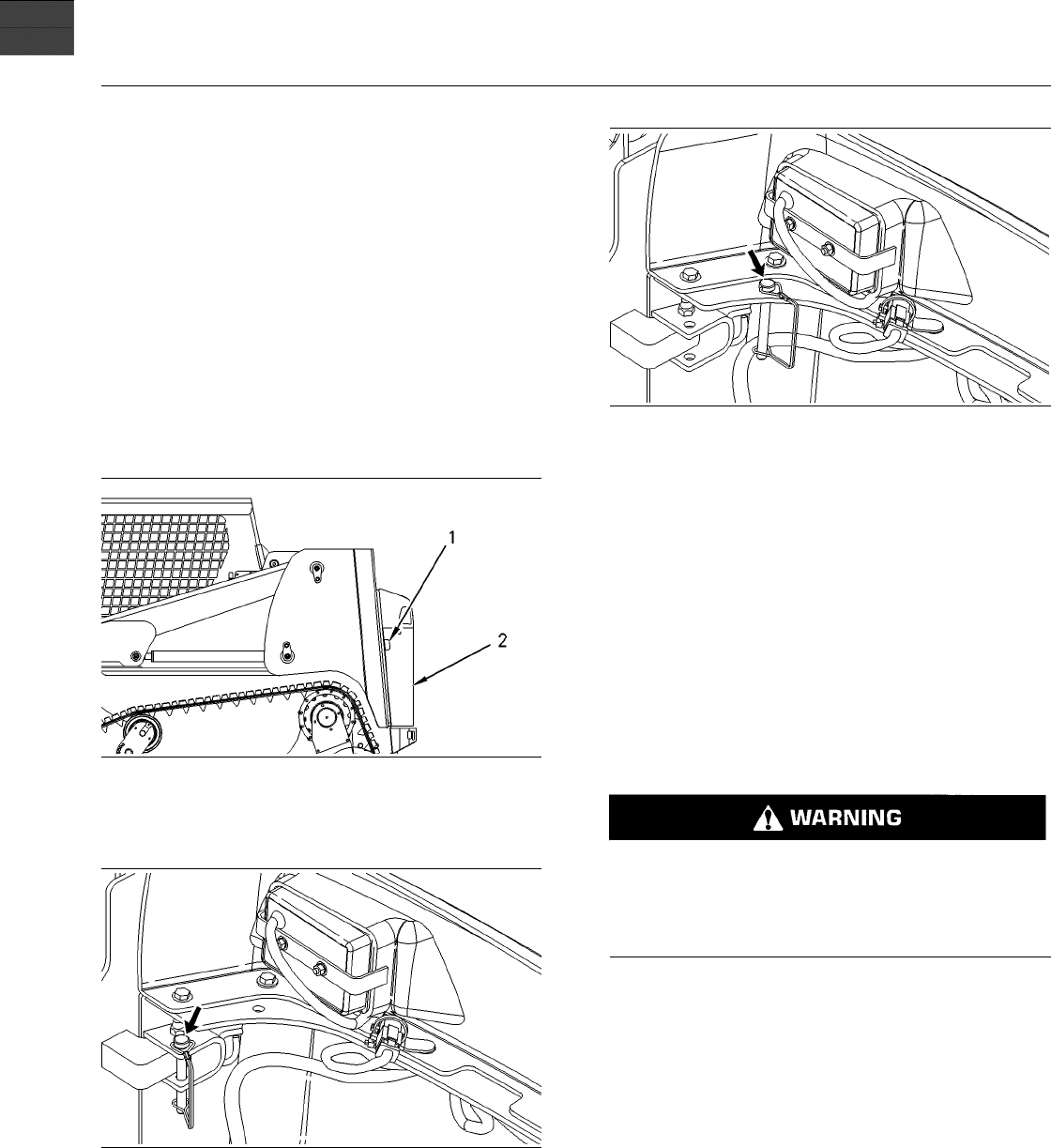

Engine Access Door
The engine access door is located on the back of
the machine.
g00952785
Illustration 76
1. Pull the release lever (1) in order to open the
engine access door (2).
g00953149
Illustration 77
2. Put the retaining p in in the locked position so the
engine access door does not close inadvertently.
g00953140
Illustration 78
3. In order to close the engine access door, put the
retaining pin in the stored p osition.
4. Close the engine access door.
Note: A pinch point exists between the top of the
engine access door and the radiator guard. Keep
hands away from this area when you close the
engine access door.
i01821601
Cab Tiltin
g
SMCS Code: 7301-506; 7301-509
Do not go beneath cab unless cab is empty and
support lever is engaged.
Failure to follow the instructions or heed the warn-
ings could result in injury or death.
Tilting the Cab Upward
1. Park the machine on level ground.
Note: Empty the water tank (if equipped) before you
tilt the cab.
2. Lower the loader arms fully. If you tilt the cab
upward with the loader lift arms in the RAISED
position, you must engage the brace for the loader
lift arms. See Operation and Maintenance Manual,
“Loader Lift Arm Brace Operation” for the process
for engaging the brace for the loader lift arms.
3. Turn the engine sta rt switch key to the OFF
position.
4. Place supports under the rear of the machine in
order to support the machine while the cab is tilted.
