247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 121

Operation and Maintenance Manual
SEBU7494-06 121
Maintenance Section
Fuel System Primary Filter (Water Separator) - Drain
g00954458

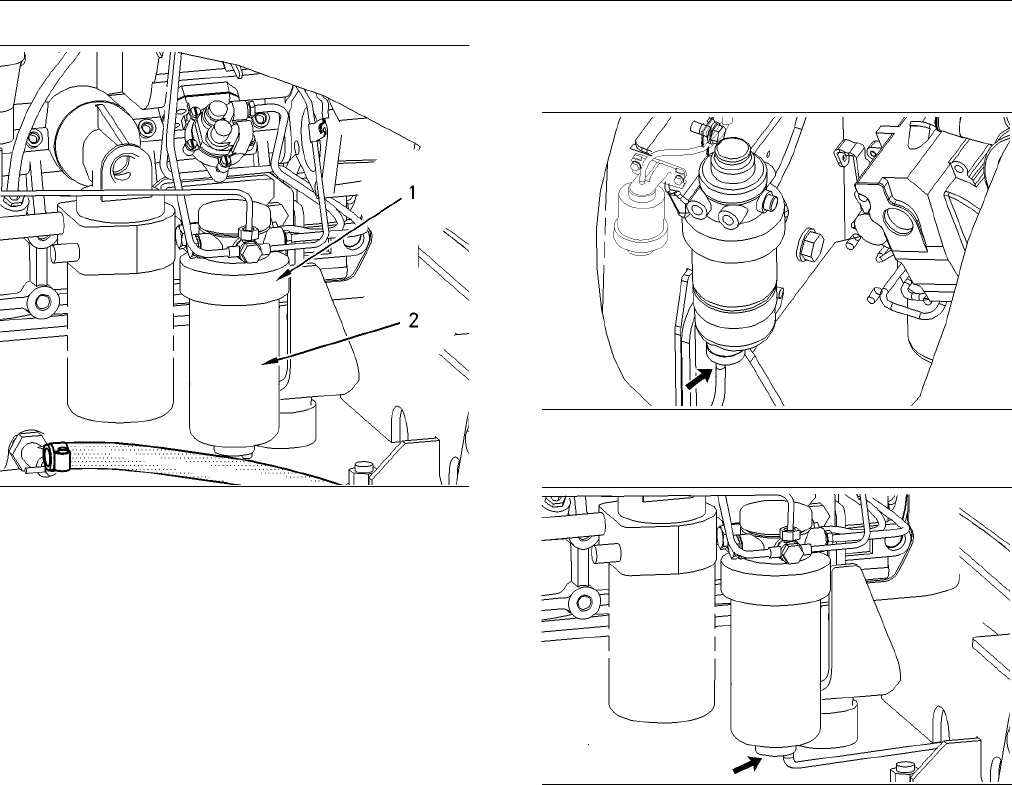

Illustration 132
Fuel F ilter/Water Separator (Ty pe 2)
2. Support the filter element (2) and rotate the
locking ring (1) counterclockwise. Remove the
locking ring.
3. Remove the filter element. Inspect the fuel filter
for debris by cutting the filter open. Discard the
filter properly.
4. Clean the mounting base of the fuel filter. Remove
any part of the old seal that remains on the
mounting base of the fuel filter.
5. Coat the seal of the new fuel filter with clean
diesel fuel.
6. Install the new fuel filter by hand. Rotate the
locking ring clockwise. When the seal contacts
the base, tighten the locking ring for an additional
three quarters of a turn.
7. Prime the fuel system. Refer to Operation and
Maintenance Manual, “Fuel System Priming Pump
-Operate”.
8. Close the engine access door.
i02099555
Fuel System Primary Filter
(Water Separator) - Drain
SMCS Code: 1263-543
The fuel system water separator is located in the left
side of the engine compartment.
1. Open the engine
access door. Refer to Operation
and Maintenance Manual, “Access Doors and
Covers”.
g00954468
Illustration 133
Water Separator Element
g00954471
Illustration 134
Fuel F ilter/Water Separator
2. Loosen the drain valve on the bottom of the water
separator. Allow the water and the sediment to
drain into a suitable container.
3. Tighten the drain valve.
4. Close the engine access door.
