247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 22

Operation and Maintenance Manual
22 SEBU7494-06
Safety Section
General Hazard Information
i02443908
General Hazard Information
SMCS Code: 7000

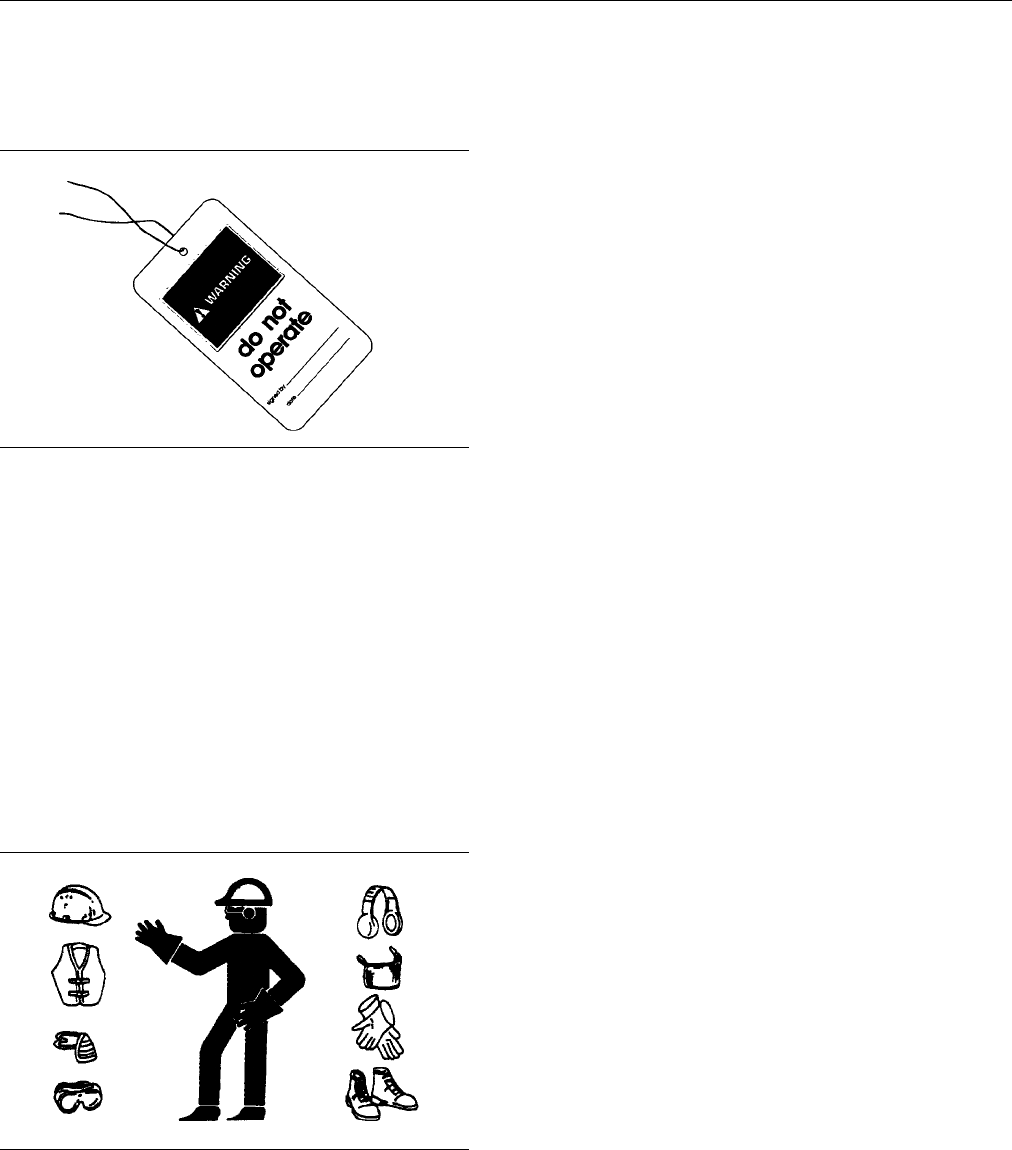

g00104545
Illustration 5
Attach a “Do Not Operate” warning tag or a similar
warning tag to the start switch or to the controls
before you service the equipment or before you
repair the equipment. These warning tags (Special
Instruction, SEHS7332) are available from your
Caterpillar dealer.
Know the width of your equipment in order to maintain
proper clearance when you operate the equipment
near fences or near boundary obstacles.
Be aware of high voltage power lines and power
cables that are buried. If the machine comes in
contact with these hazards, serious injury or death
may occur from electrocution.
g00702020
Illustration 6
Wear a ha
rd hat, protective glasses, and other
protective equipment, as required.
Do not we
ar loose clothing or jewelry that can snag
on controls or on other parts of the equipment.
Make sur
e that all protective guards and all covers
are secured in place on the equipment.
Keep the equipm
ent free from foreign material.
Remove debris, oil, tools, and other items from the
deck, from walkways, and from steps.
Secure all loose items such as lunch boxes, tools,
and other items that are not a part of the equipment.
Know the appropriate work site hand signals and
the personnel that are authorized to give the hand
signals. Acc
ept hand signals from one person only.
Do not smoke when you service an air conditioner.
Also, do not s
moke if refrigerant gas may be present.
Inhaling the fumes that are released from a flame that
contacts air conditioner refrigerant can cause bodily
harm or death
. Inhaling gas from air conditioner
refrigerant through a lighted cigarette can cause
bodily harm or death.
Never put maintenance fluids into glass containers.
Drain all liquids into a suitable container.
Obey all local regulations for the disposal of liquids.
Use all clea
ning solutions with care. Report all
necessary repairs.
Do not allow
unauthorized personnel on the
equipment.
Unless you
are instructed otherwise, perform
maintenance with the equipment in the servicing
position. Refer to Operation and Maintenance Manual
for the pro
cedure for placing the equipment in the
servicing position.
Pressurized Air and Water
Pressuri
zed air and/or water can cause debris
and/or hot water to be blown out. This could result in
personal injury.
When pressurized air and/or pressurized water is
used for cleaning, wear protective clothing, protective
shoes, an
d eye protection. Eye protection includes
goggles or a protective face shield.
The maxim
um air pressure for cleaning purposes
must be reduced to 205 kPa (30 psi) when the
nozzle is deadheaded and the nozzle is used with
an effec
tive chip deflector and personal protective
equipment. The maximum water pressure for
cleaning purposes must be below 275 kPa (40 psi).
