247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 85

Operation and Maintenance Manual
SEBU7494-06 85
Operation Section
Towing Information
Towing Information
i01821491
Towing t he Mac hine
SMCS Code: 7000
If the machin
e is disabled, the machine should be
lifted onto a trailer in order to be transported. Refer
to Operation and Maintenance Manual, “Lifting and
TyingDownth
e Machine” for the lifting procedure.
Retrieval of
Machine
If the machine cannot be lifted, use the following
guidelines i
n order to retrieve the machine.

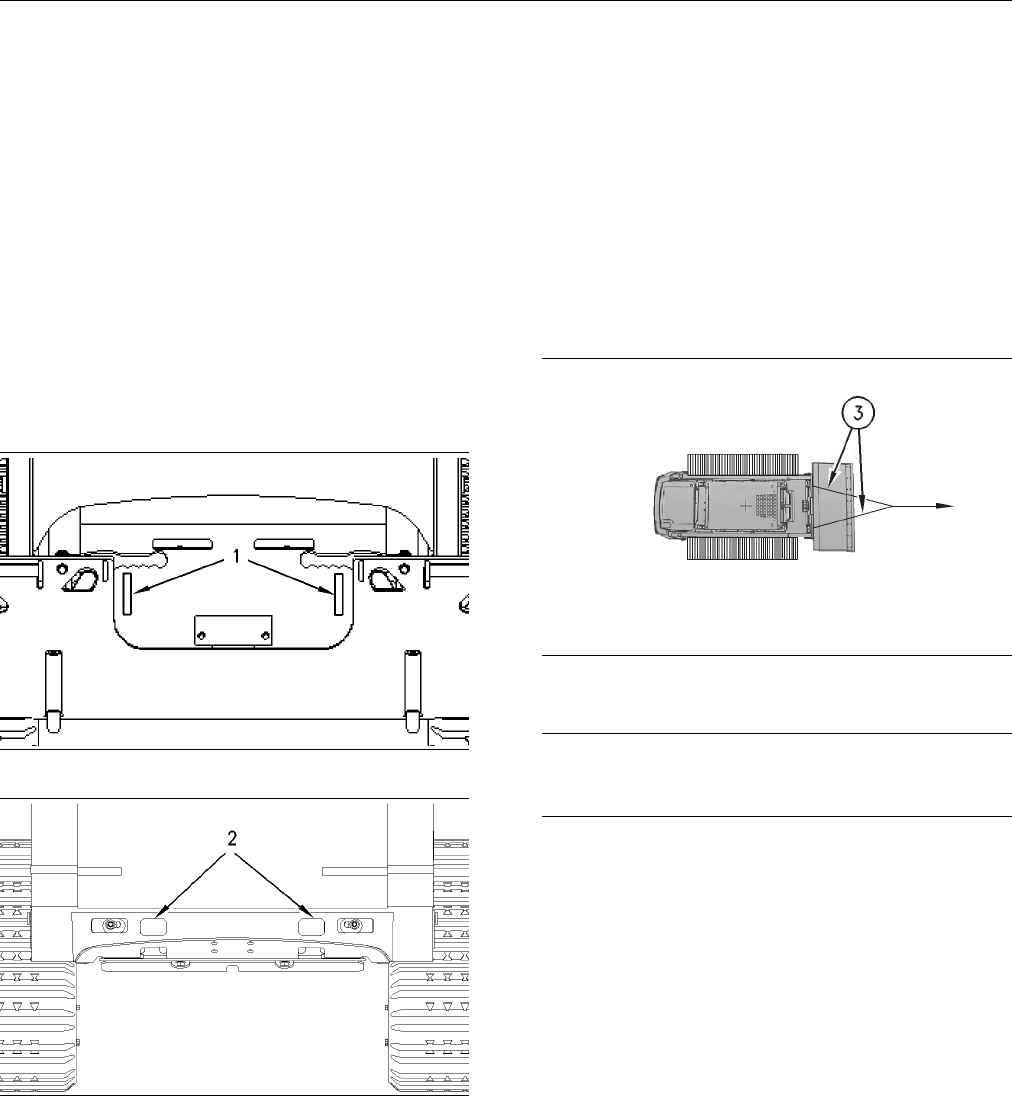

g00929955
Illustration 73
g00930014
Illustration 74
•
The strength of the line should be at least 1.5 times
the gross weight of the machine.
•
Provide shielding in order to protect the operator
if the line breaks.
•
Attach the line
tothetowingeyes.Twotowingeyes
(1) are located on the front of the machine and
two towing eyes (2) are located on the rear of the
machine. Do no
t attach the line to any other point
on the machine. Do not attach the line to only one
towing eye when you are retrieving the machine.
•
If a single line is used to pull the machine, then the
line must be a minimum of 3 m (10 ft). If two lines
areusedtopu
llthemachine,theneachlinemust
be a minimum of 1.5 m (5.0 ft).
•
Do not exceed
a maximum pull angle of 20 degrees
in any direction.
g00777765
Illustration 75
Each of the lines (3) m ust be a m inimum of 1.5 m (5.0 ft).
NOTICE
Do not drag the machine for long distances. Damage
to the trac
ks and to the machine may occur.
