247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 53

Operation and Maintenance Manual
SEBU7494-06 53
Operation Section
Before Operation

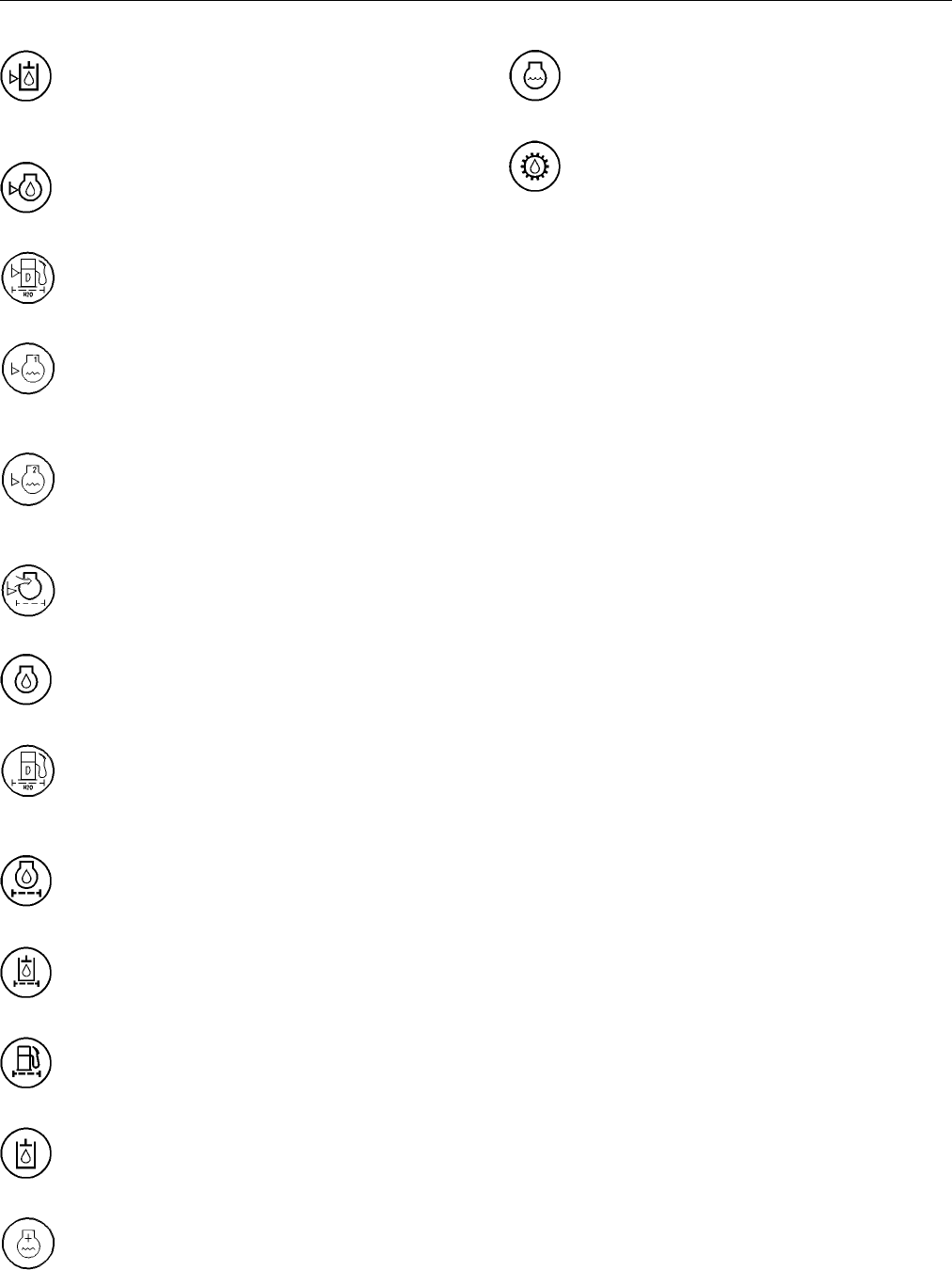

Hydraulic oil level check – Check the
hydraulic oil level at the sight gauge after
every ten serv
ice hours or at the end of
each day.
Engine oil level check – Check the engine
oil level afte
r every ten service hours or at
the end of each day.
Fuel system water separator – Drain
the water sepa
rator after every ten service
hours or at the end of each day.
Coolant level (radiator) – Check the
coolant level
in the radiator at the sight
gauge after every ten service hours or at
the end of each day.
Coolant leve
l (reservoir) – Check the
coolant level in the coolant reservoir after
every ten service hours or at the end of
each day.
Engine Air Filter Service Indicator –
Check the indicator after every ten service
hours or at th
e end of each day.
Engine oil – Change the engine oil after
every 500 service hours or every three
months.
Fuel System Water Separator Element –
Replace the fuel system water separator
element aft
er every 500 service hours or
every three months.
Engine oil filter – Change the engine oil
filter afte
r every 500 service hours or every
three months.
Hydraulic oil filter – Change the hydraulic
oil filter a
fter every 500 service hours or
every three months.
Diesel fuel filter – Change the fuel filter
after every
500 service hours or every three
months.
Hydraulic oil – Change the hydraulic oil
after every
1000 service hours or one time
per year.
Coolant additive – Add the extender to
the extende
d life coolant after every 3000
service hours or every 2 years.
Cooling system coolant – Change the
ELC (Extended Life Coolant) after every
6000 hours or e
very 4 years.
Bogie o il level check and Idler oil level
check – Check the oil level in the Bogie
wheel tubes an
d the Idler wheel tubes after
every 1000 hours or every year.
