247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 59

Operation and Maintenance Manual
SEBU7494-06 59
Operation Section
Machine Operation

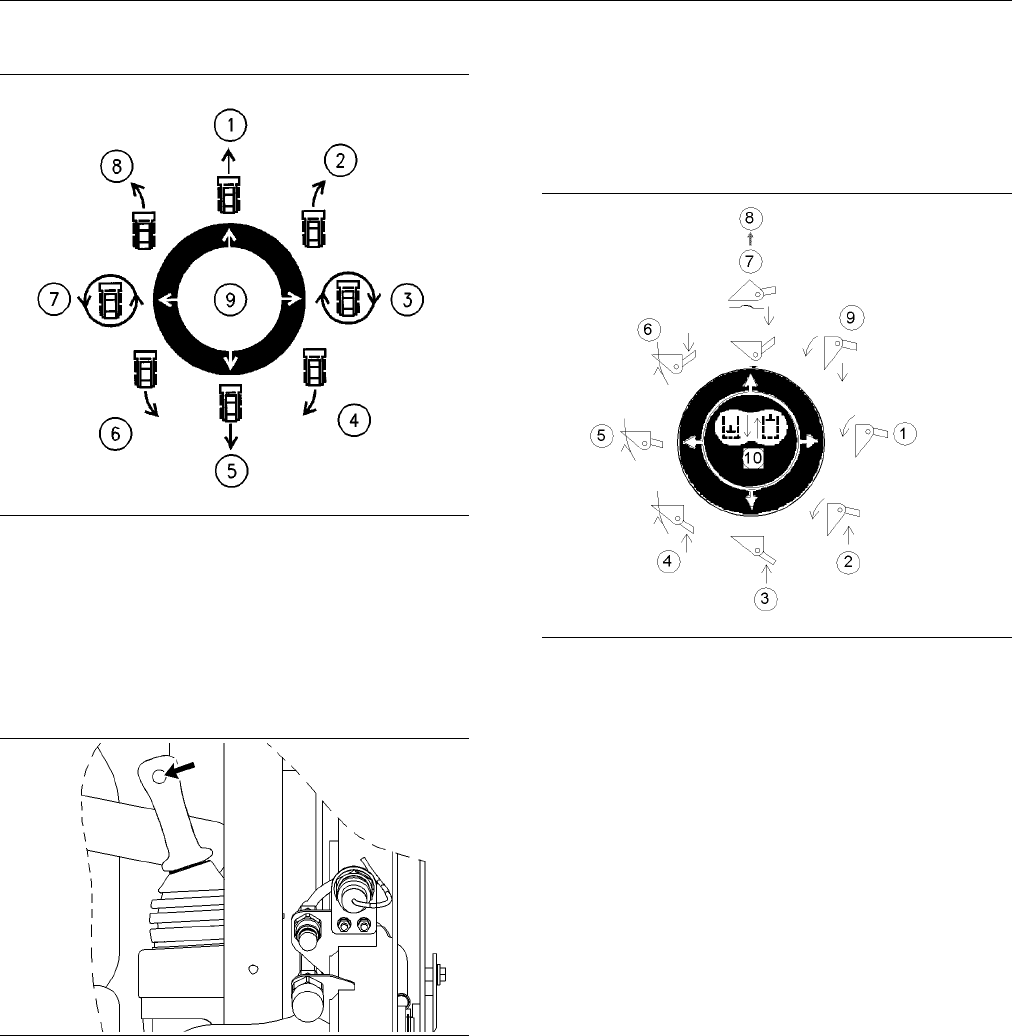

Speed a nd Direction Control (8)
g00741590
Illustration 36
(1) FORWARD
(2) RIGHT TURN
(3) RIGHT SPOT TURN
(4) RE VERSE LEF T TURN
(5) REVERS E
(6) REV ERSE R IGH T TURN
(7) LEFT SPOT TURN
(8) LEFT TURN
(9) HOLD
g00897879
Illustration 37
Two Speed – Press the switch on the front of the
joystick in order to activate rabbit mode.
Note: Keep the work tool close to the ground when
you travel in rabbit mode. This will maximize the
stability of the machine.
Note: The backup alarm will sound when you travel
in reverse.
When you releas
e the joystick from any position,
the joystick will return to the HOLD position (9). The
machinewillstopmovingwhenthejoystickisinthe
HOLD position
.
Work Tool Cont
rol (9)
g01080546
Illustration 38
(1) TILT FORWARD
(2) TILT FORWARD and RAISE
(3) R AISE
(4) T ILT BA CK and RAISE
(5) T ILT B AC K
(6) T ILT BACK and LOWE R
(7) LOWER
(8) FLOAT
(9) T ILT FORWARD and LOWE R
(10) HOL D
When you release the joystick the joystick will return
to the HOLD position (9). The work tool and loader
arms will stop moving when the joystick is in the
HOLD position.
Note: If the joystick is in the FLOAT detent, the
joystick must be pulled out of the FLOAT position in
order for the joystick to return to the HOLD position.
