Alert Indicato rs
SMCS Code: 7450; 7451

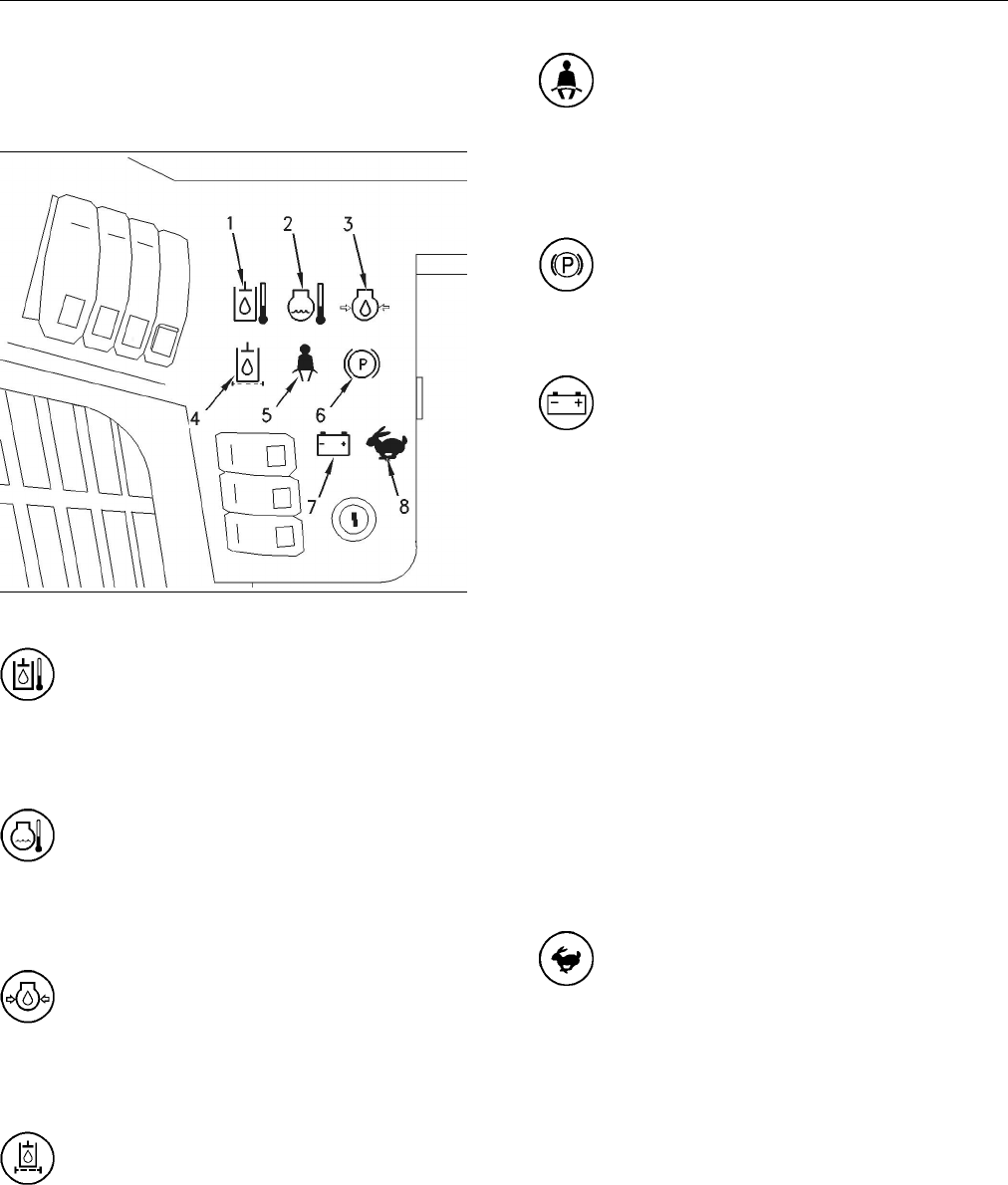

g00846559
Illustration 45
Hydraulic Oil Temperature (1) – The
alert indicator will light and an audible alert
will sound when the temperature of the
hydraulic oil is too high. If this indicator comes on,
stop the machine immediately. Stop the engine and
investigate the problem.
Engine Coolant (2) – The alert indicator
will light and an audible alert will sound
when the engine coolant temperature is too
high. If this alert indicator comes on, stop the machine
immediately. Stop the engine and investigate the
cause.
Engine Oil Pressure (3) – The alert
indicator will light and an audible alert will
sound when the engine oil pressure is low.
If this alert indicator comes on, stop the machine
immediately. Stop the engine and investigate the
cause.
Hydraulic Oil Filter (4) – The indicator
will light when the hydraulic oil filter is not
functioning properly. Stop the machine and
replace the oil filter. The indicator will stay on until
the hydraulic oil has warmed up. Do not operate the
machine until the light turns off.
Seat and Armrest (5) – The alert indicator
will light when the armrest is in the RAISED
position. The
alert indicator will light when
the operator gets out of the operator seat. The alert
indicator should go out when the operator is in the
operator sea
t and the armrest is in the LOWERED
position.
Parking Brake (6) – The alert indicator will
light when th
e parking brake is engaged.
The alert indicator should come on during
start-up. The alert indicator should go out when the
parking bra
ke is disengaged.
Charging System (7) – The alert indicator
will light if there is a malfunction in the
electrical
system. If this alert indicator
comes on, the system voltage is too high for normal
machine operation or too low for normal machine
operation.
If electrical loads are high and the engine speed is
near low idle, increase the engine speed to high idle.
This w ill ge
nerate more output from the alternator. If
the alert indicator for the electrical system turns off
within one minute, the electrical system is probably
operating
in a normal manner. However, the electrical
system may be overloaded during periods of low
engine speeds.
Increase the engine idle speed with the governor
lever in order to compensate for a higher electrical
load on th
esystem.
If this procedure does not cause the alert indicator to
turn off,
move to a convenient location. Investigate
the cause (loose alternator belt, broken alternator
belt, faulty batteries, etc).
Rabbit Mode (8) (If Equipped) – The
alert indicator will light when rabbit mode is
selecte
d with the two-speed control.
