247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 27

Operation and Maintenance Manual
SEBU7494-06 27
Safety Section
Fire Extinguisher Location
•
Wires are expos
ed.
•
Outer coverings are ballooning.
•
Flexible part of the hoses are kinked.
•
Outer covers h
ave embedded armoring.
•
End fittings are displaced.
Make sure that all clamps, guards, and heat shields
are installed correctly. During machine operation, this
will help to pr
event vibration, rubbing against other
parts, and excessive heat.
i01820946
Fire Extingu
isher Location
SMCS Code: 7000; 7419
Make sure that a fire extinguisher is on the
machine. Make sure that you are familiar with the
operation o
f the fire extinguisher. Inspect the fire
extinguisher and service the fire extinguisher. Obey
the recommendations on the instruction plate.

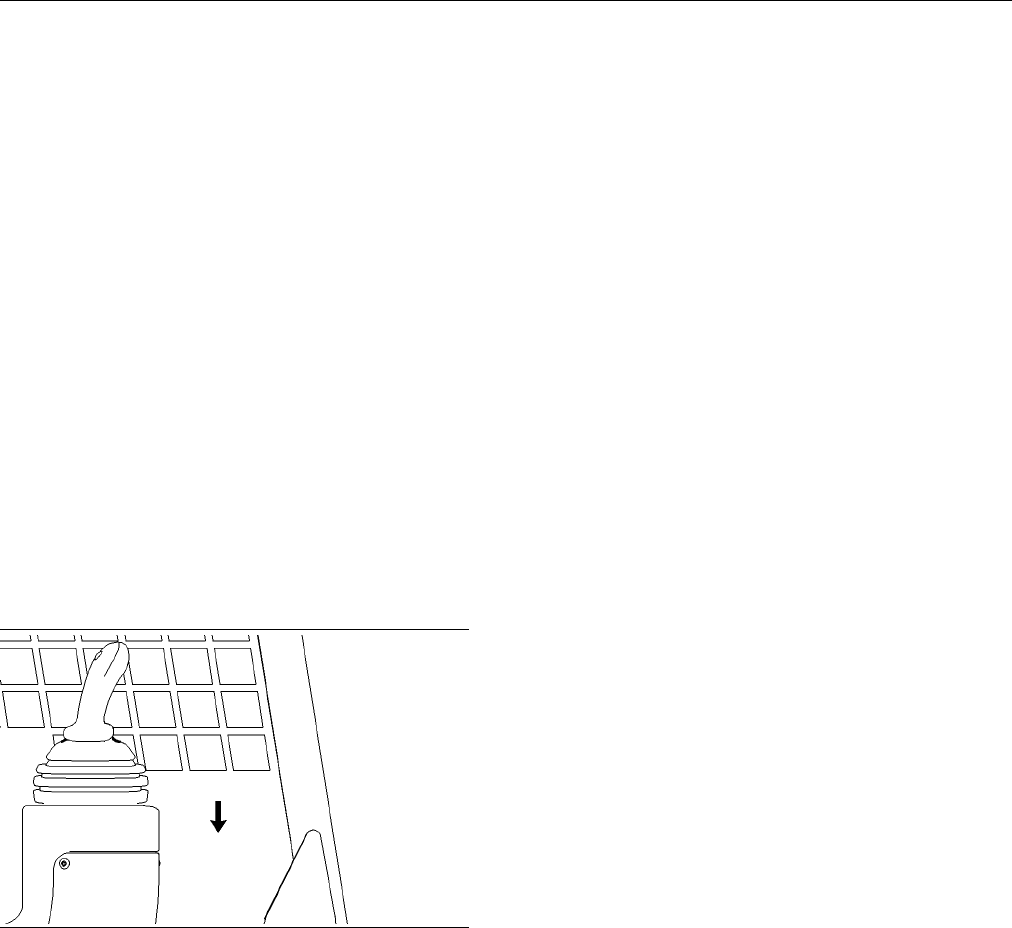

g00929625
Illustra
tion 13
Mount the fire extinguisher on the left side of the cab
floor in f
ront of the console for the speed/direction
control. Consult your Caterpillar dealer for the proper
procedure for mounting the fire extinguisher.
i01122596
Electrical Storm Injury
Prevention
SMCS Code: 7000
When lightning is striking in the vicinity of the
machine, the operator should never attempt the
following procedures:
•
Mount the machine.
•
Dismount the ma
chine.
Ifyouareintheoperator’sstationduringanelectrical
storm, stay in
the operator’s station. If you are on the
ground during an electrical storm, stay away from
the vicinity of the machine.
i00771840
Before Starting Engine
SMCS Code: 1000; 7000
Start the engine only from the operator compartment.
Never short across the starter terminals or across
the batteries. Shorting could damage the electrical
system by bypassing the engine neutral start system.
Inspect the condition of the seat belt and of the
mounting hardware. Replace any parts that are worn
or damaged. Regardless of appearance, replace the
seat belt after three years of use. Do not use a seat
belt extension on a retractable seat belt.
Adjust the seat so that full pedal travel can be
achieved with the operator’s back against the back
of the seat.
Make sure that the machine is equipped with a
lighting system that is adequate for the job conditions.
Make sure that all machine lights are working
properly.
Before you start the engine and before you move the
machine, make sure that no one is underneath the
machine, around the machine, or on the machine.
Make sure that the area is free of personnel.
i01027818
Engine Starting
SMCS Code: 1000; 7000
If a warning tag is attached to the start switch or to
the controls, do not start the engine. Also, do not
move any controls.
Move all hydraulic controls to the HOLD position
before you start the engine.
Diesel engine exhaust contains products of
combustion which can be harmful to your health.
Always start the engine in a well ventilated area.
Always operate the engine in a well ventilated area.
If you are in an enclosed area, vent the exhaust to
the outside.
