247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 143

Operation and Maintenance Manual
SEBU7494-06 143
Maintenance Section
Window Wiper - Inspect/Replace

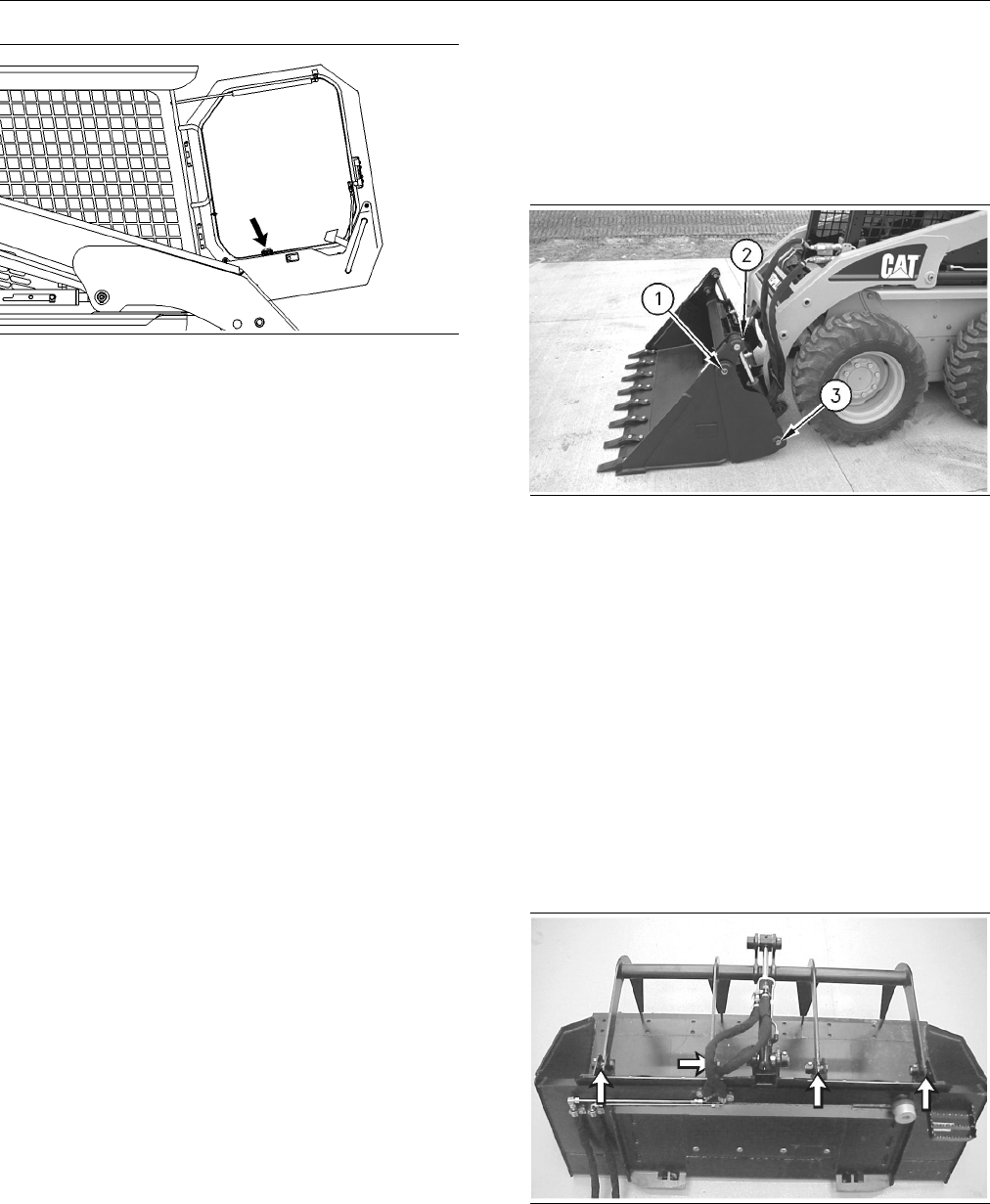

g00925106
Illustration 196
Fill the reservoir with window washer solvent.
i01085034
Window Wiper -
Inspect/Replace
(If Equipped)
SMCS Code : 7305-040; 7305-510
Inspect the condition of the windshield wiper blade.
Replace the windshield wiper blade if the windshield
wiper blade is worn or damaged. If the window wiper
blade streaks the window, replace the window wiper
blade.
i01037044
Windows - Clean
(If Equipped)
SMCS Code: 7310-070
Use commercially available window cleaning
solutions in order to clean the windows. Clean the
outside of the windows from the ground unless
handholds are available.
i02107645
Work To ol - Lu bricate
SMCS Code: 6700-086
Multipurpose Bucket
g00534457
Illustrati
on 197
Apply lubricant to the grease fitting (1) for the pivot
pin of the ap
ron.
Apply lubricant to the grease fitting (2) for the rod end
of the multi
purpose bucket cylinder.
Apply lubricant to the grease fitting (3) for the head
end of the mu
ltipurpose bucket cylinder.
Repeat for the other side of the bucket.
There are six grease fittings.
Utility Grapple Bucket and Utility
Grapple Fo
rk
g006479
80
Illustration 198
Apply lubricant to the four grease fittings for the
grapples.
