"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 14

Service Training Meeting Guide

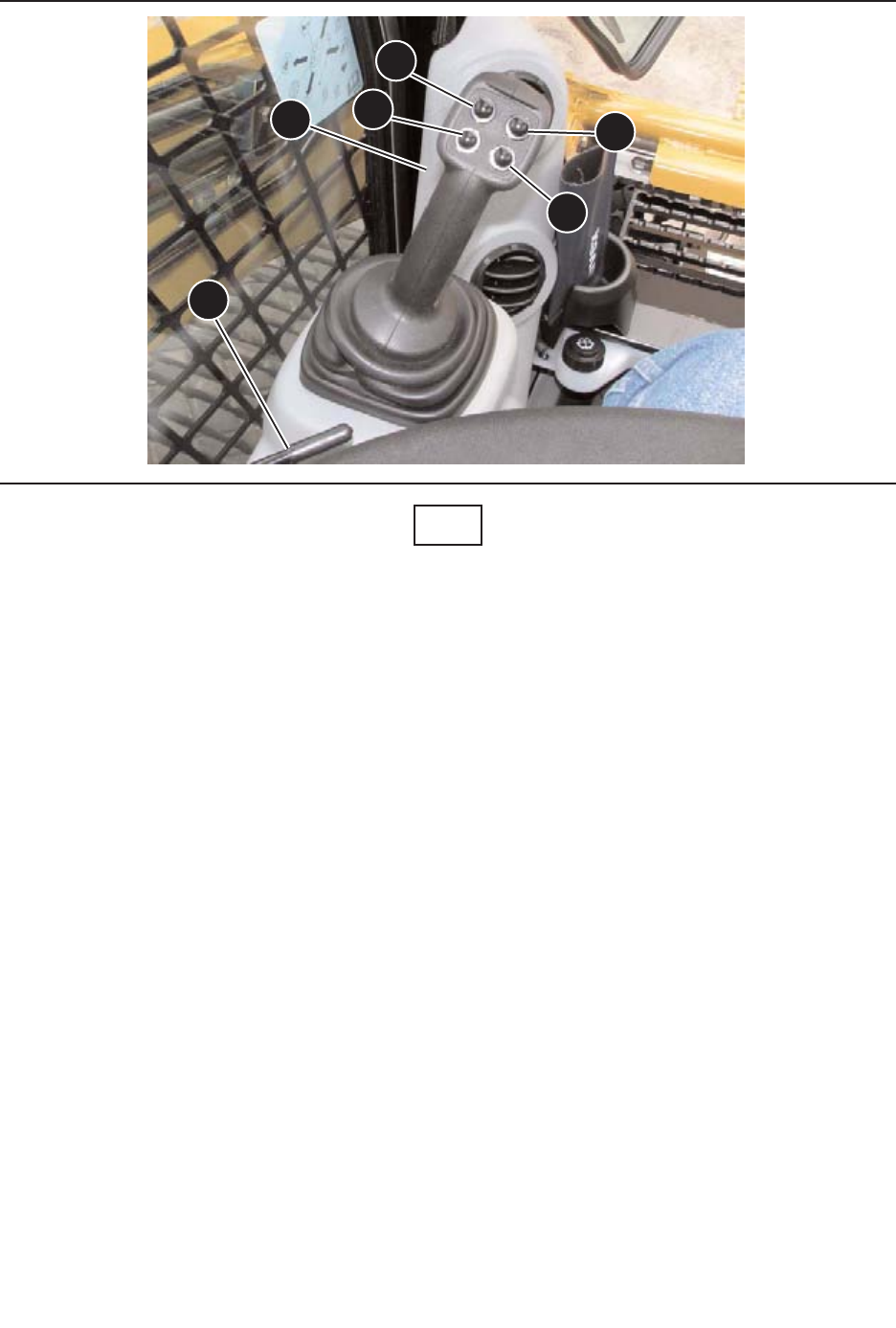

The left and right joysticks are adjustable fore / aft independently from the seat. The joystick
adjustment lever (1) is located to the rear of the joystick. Additionally the joystick pods are seat
mounted, which provides for greater controllability over rough terrain.
In the standard control lever pattern, the left joystick (2) provides directional control and has
the same function as previous models. The switches on the left joystick are:
- horn (3)
- auxiliary electrical control "C1" (4)
- auxiliary electrical control "C2" (5)
- continuous flow control (6)
The trigger switch (not visible) located on the front side of joystick is used to control the
two-speed function or the auxiliary electrical function "AUX 7." The multifunction switch on
the left overhead console determines the functionality of the trigger switch.
9
SERV1833-01 - 14 - Text Reference
07/08
1
2
3
4
5
6
