"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 76

Service Training Meeting Guide
75

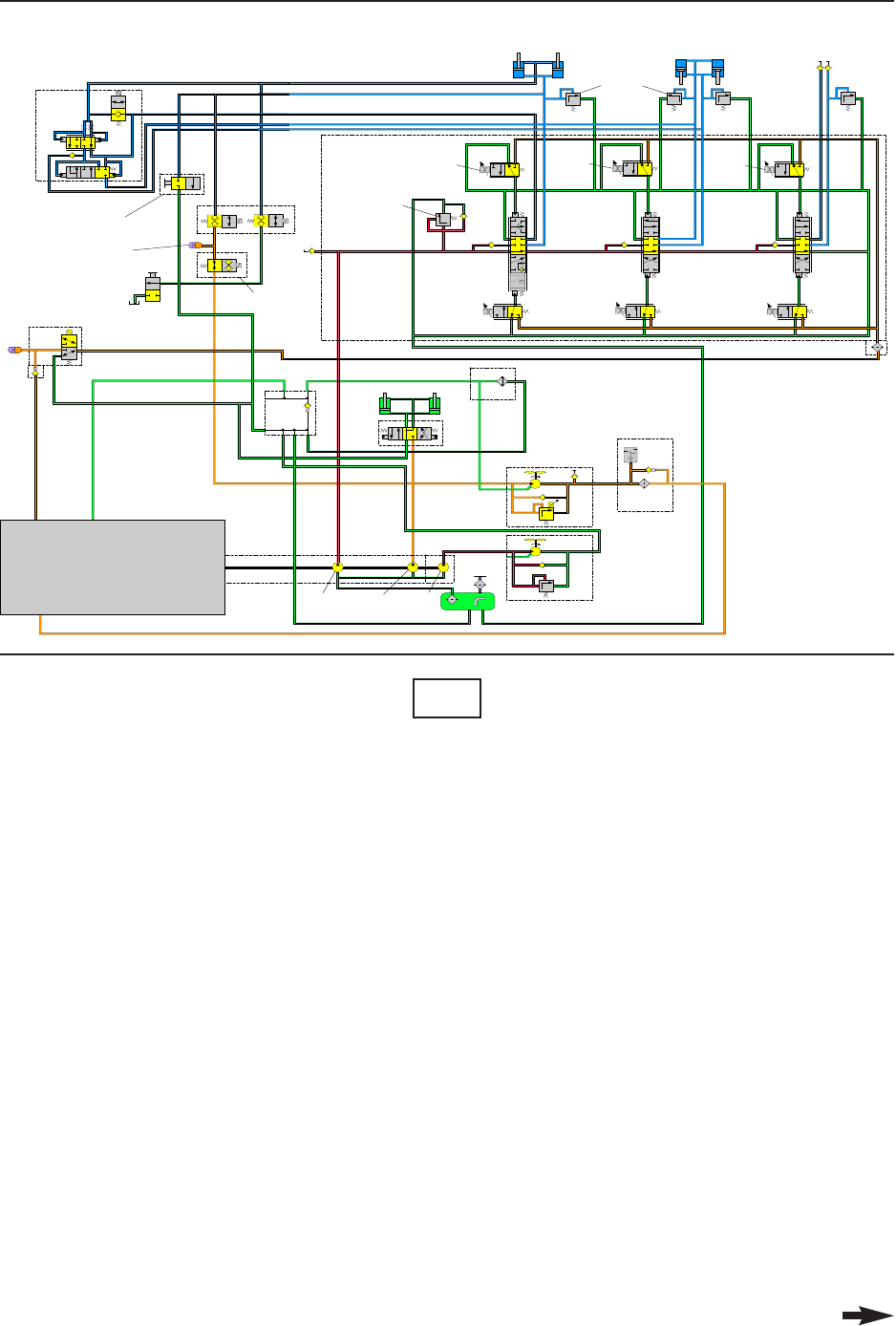

This illustration shows the work tool hydraulic system in the HOLD position.
The "C" Series machines are equipped with an open-center work tool hydraulic system the
same as the "B" Series machines. However, the lift, tilt, and auxiliary functions are now
electro-hydraulically controlled, the same as the auxiliary functions were on the "B" Series
machines.
The work tool hydraulic system consists of a tank, a fixed displacement pump, a control valve
group, two lift cylinders, two tilt cylinders, and an auxiliary work tool. The work tool control
valves are in parallel as to pump flow. The work tool hydraulic system shares a hydraulic tank,
an oil filter, and an oil cooler with the hydrostatic drive system.
The lift, tilt, and auxiliary valve spools are each controlled by two solenoid valves located in
the work tool control valve group. The hydrostatic drive system charge pump provides pilot oil
to the solenoid valves. The charge relief valve in the hydrostatic pump group limits the
maximum pilot system pressure.
An accumulator provides tilt, dump, and work tool auxiliary lowering capabilities for a limited
time after the engine has been shut down.
SERV1833-01 - 76 - Text Reference
07/08
Lift
Cylinders
Tilt
Cylinders
Cooler
Line Relief
Valves
Auxiliary
Tools
Work Tool
Valve Group
Coupler Cylinders
Coupler
Valve
Diverter Valve
Ball Valve
(Dead Engine Lower)
Ride Control
Accumulator
Ride
Control
Valve
Pilot Supply
Solenoid
Work Tool
Pump
Charge
Pump
ATAAC
Pump
ATAAC Fan Motor
Demand Fan Motor
Hydraulic System
Filter
Hydrostatic Drive Pump Group
Return
Manifold
Line Relief
Valve
Line Relief
Valve
Auxiliary
Control Valve
Tilt
Control
Valve
Main Relief
Valve
Lift
Control
Valve
Lower
Solenoid
Valve
Raise
Solenoid
Valve
Dump
Solenoid
Valve
Aux
Solenoid
Valve
Aux
Solenoid
Valve
Rack Back
Solenoid
Valve
WORK TOOL HYDRAULIC SYSTEM
HOLD
Accumulator
Precharge
Valve
