"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 66

Service Training Meeting Guide
60
WORK TOOL HYDRAULIC SYSTEM
The work tool hydraulic system is now electronically controlled by the Machine ECM through
the lift, tilt, and auxiliary solenoid valves. The joysticks send a signal to the ECM when moved
by the operator. The ECM sends corresponding signals to the solenoid valves, which control
the position of the lift, tilt, and auxiliary directional spools.
The work tool control valve internal hydraulic components are very similar to the "B" Series
machines.
A pilot shutoff solenoid valve replaces the work tool pilot solenoid.
The electronically controlled auxiliary function is the same as the "B" Series machine.
The ride control system is new to the "C" Series machines and operates similar to Caterpillar
wheel loaders.
The work tool self level option is the same as the "B" Series machines.
The XPS High Flow Hydraulic System is now optional on all "C" Series machines.
SERV1833-01 - 66 - Text Reference
07/08
Work Tool
Pump
Hydraulic
Oil Filter
Engine
Demand
Fan Motor
Machine
ECM
Charge
Pump
Continuous Flow Switch
Auxiliary Hydraulic Pressure Release Switch
Ride Control Switch
Hydraulic Lockout Switch
Hydrostatic
Drive Pump
Auxiliary 1 Switch
Joystick Position Signals and Switches
ATAAC
Pump
ATAAC
Fan Motor
Ride
Control
Pilot Supply
Solenoid
Work Tool
Control Valve
Diverter
Valve
Lift Pilot
Solenoids
Tilt Pilot
Solenoids
Aux Pilot
Solenoids

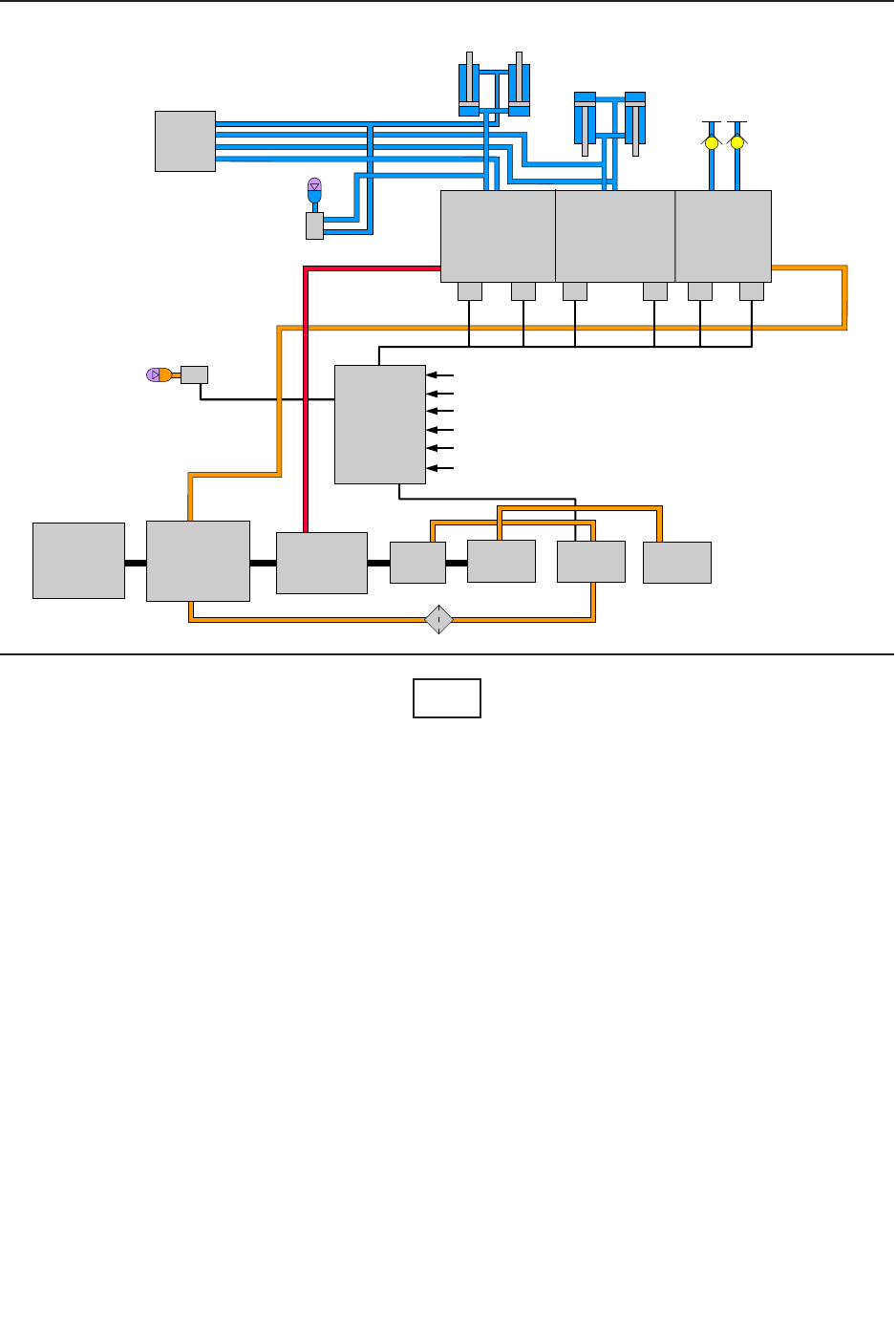

WORK TOOL HYDRAULIC SYSTEM
Lift
Tilt
Auxiliary
