"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 50

Service Training Meeting Guide
48

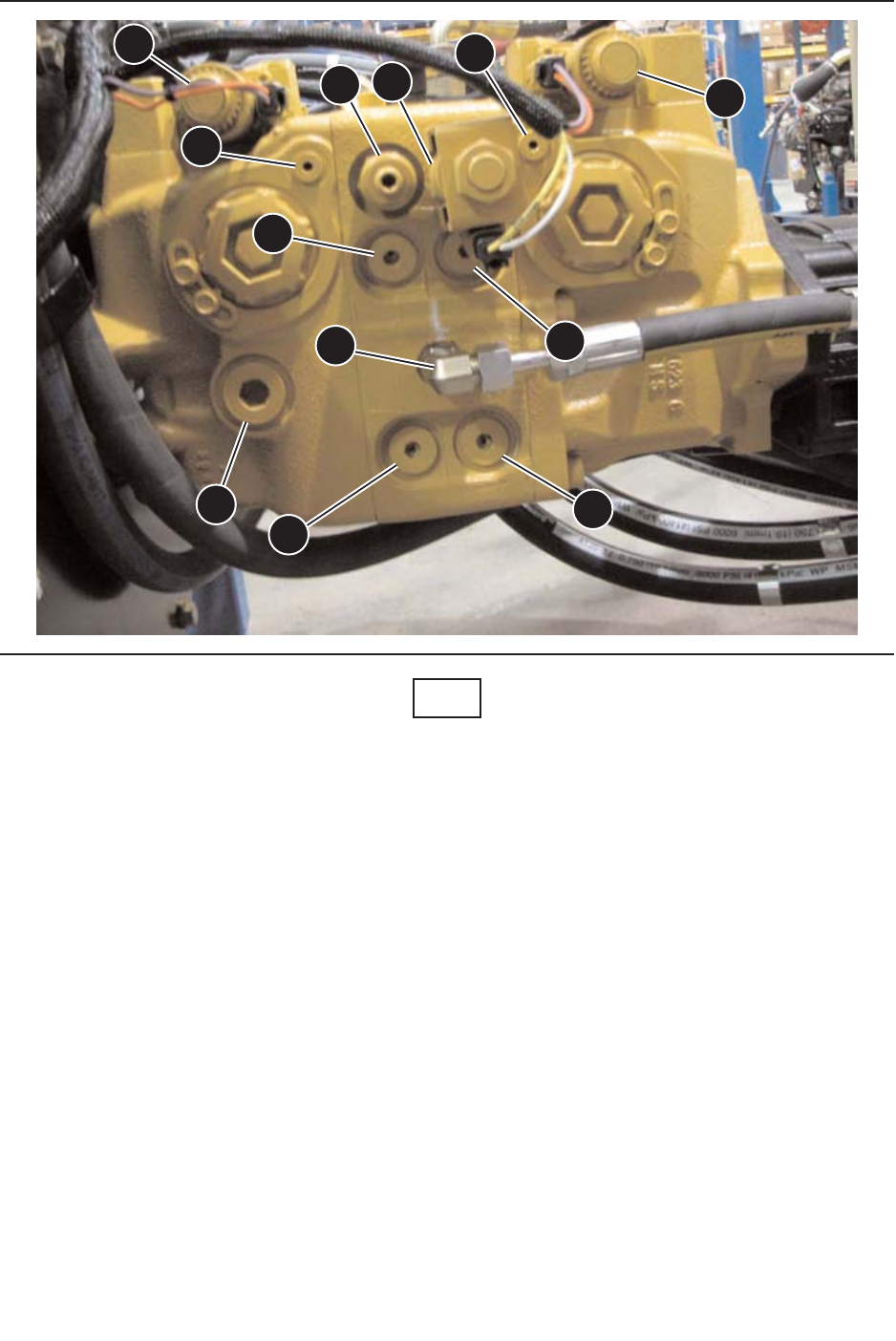

This illustration shows the right side of the hydrostatic pump. From this side of the pump the
following components are visible:
- Left motor reverse pump solenoid (1)
- Left motor servo pressure port (2)
- Right motor servo pressure port (3)
- Right motor reverse pump solenoid (4)
- Right reverse crossover relief and makeup valve (5)
- Pilot ON/OFF solenoid valve (6)
- Charge oil to implement pilot shutoff valve (7)
- Charge relief valve (8)
- Case drain port (9)
- Left reverse crossover relief and makeup valve (10)
- Left forward crossover relief and makeup valve (11)
- Right forward crossover relief and makeup valve (12)
SERV1833-01 - 50 - Text Reference
07/08
1
2
3
4
5
6
9
11
12
7
10
8
